System - Basic Engine Control System

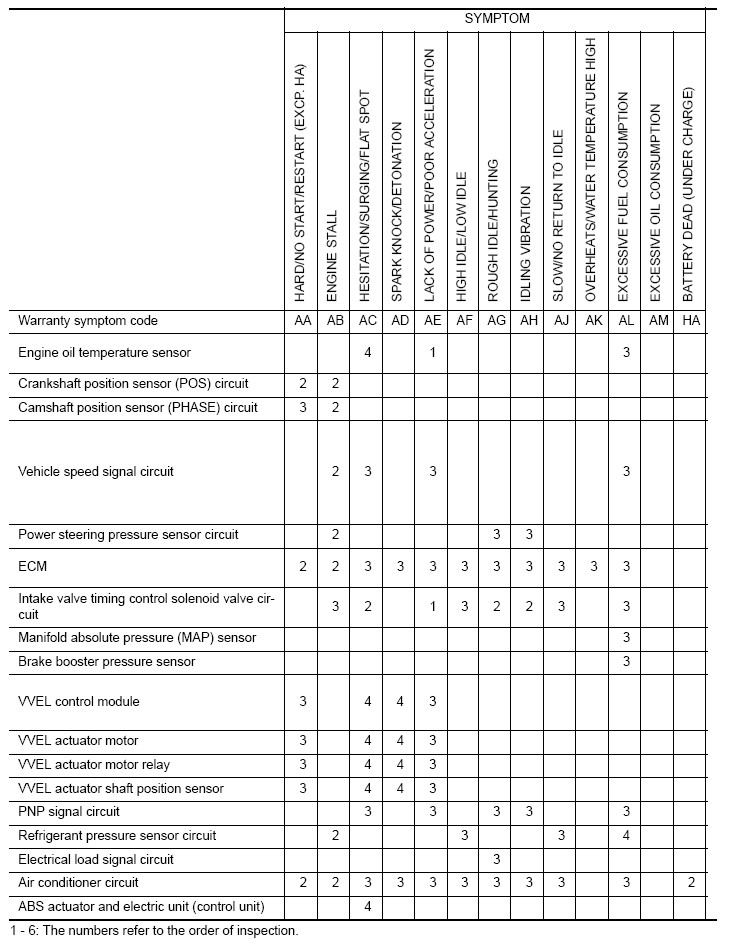

Fig 1: Basic Engine Control System Symptoms Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

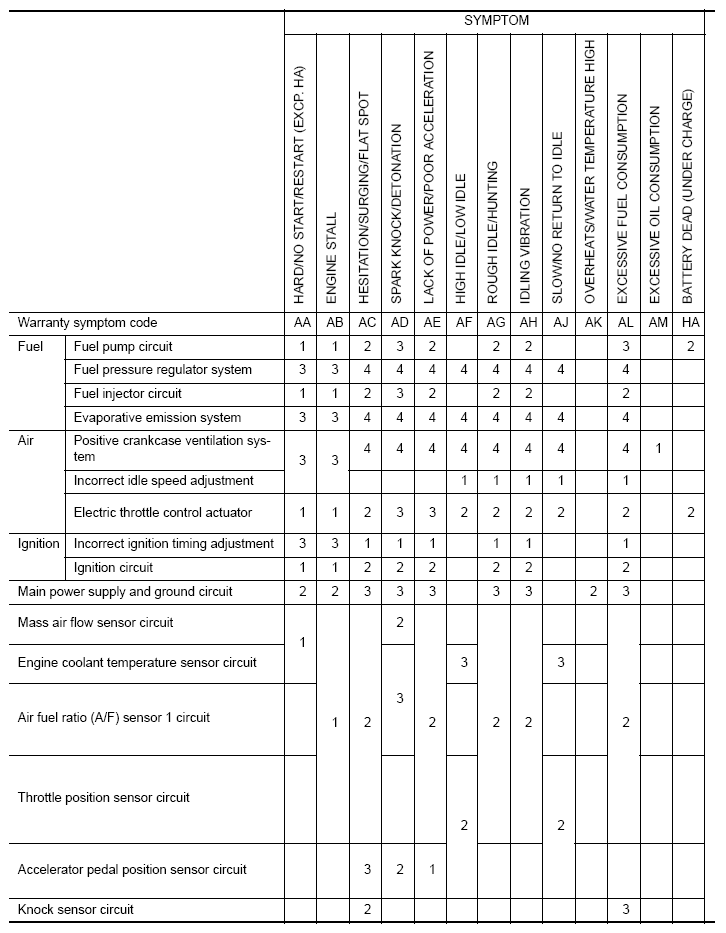

Fig 2: Basic Engine Control System Symptoms Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1 - 6: The numbers refer to the order of inspection.
