Engine Control System (Introduction)
>>
Basic Inspection
>>
Diagnosis And Repair Workflow
>>
Worksheet Sample
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Worksheet Sample

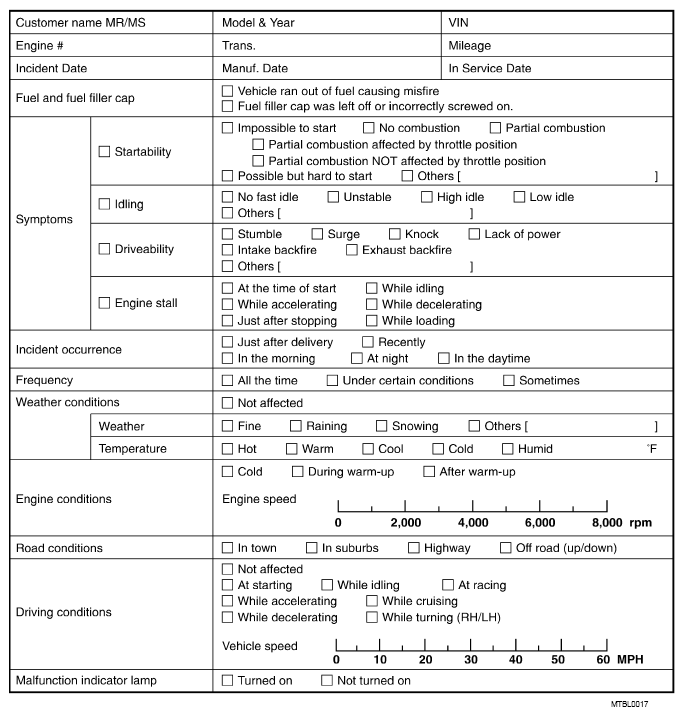

Fig 1: Worksheet Sample
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
