CAN COMMUNICATION SYSTEM: CAN Communication Signal Chart

WARNING: This page is about a different car, the 2012 Infiniti M35h. However, it is still accessible from the selected car via links, so may be relevant.

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

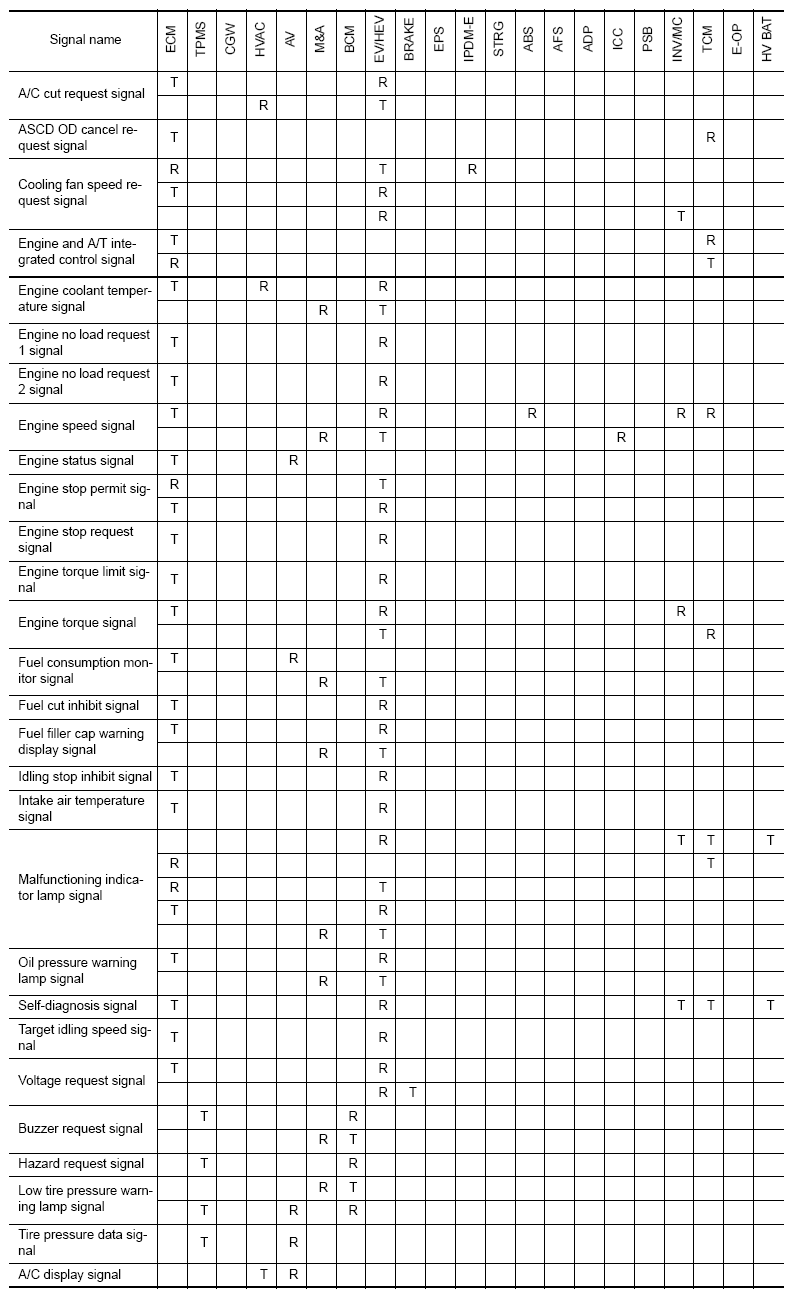

Fig 1: CAN Communication Signal Chart (1 Of 8)

G08252049

Courtesy of NISSAN NORTH AMERICA, INC.

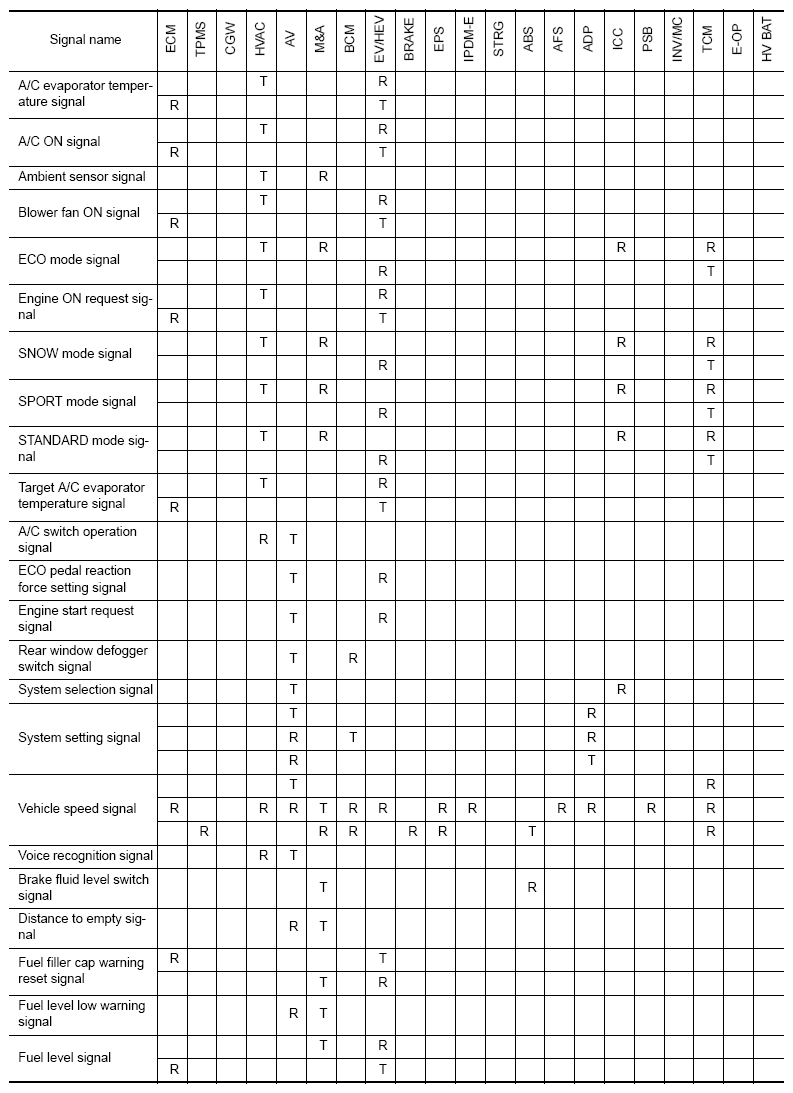

Fig 2: CAN Communication Signal Chart (2 Of 8)

G08252050

Courtesy of NISSAN NORTH AMERICA, INC.

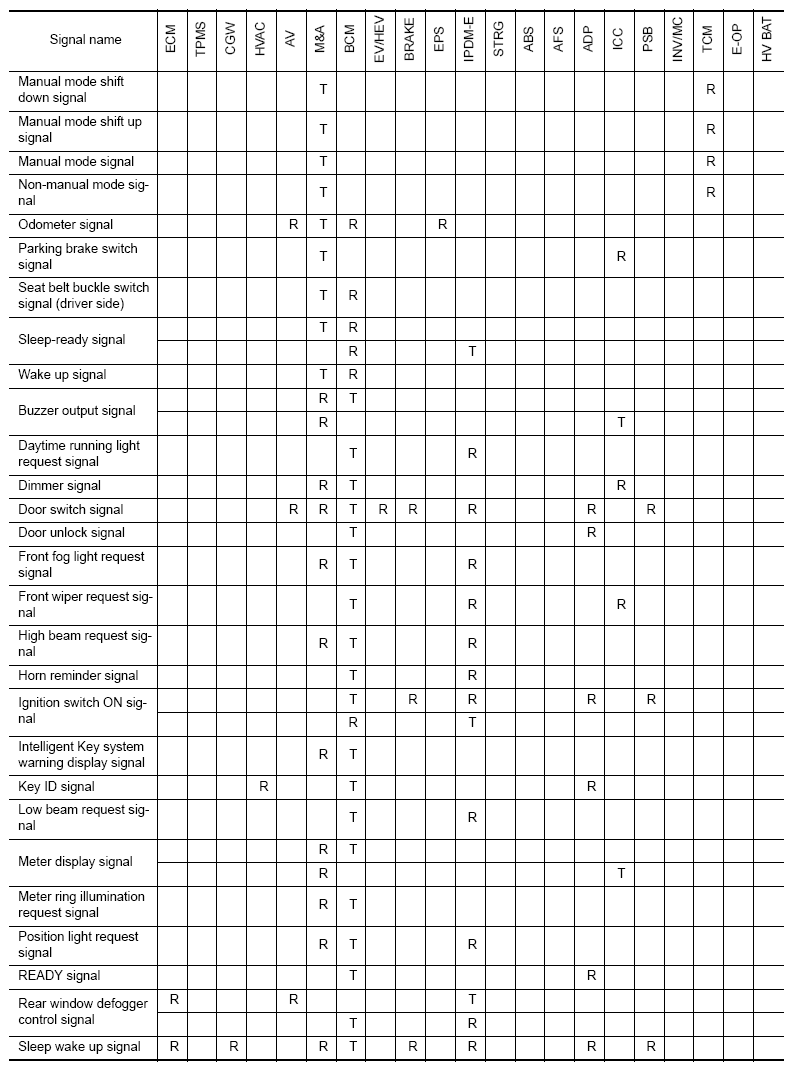

Fig 3: CAN Communication Signal Chart (3 Of 8)

G08252051

Courtesy of NISSAN NORTH AMERICA, INC.

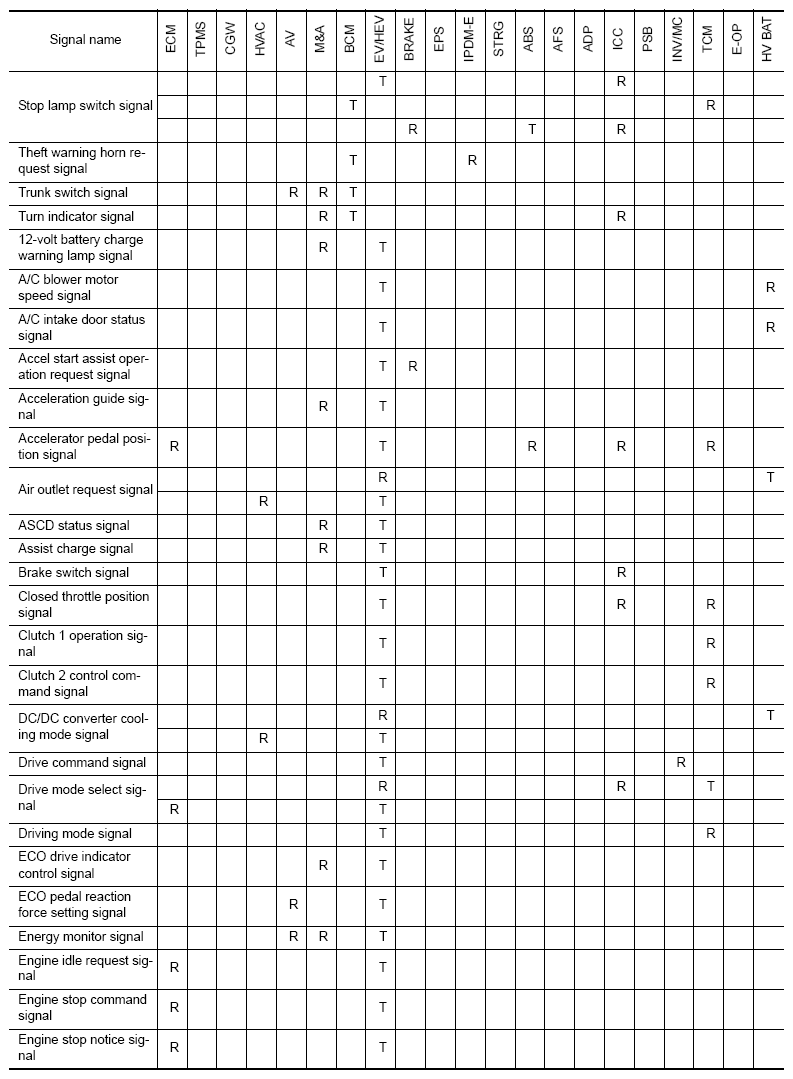

Fig 4: CAN Communication Signal Chart (4 Of 8)

G08252052

Courtesy of NISSAN NORTH AMERICA, INC.

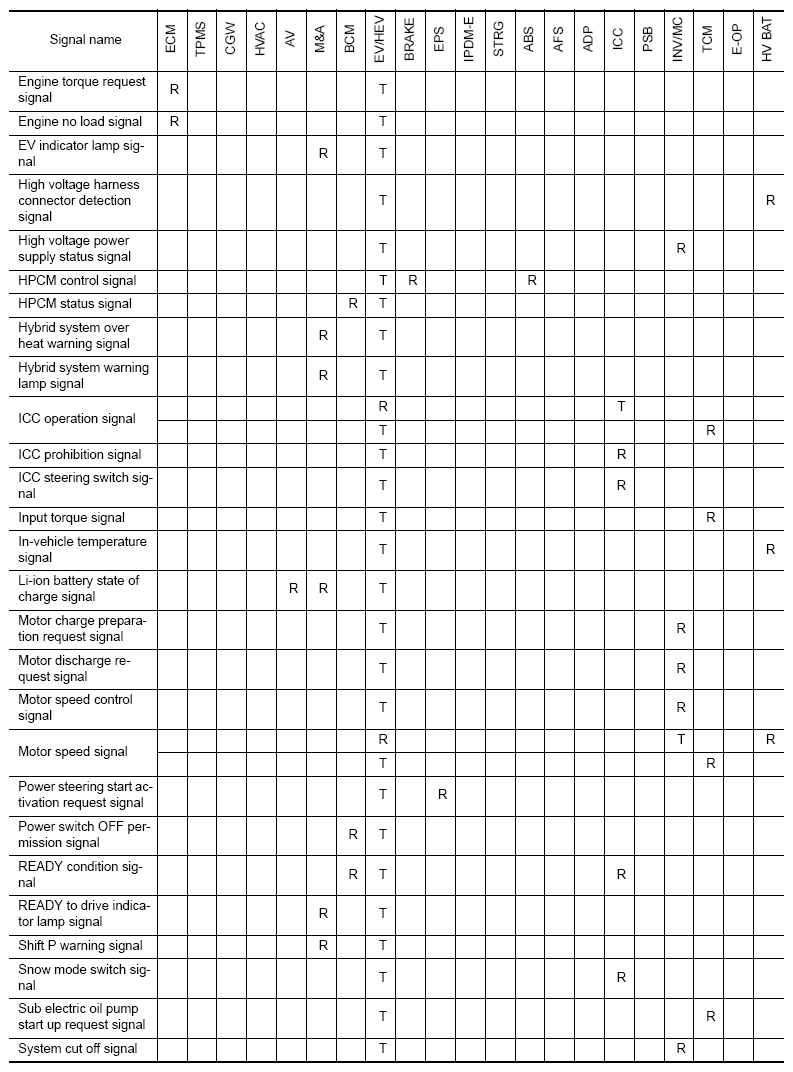

Fig 5: CAN Communication Signal Chart (5 Of 8)

G08252053

Courtesy of NISSAN NORTH AMERICA, INC.

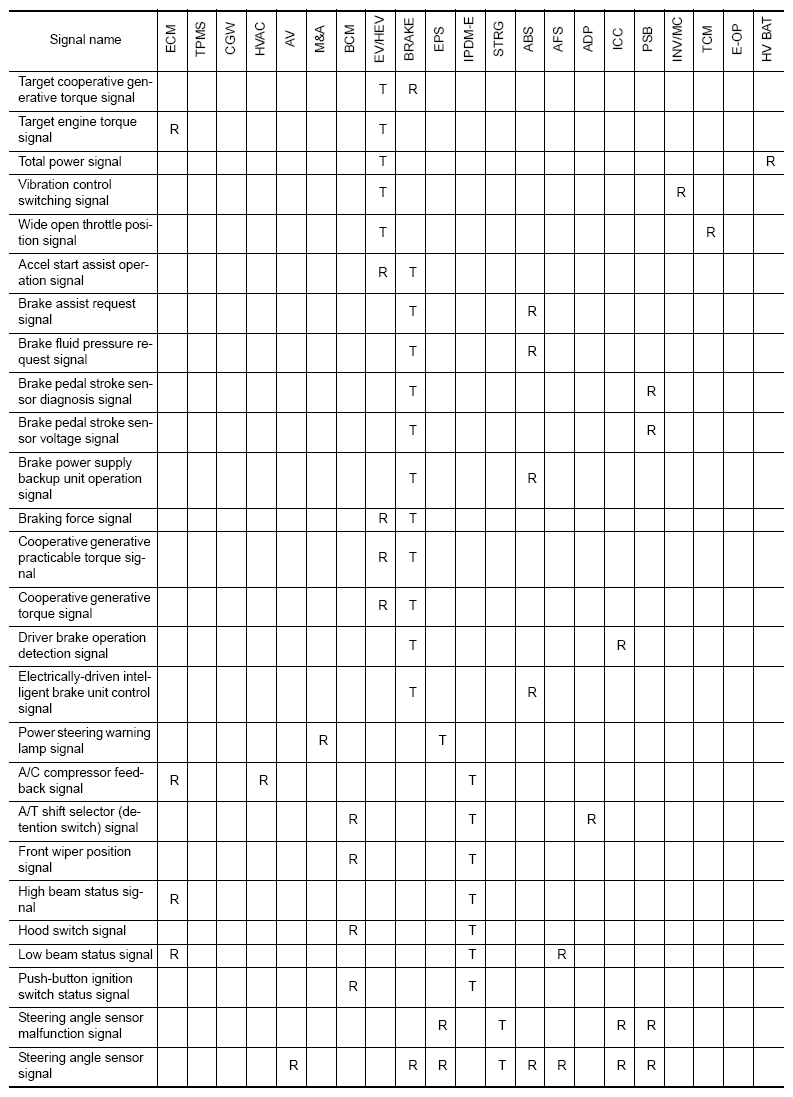

Fig 6: CAN Communication Signal Chart (6 Of 8)

G08252054

Courtesy of NISSAN NORTH AMERICA, INC.

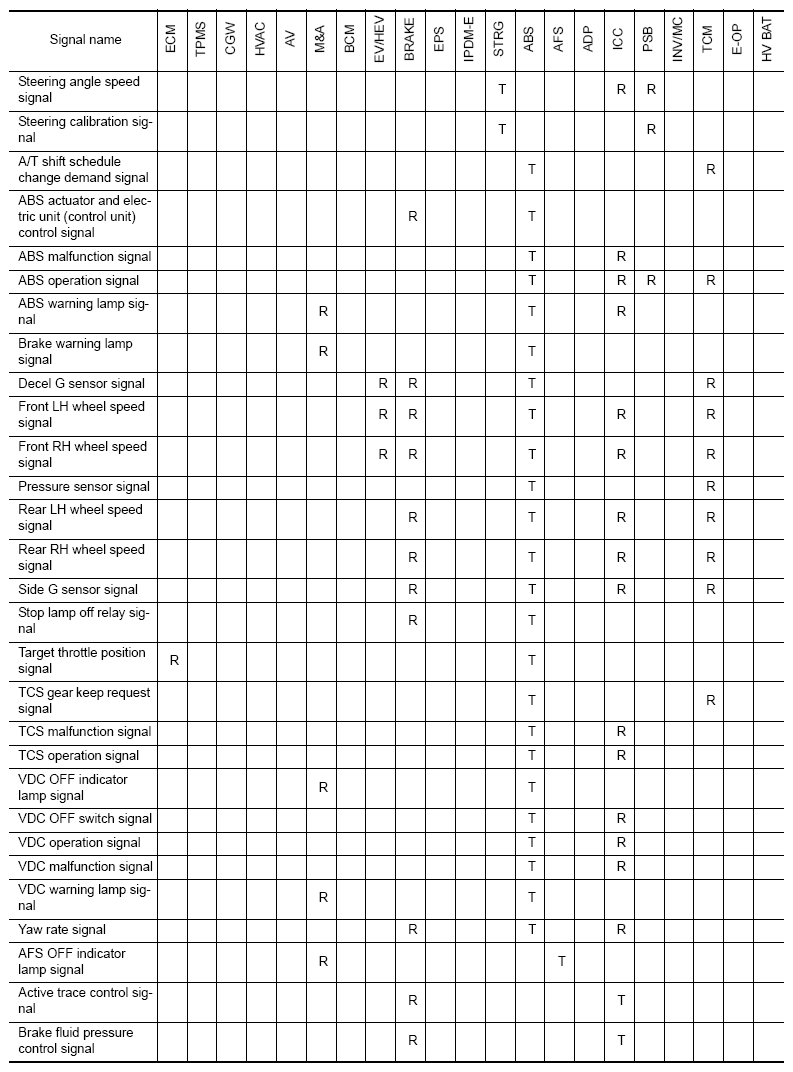

Fig 7: CAN Communication Signal Chart (7 Of 8)

G08252055

Courtesy of NISSAN NORTH AMERICA, INC.

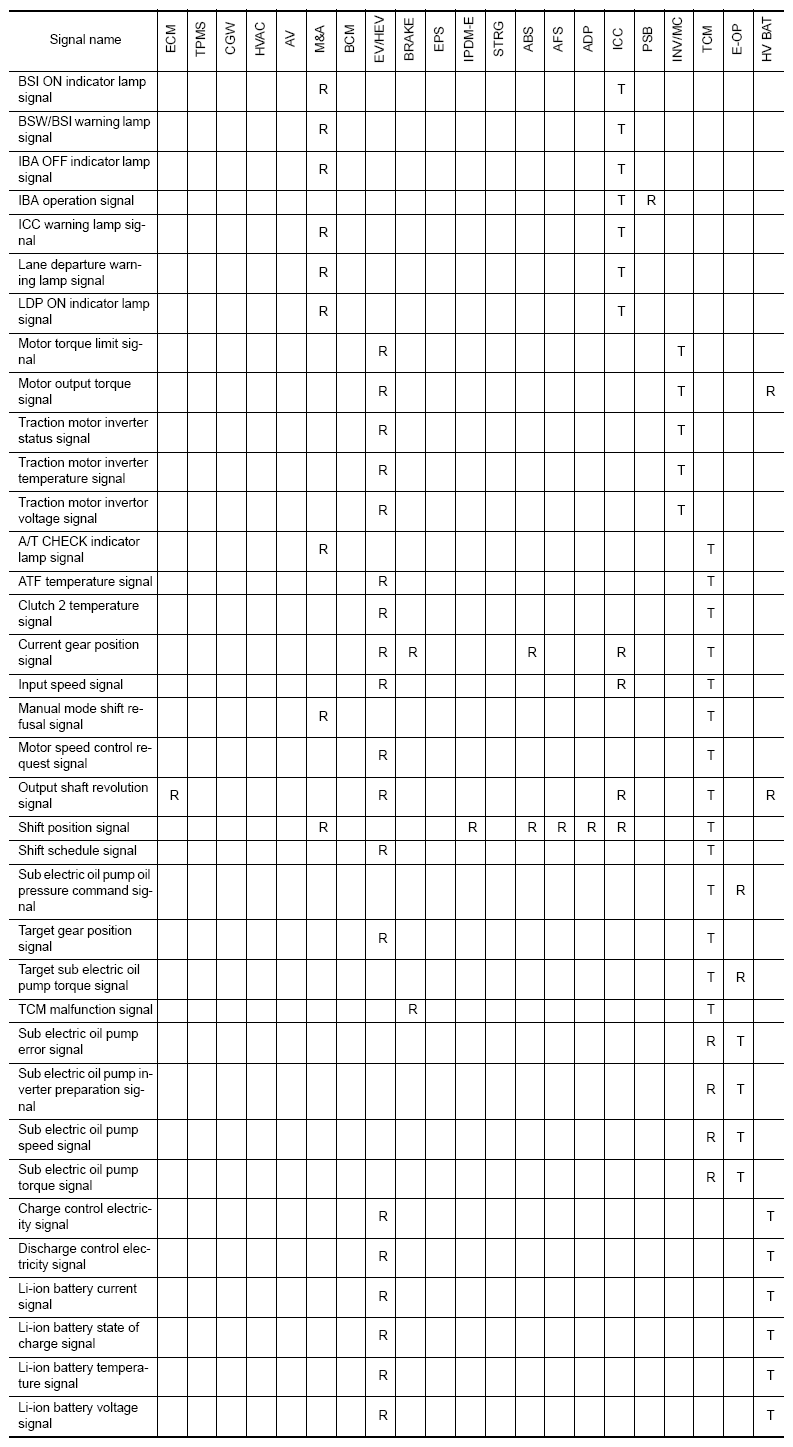

Fig 8: CAN Communication Signal Chart (8 Of 8)

G08252056

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
