Control Rod
>>
Exploded View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Exploded View

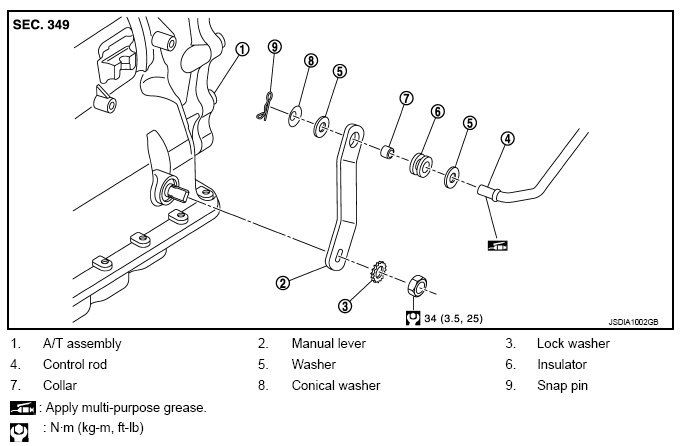

Fig 1: Exploded View Of Control Rod With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
