Exploded View

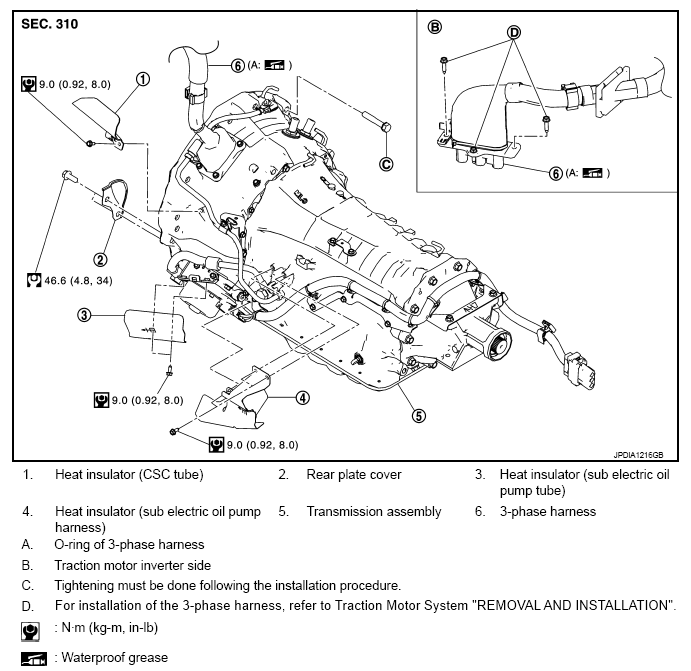

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications
G08900592Courtesy of NISSAN NORTH AMERICA, INC.
