Exploded View

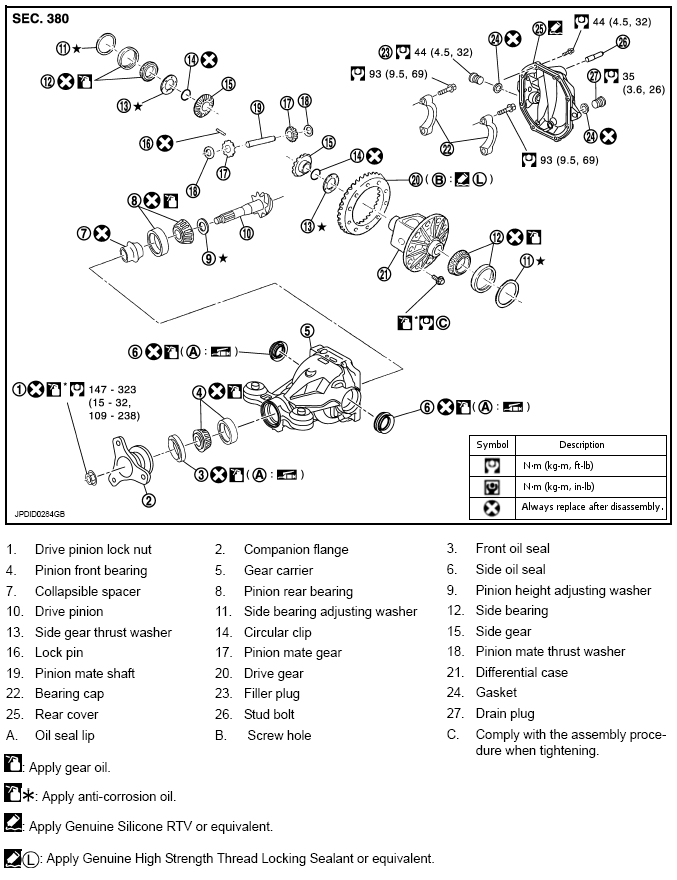

Fig 1: Exploded View Of Differential Assembly With Torque Specifications
G08897501Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
