Data Monitor

NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

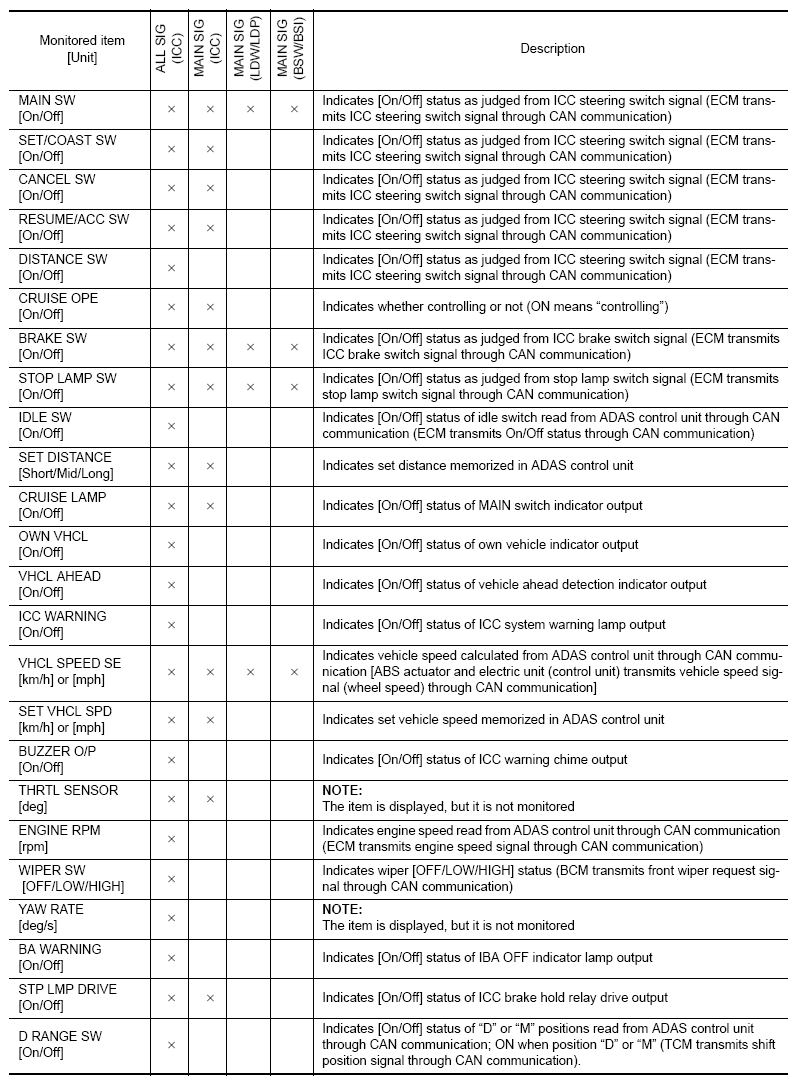

Fig 1: Data Monitor Items Chart (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

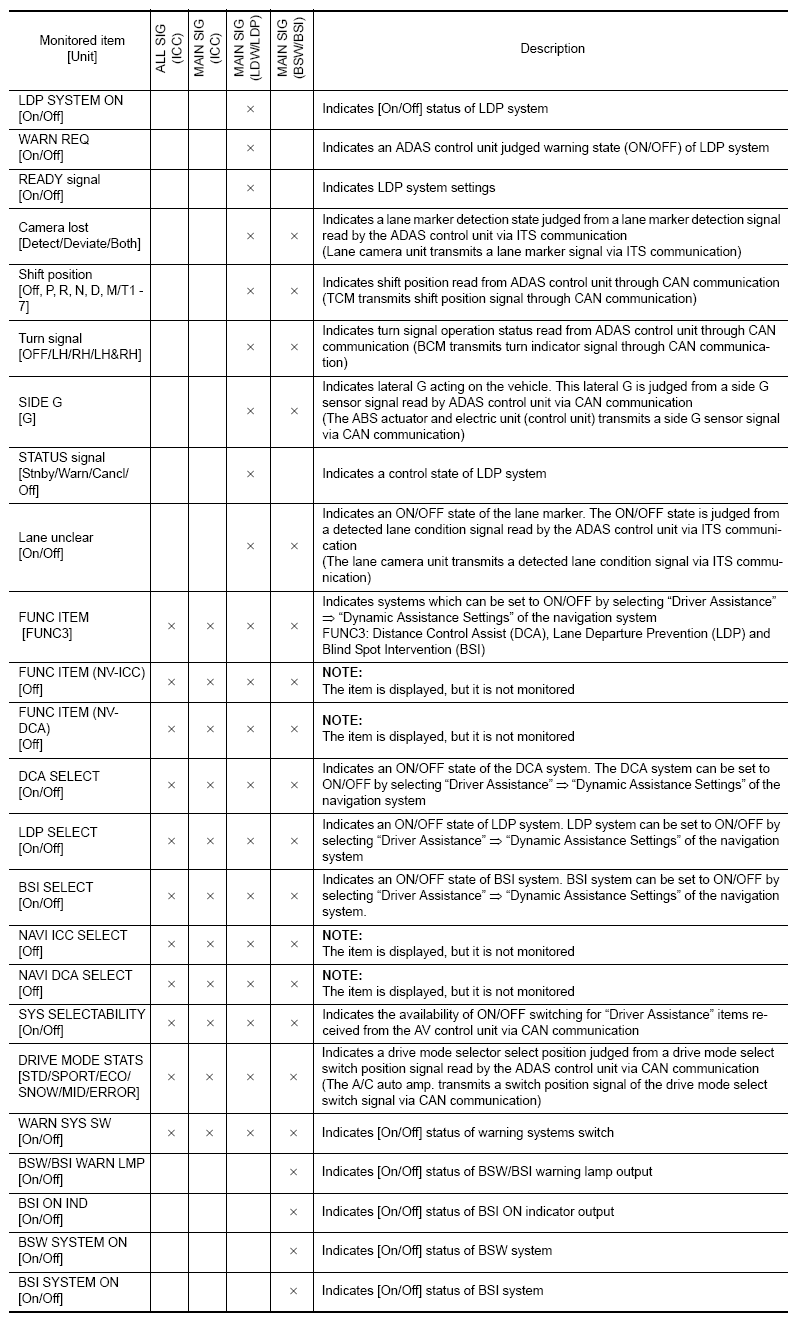

Fig 2: Data Monitor Items Chart (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

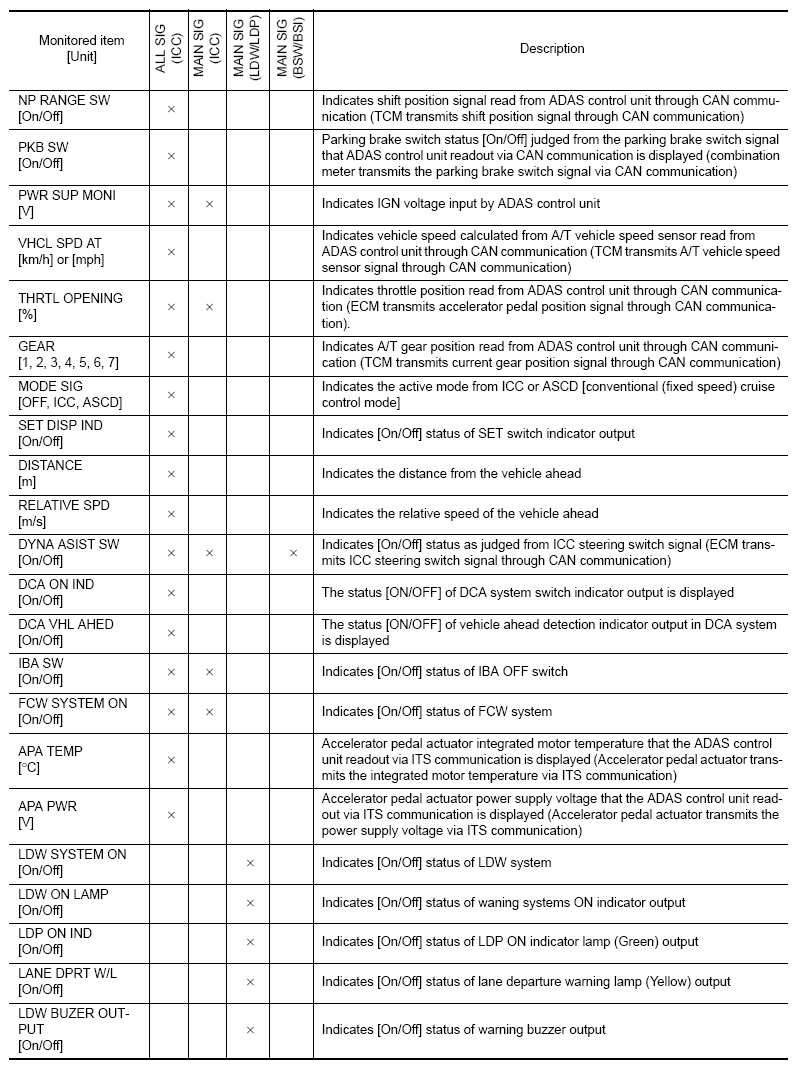

Fig 3: Data Monitor Items Chart (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
