Overall Sequence

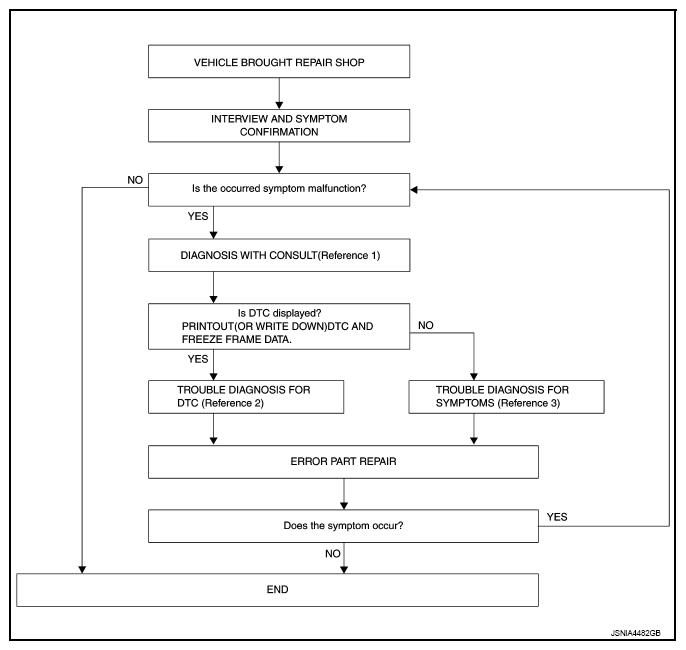

Fig 1: Diagnosis And Repair Work Flow Chart

G08884764

Courtesy of NISSAN NORTH AMERICA, INC.

Reference 1... Refer to "CONSULT FUNCTION ".
Reference 2... Refer to "DTC INDEX ".
Reference 3... Refer to "SYMPTOM TABLE ".
