Home
>>
Infiniti
>>
2014
>>
Q60 Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System (Convertible)
>>
Removal And Installation
>>
Windshield Glass
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

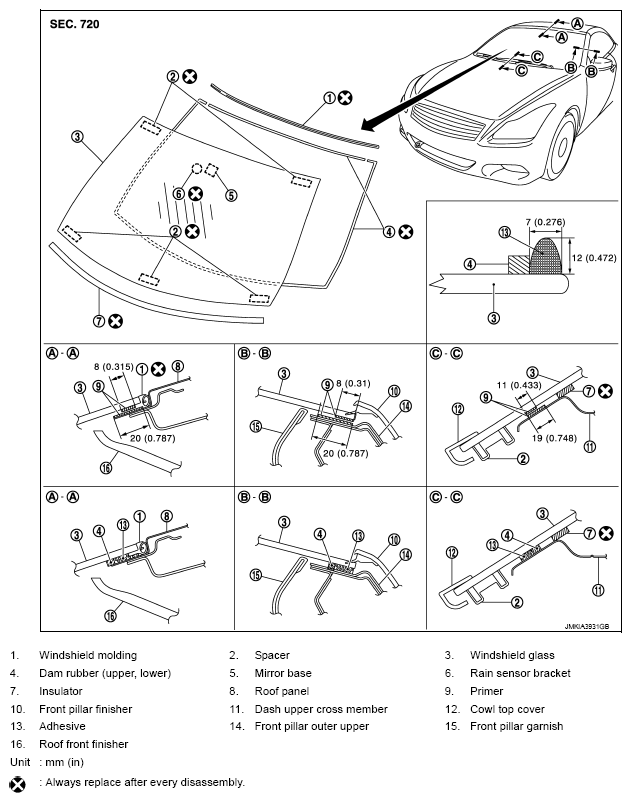

Exploded View
Fig 1: Identifying Windshield Glass Adjustment Sections
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
