Exploded View: Disassembly

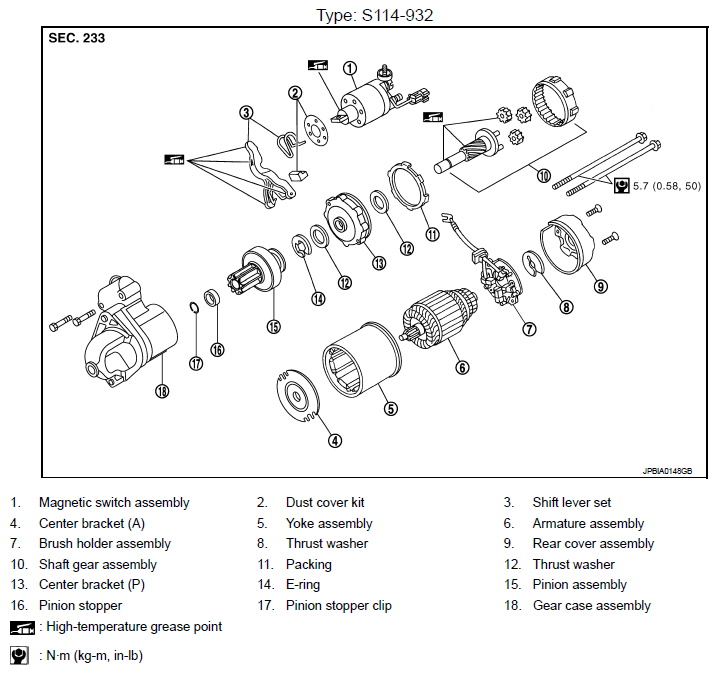

Fig 1: Disassembled View Of Starter Motor With Torque Specifications
G09462951Courtesy of NISSAN NORTH AMERICA, INC.
