Overall Sequence

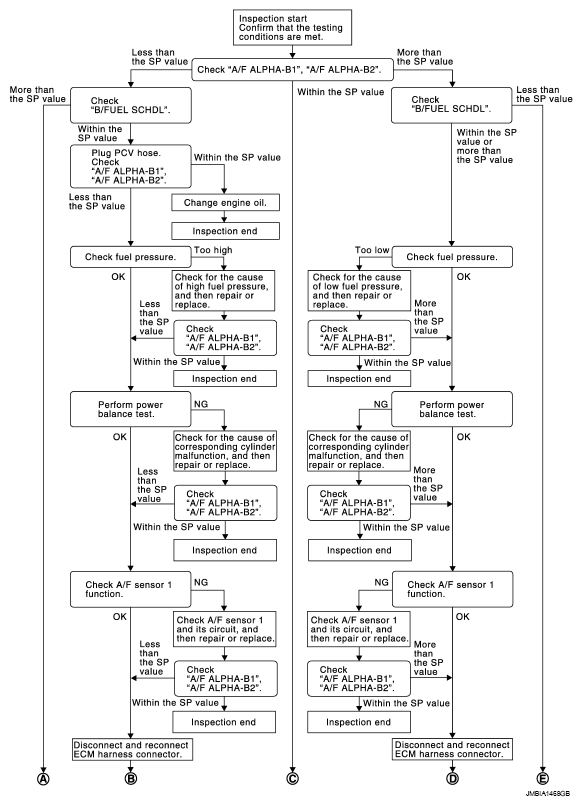

Fig 1: Trouble Diagnosis Flow Chart (1 Of 2)
G09465358Courtesy of NISSAN NORTH AMERICA, INC.

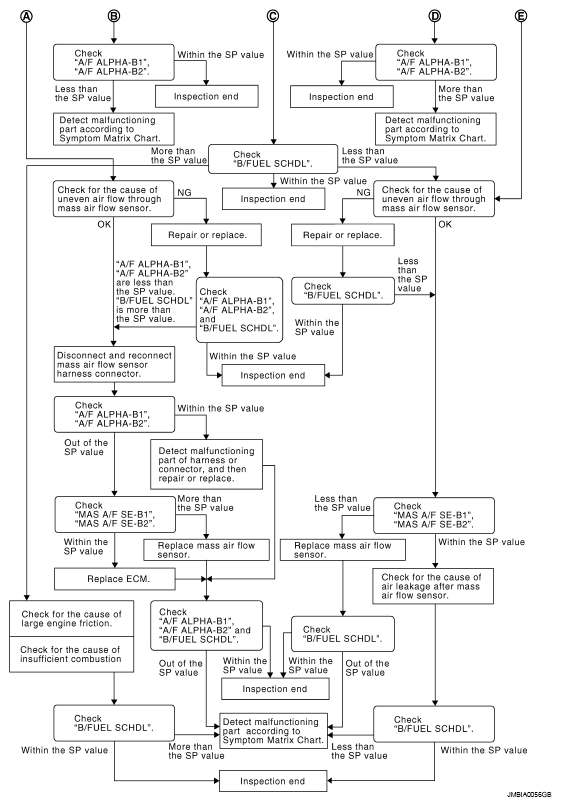

Fig 2: Trouble Diagnosis Flow Chart (2 Of 2)
G09465359Courtesy of NISSAN NORTH AMERICA, INC.
