AWD: Exploded View: Disassembly

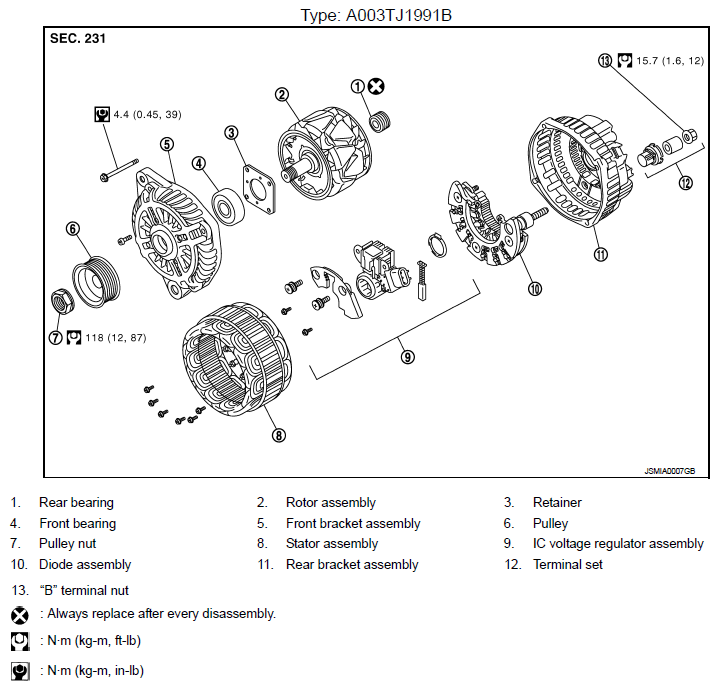

Fig 1: Disassembled View Of Alternator (Type: A003TJ1991B) With Torque Specifications
G09175201Courtesy of NISSAN NORTH AMERICA, INC.
