Exploded View With Torque Specifications

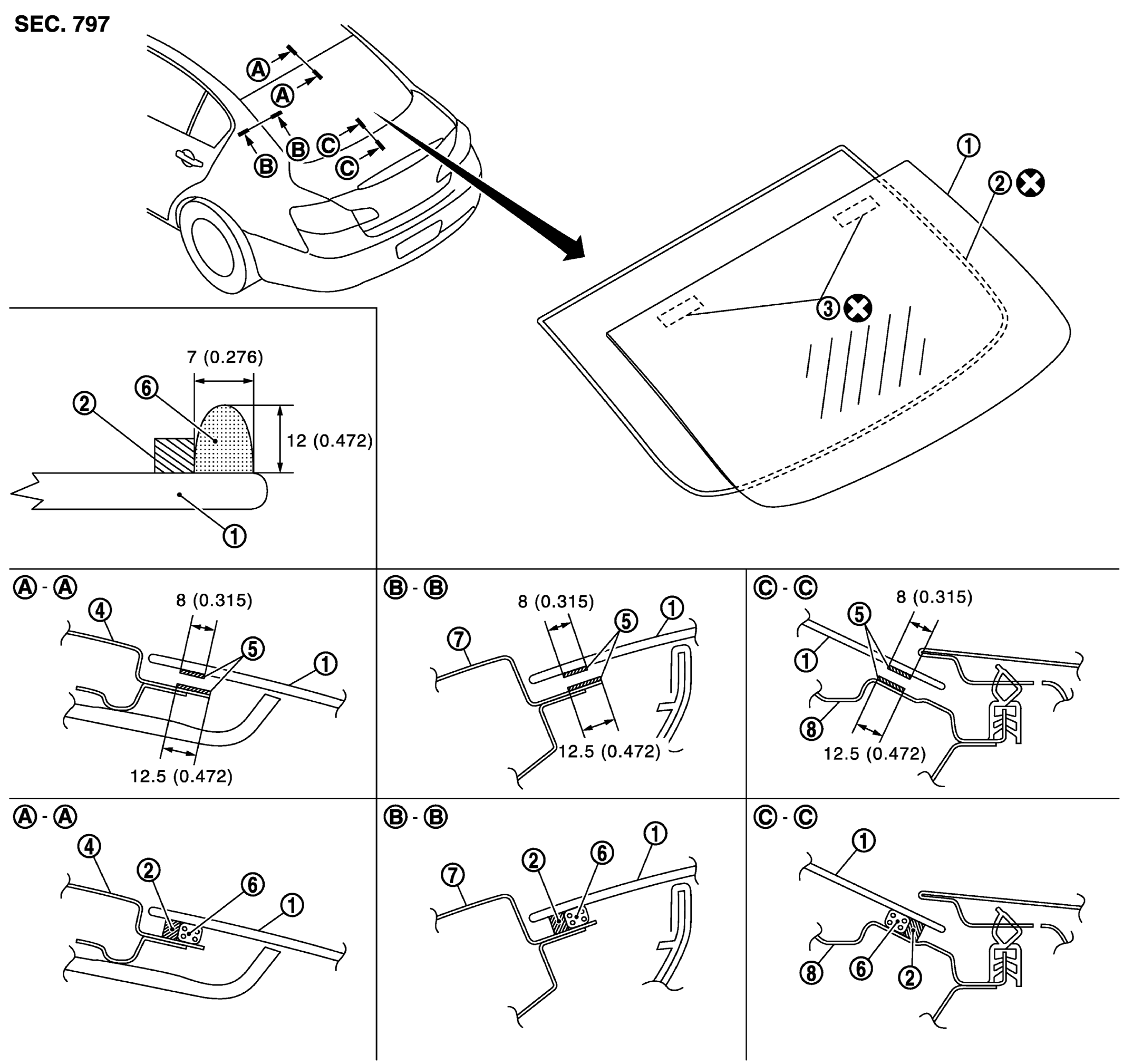

Fig 1: Exploded View Of Rear Window Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear window glass	2.	Dam rubber	3.	Spacer
4.	Roof panel	5.	Primer	6.	Adhesive
7.	Body side outer panel	8.	Waist rear
Unit : mm (in)
	: Always replace after every disassembly.
