Circuit Diagram

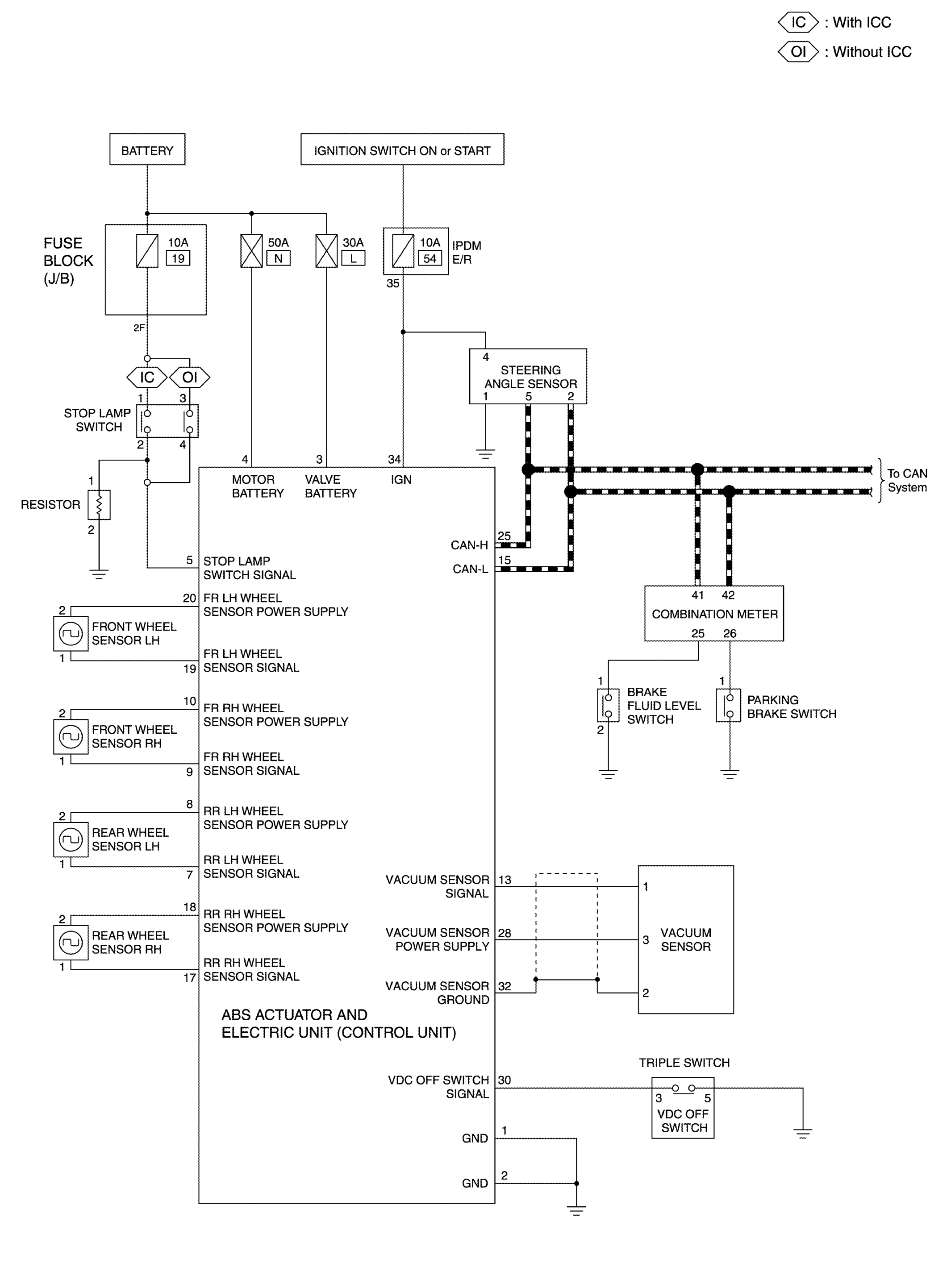

Fig 1: Brake Control System Circuit Diagram
G09159284Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Brake Control System Connector End Views
G09159285Courtesy of NISSAN NORTH AMERICA, INC.
