Exploded View With Torque Specifications

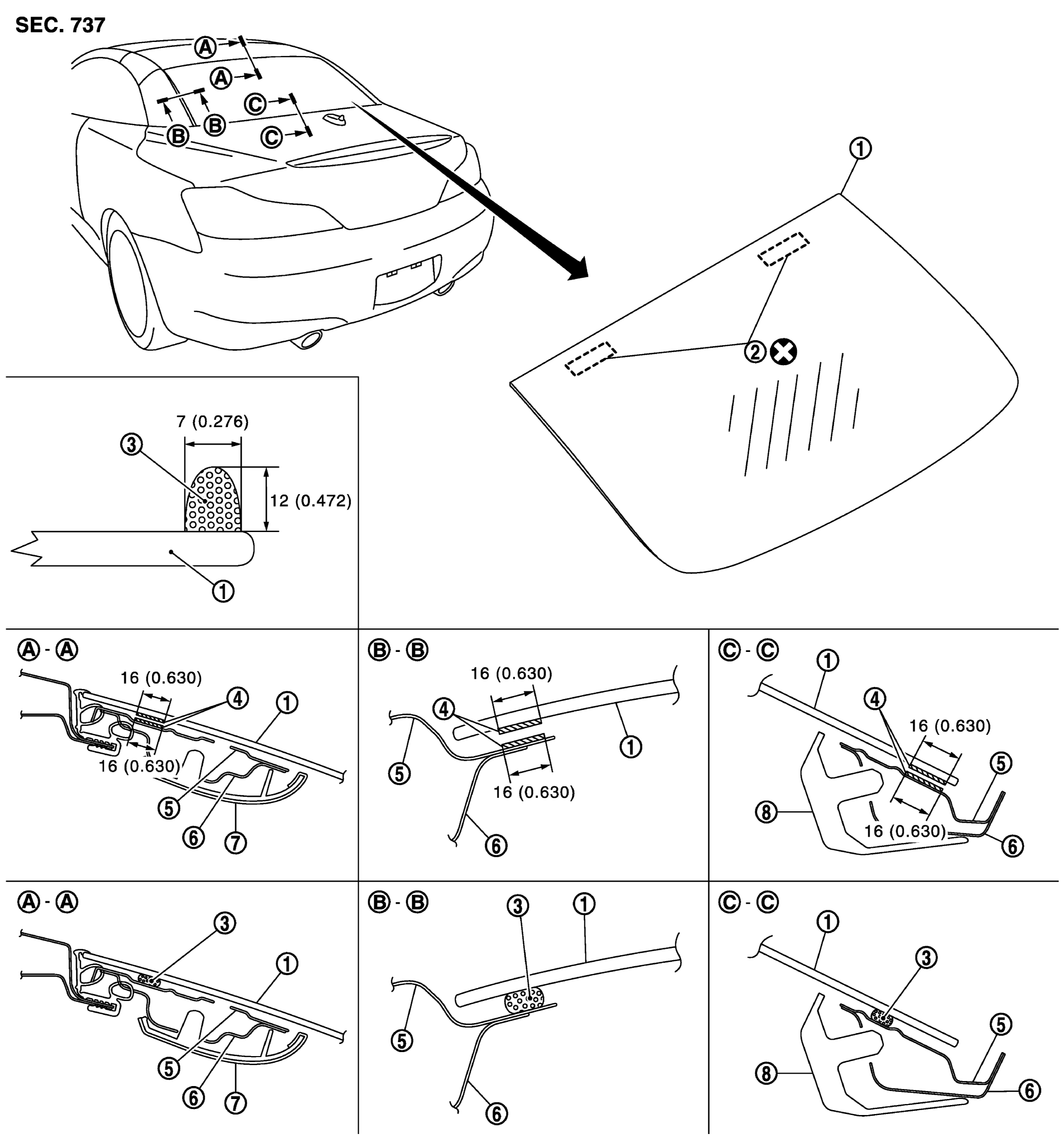

Fig 1: Exploded View Of Rear Window Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear window glass	2.	Spacer	3.	Adhesive
4.	Primer	5.	Rear roof outer	6.	Rear roof inner
7.	Rear roof upper garnish	8.	Rear roof lower garnish
Unit	: mm (in)
X	: Always replace after every disassembly.
