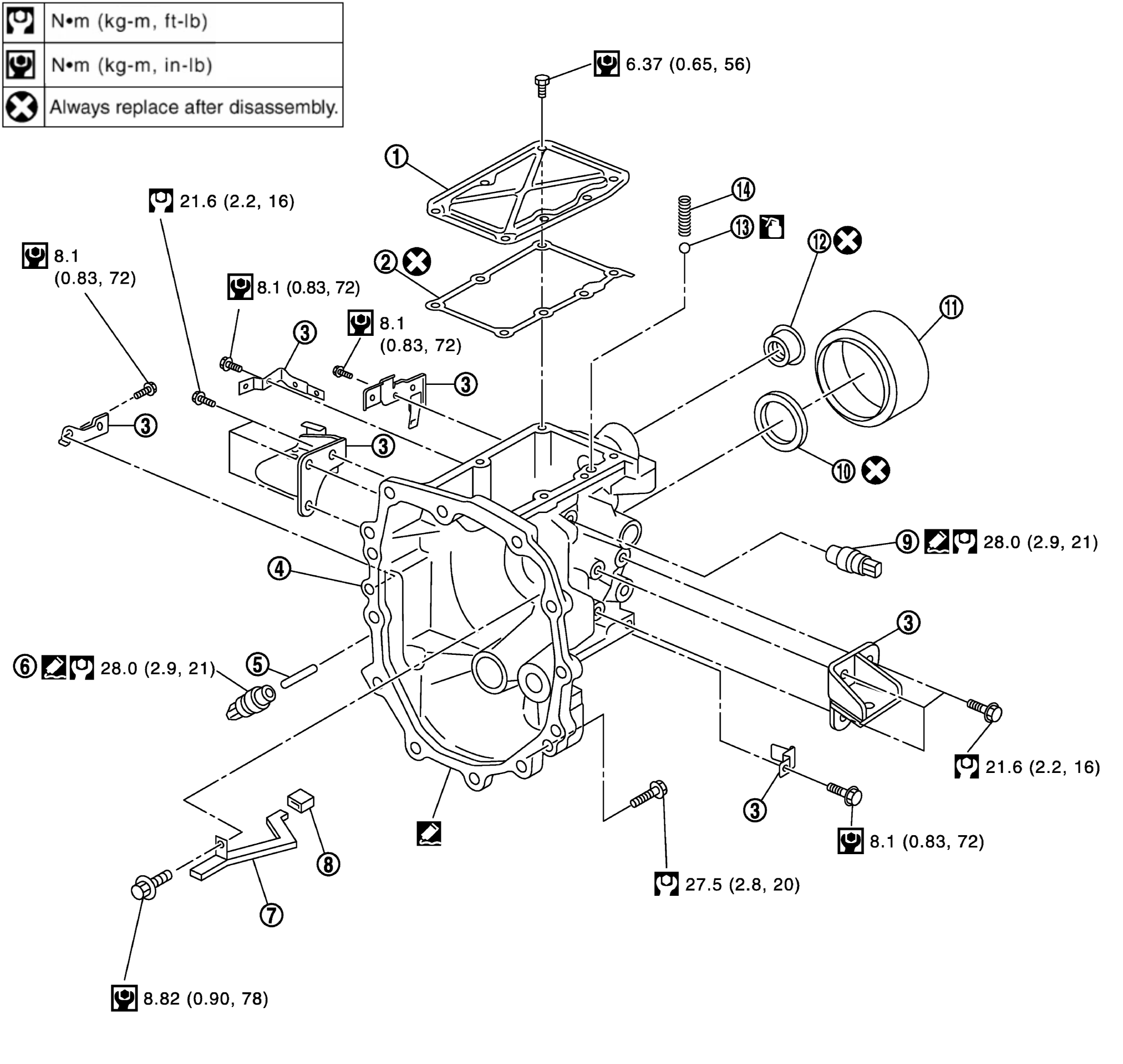

Exploded View With Torque Specifications
WARNING: This page is about a different variant/trim than selected.
| 1. | Rear extension upper cover | 2. | Rear extension upper cover gasket | 3. | Bracket |
| 4. | Rear extension | 5. | Plunger | 6. | Park/Neutral position (PNP) switch |
| 7. | Oil gutter | 8. | Cap | 9. | Back-up lamp switch |
| 10. | Rear oil seal | 11. | Dust cover | 12. | Striking rod oil seal |
| 13. | Check ball | 14. | Check select spring | ||
| Oil Can: Apply gear oil. | |||||
| Sealer: Apply Genuine Silicone RTV or an equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS . | |||||
| Refer to COMPONENTS for symbols not described on the above. | |||||
