Exploded View With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

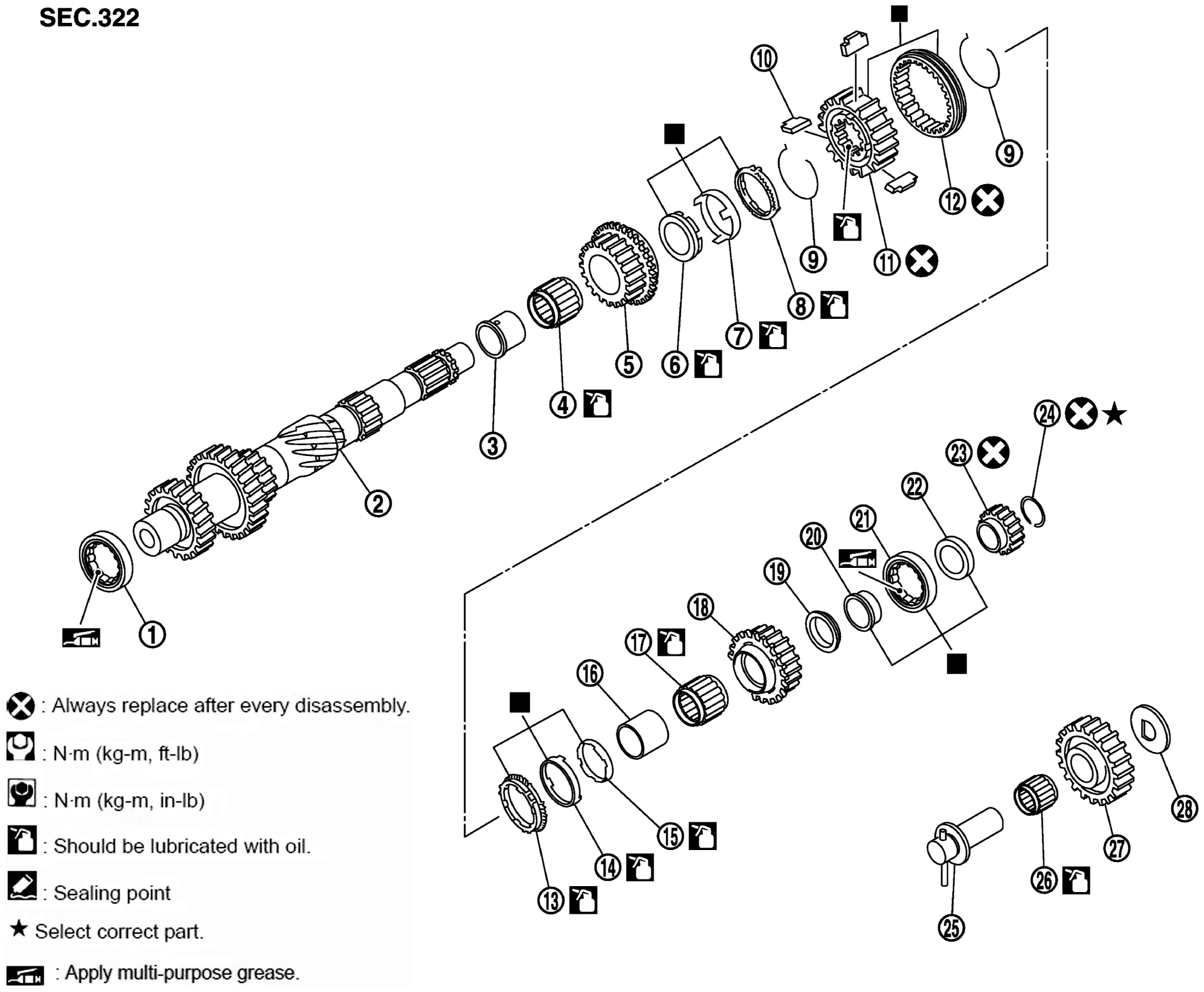

Fig 1: Exploded View Of Reverse Idler Shaft And Gear

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Counter front bearing	2.	Counter shaft	3.	3rd gear bushing
4.	3rd needle bearing	5.	3rd counter gear	6.	3rd inner baulk ring
7.	3rd synchronizer cone	8.	3rd outer baulk ring	9.	3rd-4th spread spring
10.	3rd-4th shifting insert	11.	3rd-4th synchronizer hub	12.	3rd-4th coupling sleeve
13.	4th outer baulk ring	14.	4th synchronizer cone	15.	4th inner baulk ring
16.	4th gear bushing	17.	4th needle bearing	18.	4th counter gear
19.	4th counter gear thrust washer	20.	Counter rear bearing inner race	21.	Counter rear bearing
22.	Counter rear bearing spacer	23.	Reverse counter gear	24.	Snap ring
25.	Reverse idler shaft	26.	Reverse idler needle bearing	27.	Reverse idler gear
28.	Reverse idler thrust washer
■: Replace the parts as a set.
Oil Can: Apply gear oil.
Lubricate: Apply lithium-based grease including molybdenum disulphide.
Refer to COMPONENTS for symbols not described on the above.
