Check Shift Pin

WARNING: This page is about a different variant/trim than selected.
  1. Set the control bracket to a vise and then install check shift pin (1) to control bracket.

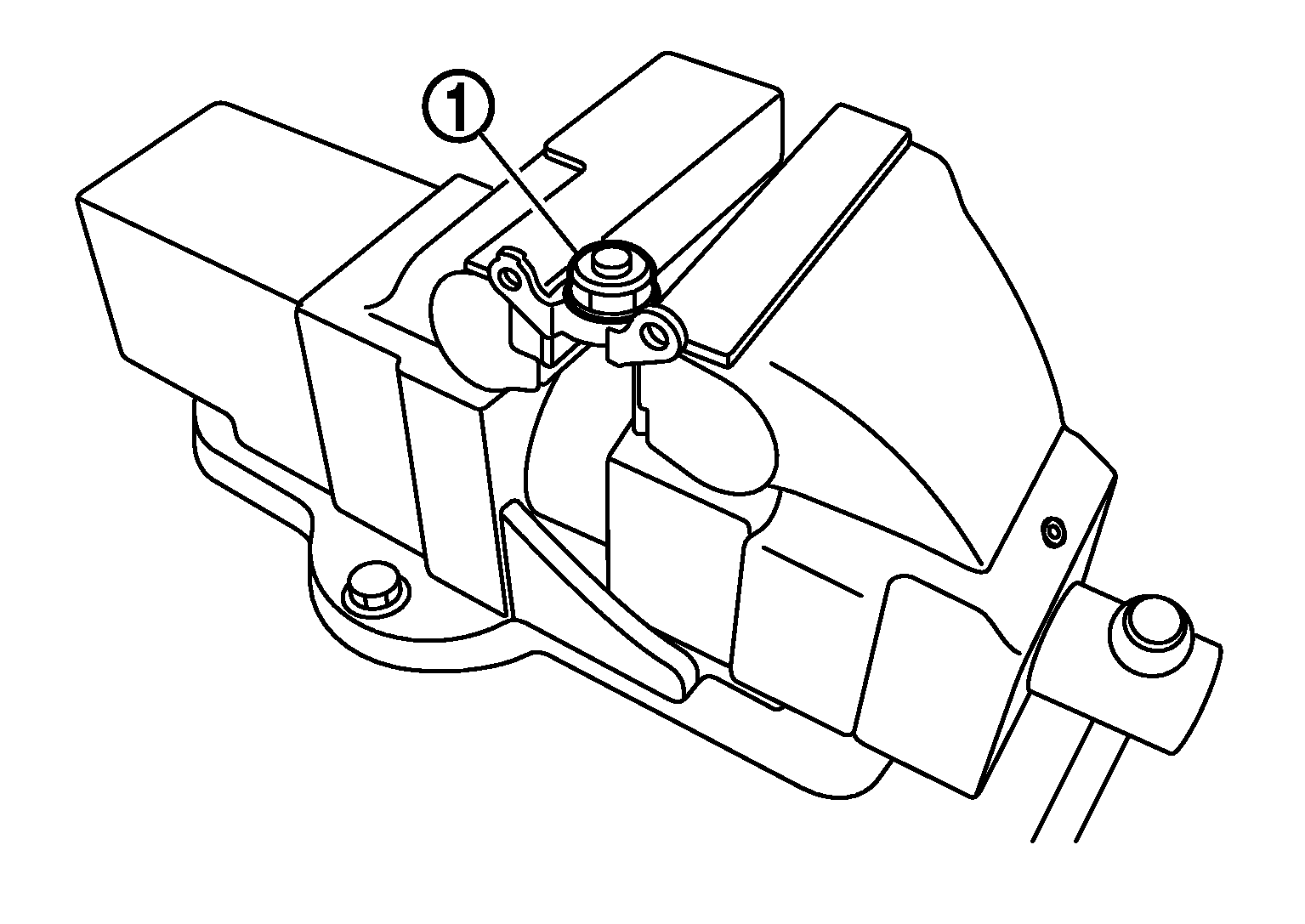

    Fig 1: Identifying Check Shift Pin
    G05973300Courtesy of NISSAN NORTH AMERICA, INC.
  2. Tighten check shift pin to the specified torque.
