Exploded View With Torque Specifications
WARNING: This page is about a different variant/trim than selected.

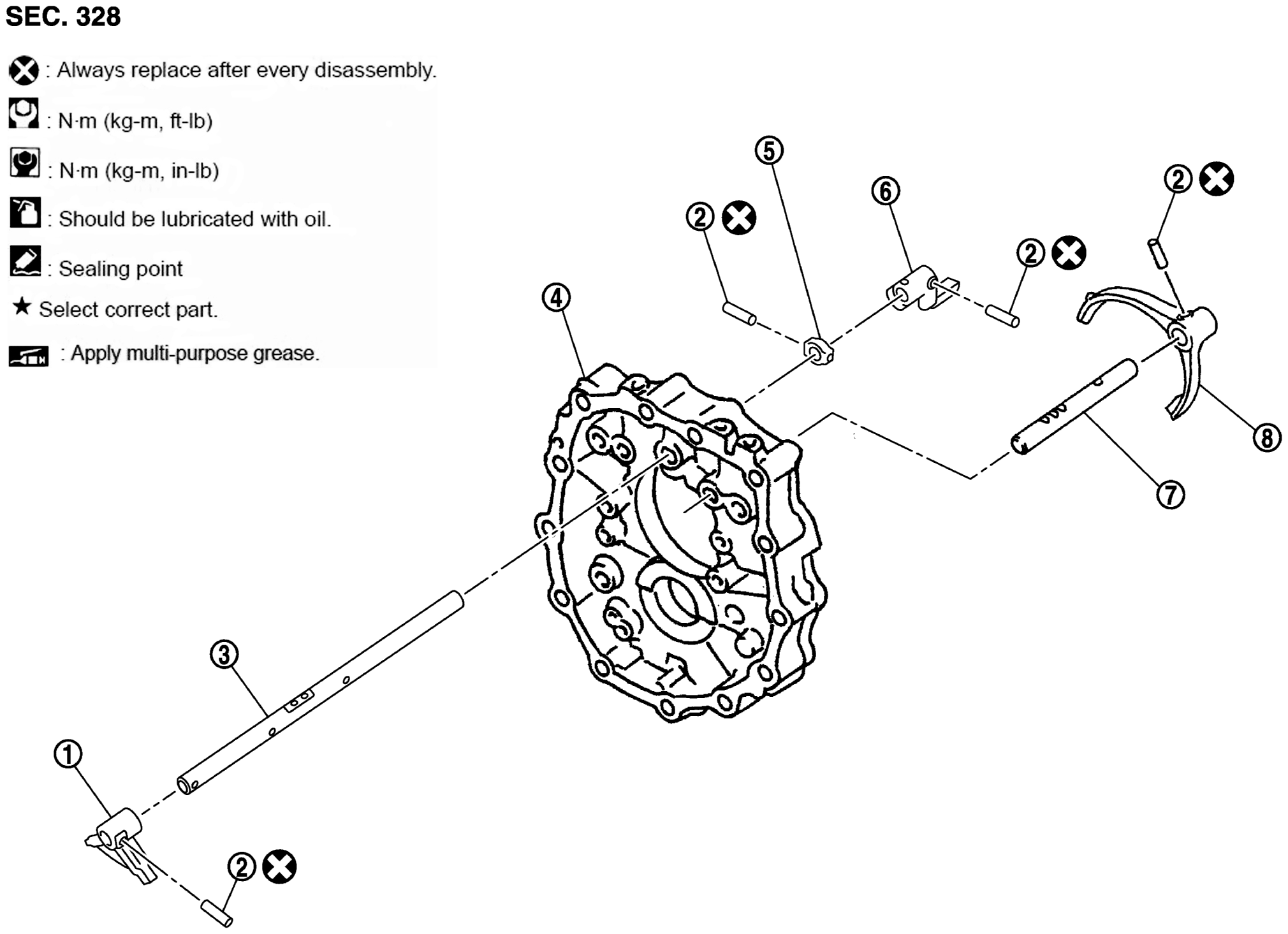

Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Striking lever |
2. |
Retaining pin |
3. |
Striking rod |
| 4. |
Adapter plate |
5. |
Stopper ring |
6. |
Low/high control lever |
| 7. |
Reverse fork rod |
8. |
Reverse shift fork |
|
|
| Refer to COMPONENTS
for the symbols in the figure. |

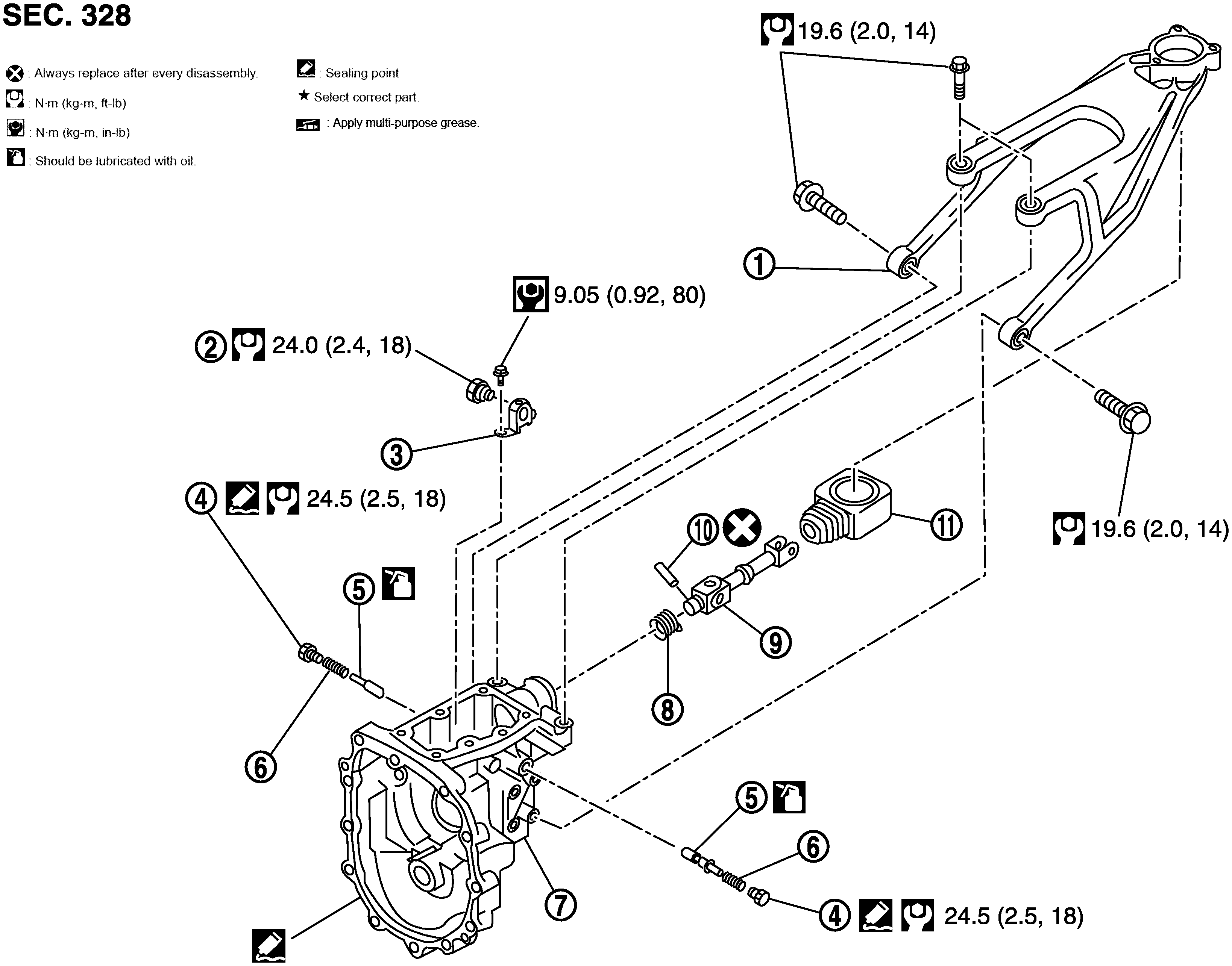

Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Control lever housing |
2. |
Check shift pin |
3. |
Control bracket |
| 4. |
Return spring plug |
5. |
Return spring plunger |
6. |
Return spring |
| 7. |
Rear extension |
8. |
Boot |
9. |
Control rod |
| 10. |
Retaining pin |
11. |
Control rod boot |
|
|
| Oil Can: Apply gear oil. |
| Sealer: Apply Genuine Silicone RTV or an equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
. |
| Refer to COMPONENTS
for symbols not described on the above. |
