Case And Extension
WARNING: This page is about a different variant/trim than selected.

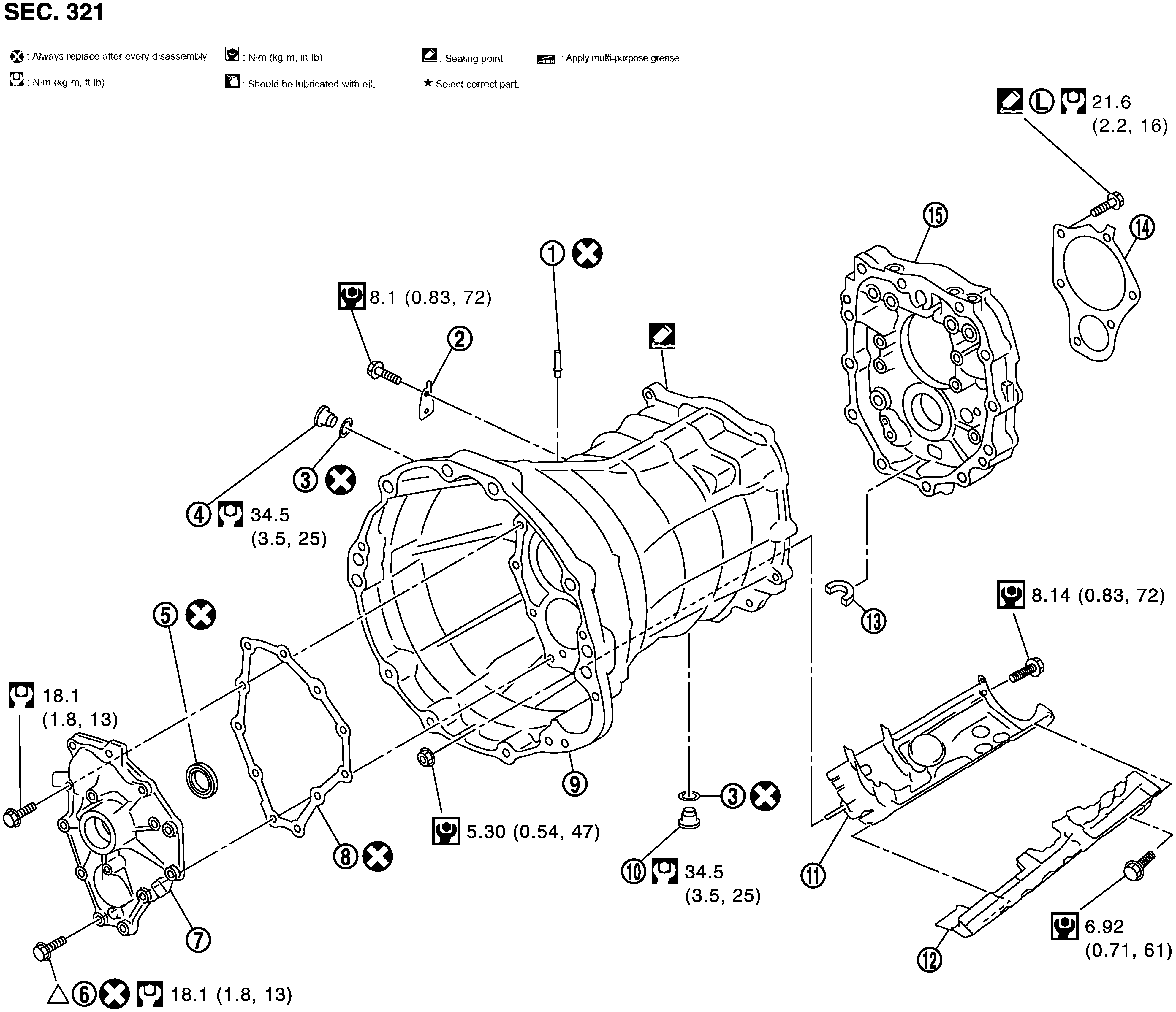

Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Breather tube |
2. |
Bracket |
3. |
Gasket |
| 4. |
Filler plug |
5. |
Front oil seal |
6. |
Sealing bolt |
| 7. |
Front cover |
8. |
Front cover gasket |
9. |
Transmission case |
| 10. |
Drain plug |
11. |
Baffle plate |
12. |
Oil gutter |
| 13. |
Magnet |
14. |
Bearing retainer |
15. |
Adapter plate |
| Sealer: Apply Genuine Silicone RTV or an equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
. |
| Sealer w/L: Apply Genuine Medium Strength Thread Locking Sealant or an equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
. |
| Δ: Refer to "CASE AND EXTENSION" in ASSEMBLY for the locations. |
| Refer to COMPONENTS
for symbols not described on the above. |
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Rear extension upper cover |
2. |
Rear extension upper cover gasket |
3. |
Bracket |
| 4. |
Rear extension |
5. |
Plunger |
6. |
Park/Neutral position (PNP) switch |
| 7. |
Oil gutter |
8. |
Cap |
9. |
Back-up lamp switch |
| 10. |
Rear oil seal |
11. |
Dust cover |
12. |
Striking rod oil seal |
| 13. |
Check ball |
14. |
Check select spring |
|
|
| Oil Can: Apply gear oil. |
| Sealer: Apply Genuine Silicone RTV or an equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
. |
| Refer to COMPONENTS
for symbols not described on the above. |
