Shaft And Gear
WARNING: This page is about a different variant/trim than selected.

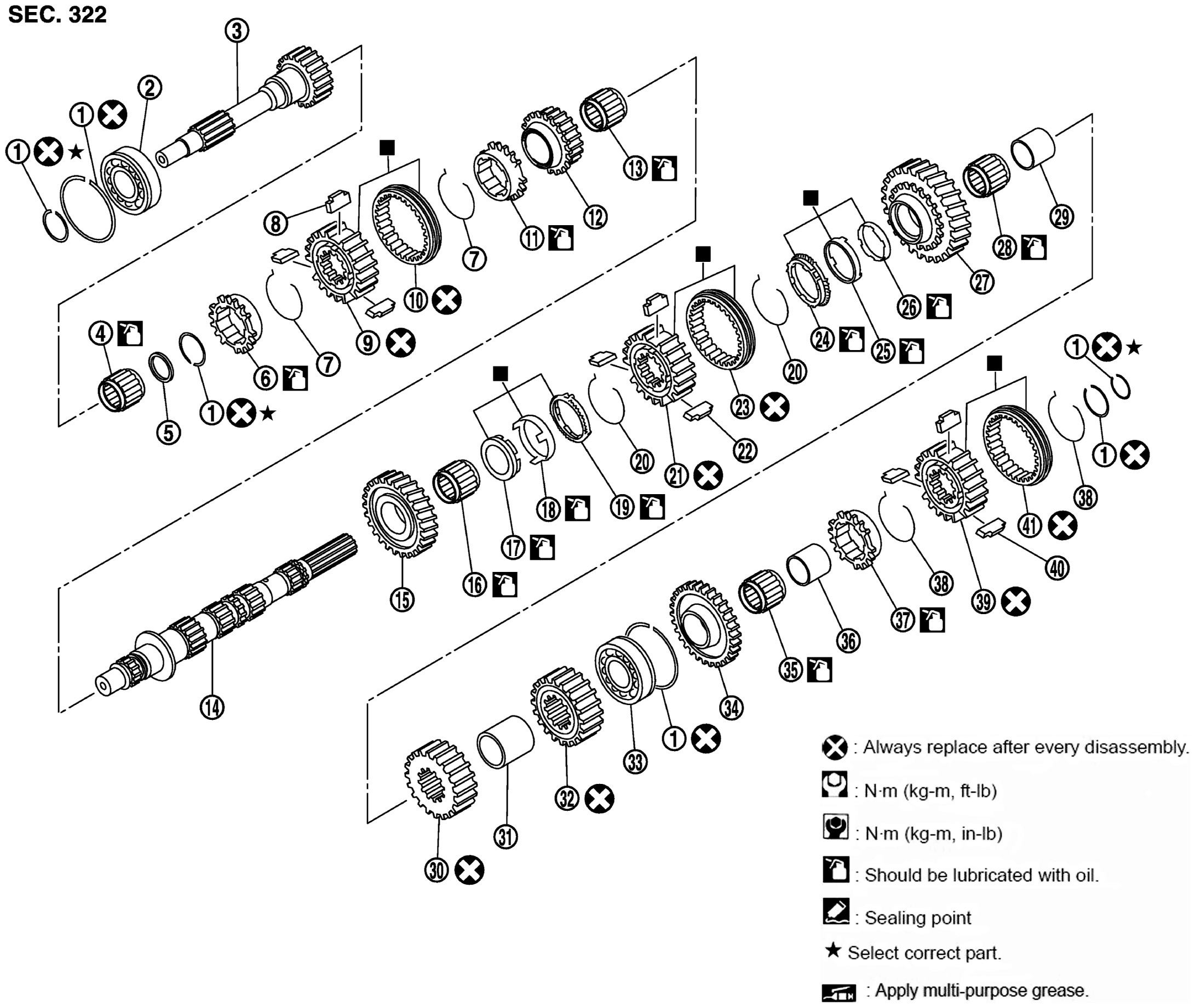

Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Snap ring |
2. |
Main drive gear bearing |
3. |
Main drive gear |
| 4. |
Main pilot bearing |
5. |
Pilot bearing spacer |
6. |
5th baulk ring |
| 7. |
5th-6th spread spring |
8. |
5th-6th shifting insert |
9. |
5th-6th synchronizer hub |
| 10. |
5th-6th coupling sleeve |
11. |
6th baulk ring |
12. |
6th main gear |
| 13. |
6th needle bearing |
14. |
Mainshaft |
15. |
2nd main gear |
| 16. |
2nd needle bearing |
17. |
2nd inner baulk ring |
18. |
2nd synchronizer cone |
| 19. |
2nd outer baulk ring |
20. |
1st-2nd spread spring |
21. |
1st-2nd synchronizer hub |
| 22. |
1st-2nd shifting insert |
23. |
1st-2nd coupling sleeve |
24. |
1st outer baulk ring |
| 25. |
1st synchronizer cone |
26. |
1st inner baulk ring |
27. |
1st main gear |
| 28. |
1st needle bearing |
29. |
1st gear bushing |
30. |
3rd main gear |
| 31. |
3rd-4th main spacer |
32. |
4th main gear |
33. |
Mainshaft bearing |
| 34. |
Reverse main gear |
35. |
Reverse needle bearing |
36. |
Reverse main gear bushing |
| 37. |
Reverse baulk ring |
38. |
Reverse spread spring |
39. |
Reverse synchronizer hub |
| 40. |
Reverse shifting insert |
41. |
Reverse coupling sleeve |
|
|
| ■: Replace the parts as a set. |
| Oil Can: Apply gear oil. |
| Refer to COMPONENTS
for symbols not described on the above. |
- Apply gear oil to gears, shafts, synchronizers, and bearings when assembling.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Counter front bearing |
2. |
Counter shaft |
3. |
3rd gear bushing |
| 4. |
3rd needle bearing |
5. |
3rd counter gear |
6. |
3rd inner baulk ring |
| 7. |
3rd synchronizer cone |
8. |
3rd outer baulk ring |
9. |
3rd-4th spread spring |
| 10. |
3rd-4th shifting insert |
11. |
3rd-4th synchronizer hub |
12. |
3rd-4th coupling sleeve |
| 13. |
4th outer baulk ring |
14. |
4th synchronizer cone |
15. |
4th inner baulk ring |
| 16. |
4th gear bushing |
17. |
4th needle bearing |
18. |
4th counter gear |
| 19. |
4th counter gear thrust washer |
20. |
Counter rear bearing inner race |
21. |
Counter rear bearing |
| 22. |
Counter rear bearing spacer |
23. |
Reverse counter gear |
24. |
Snap ring |
| 25. |
Reverse idler shaft |
26. |
Reverse idler needle bearing |
27. |
Reverse idler gear |
| 28. |
Reverse idler thrust washer |
|
|
|
|
| ■: Replace the parts as a set. |
| Oil Can: Apply gear oil. |
| Lubricate: Apply lithium-based grease including molybdenum disulphide. |
| Refer to COMPONENTS
for symbols not described on the above. |
- Apply gear oil to gears, shafts, synchronizers, and bearings when assembling.
