Shift Fork And Fork Rod

WARNING: This page is about a different variant/trim than selected.

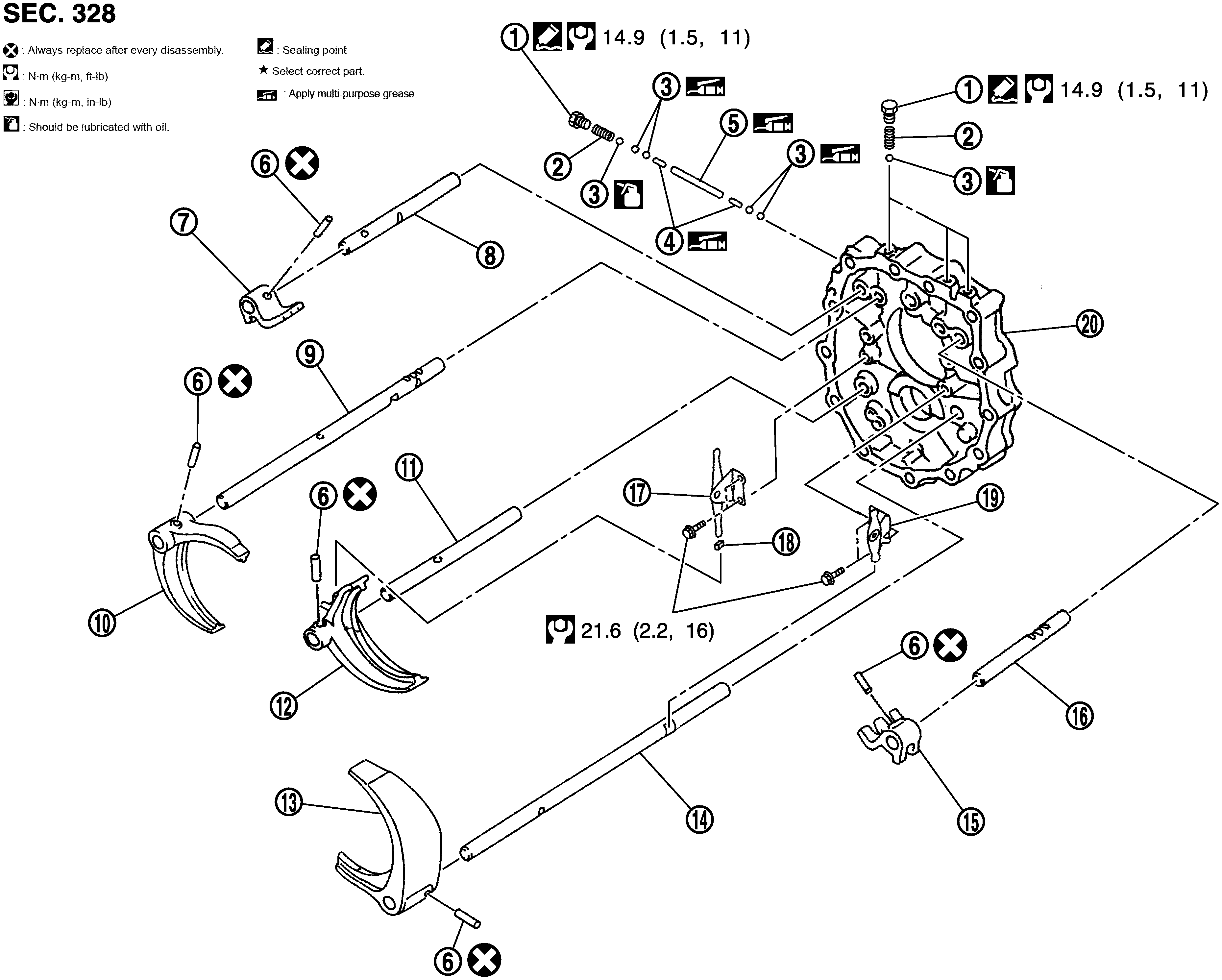

Fig 1: Exploded View Of Shift Fork With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Check ball plug	2.	Check ball spring	3.	Check ball
4.	Interlock pin	5.	Interlock plunger	6.	Retaining pin
7.	3rd-4th fork rod bracket	8.	3rd-4th fork rod	9.	1st-2nd fork rod
10.	1st-2nd shift fork	11.	3rd-4th fork rod (reversal side)	12.	3rd-4th shift fork
13.	5th-6th shift fork	14.	5th-6th fork rod (reversal side)	15.	5th-6th fork rod bracket
16.	5th-6th fork rod	17.	3rd-4th control lever	18.	Shifter cap
19.	5th-6th control lever	20.	Adapter plate
Oil Can: Apply gear oil.
Lubricate: Apply lithium-based grease including molybdenum disulphide.
Sealer: Apply Genuine Silicone RTV or an equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Refer to COMPONENTS for symbols not described on the above.

Fig 2: Exploded View Of Shift Fork And Fork Rod

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Striking lever	2.	Retaining pin	3.	Striking rod
4.	Adapter plate	5.	Stopper ring	6.	Low/high control lever
7.	Reverse fork rod	8.	Reverse shift fork
Refer to COMPONENTS for the symbols in the figure.

Fig 3: Exploded View Of Shift Fork And Fork Rod With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Control lever housing	2.	Check shift pin	3.	Control bracket
4.	Return spring plug	5.	Return spring plunger	6.	Return spring
7.	Rear extension	8.	Boot	9.	Control rod
10.	Retaining pin	11.	Control rod boot
Oil Can: Apply gear oil.
Sealer: Apply Genuine Silicone RTV or an equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Refer to COMPONENTS for symbols not described on the above.
