Exploded View With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

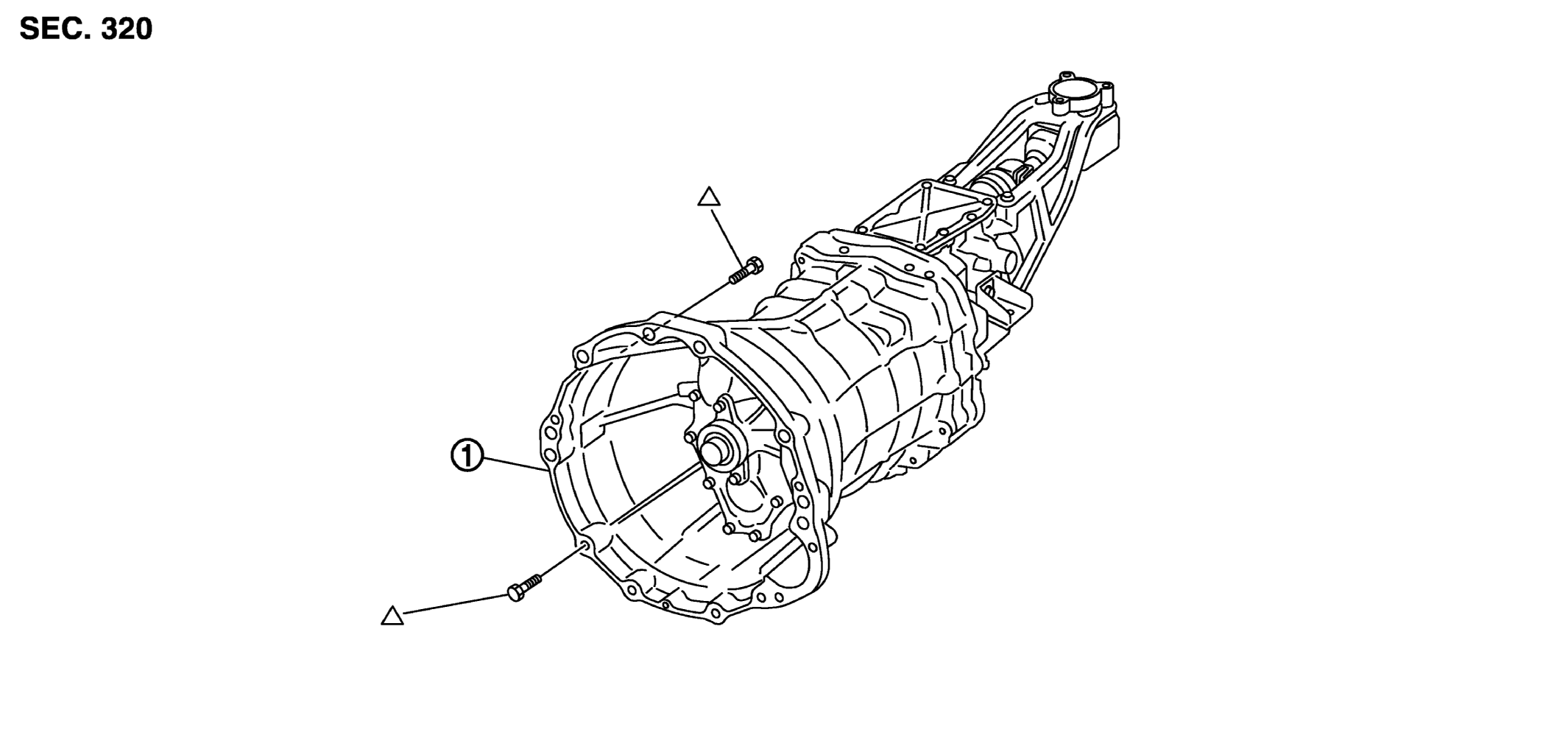

Fig 1: Exploded View Of Transmission Assembly
G08446339Courtesy of NISSAN NORTH AMERICA, INC.
1. Transmission assembly
Δ: Refer to "INSTALLATION" in REMOVAL AND INSTALLATION  for the locations and tightening torque.
