Wiring Diagram - Electronically Controlled Power Steering System -

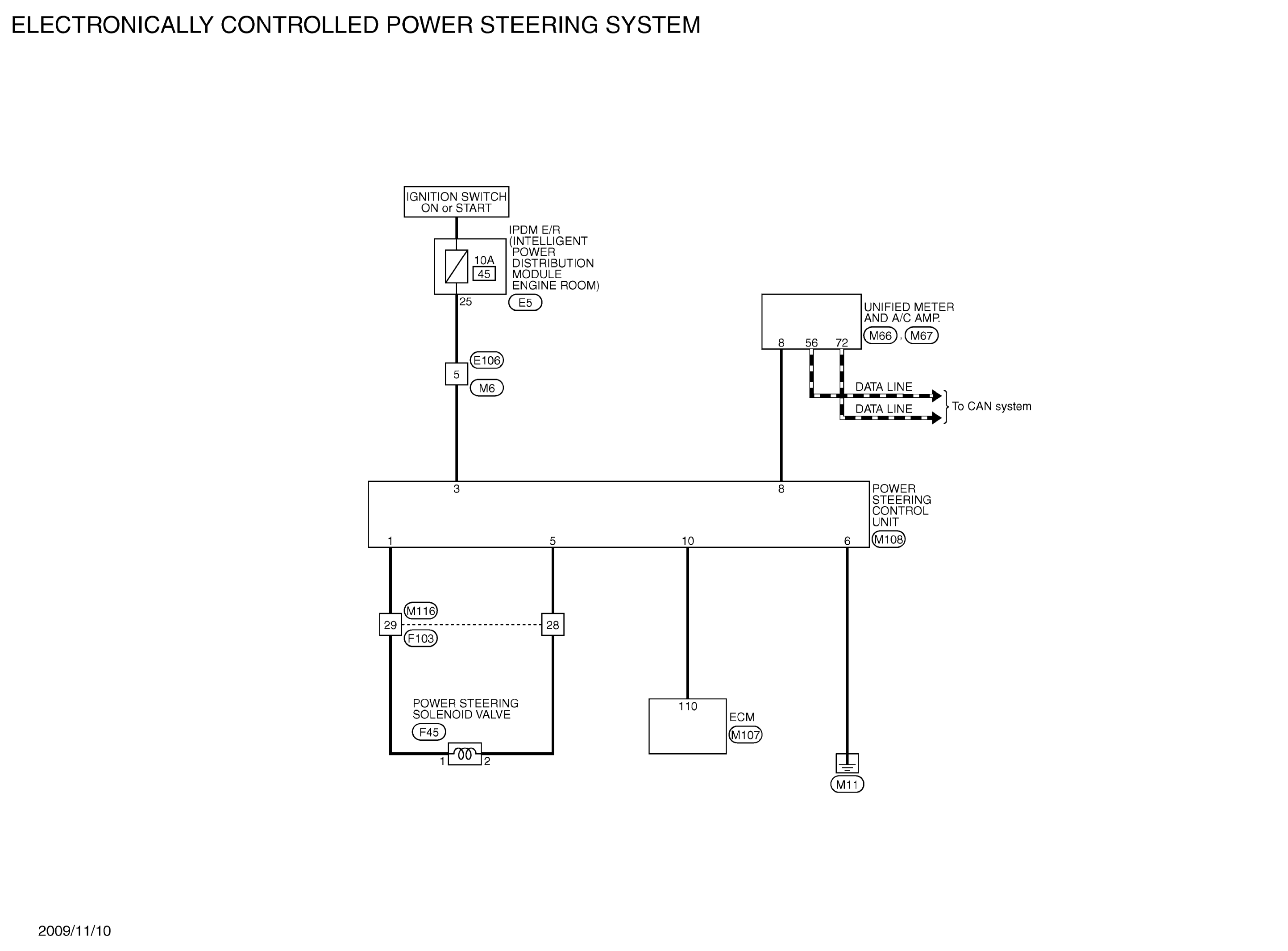

Fig 1: Electronically Controlled Power Steering System Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
