Power Steering Control System: Wiring Diagram

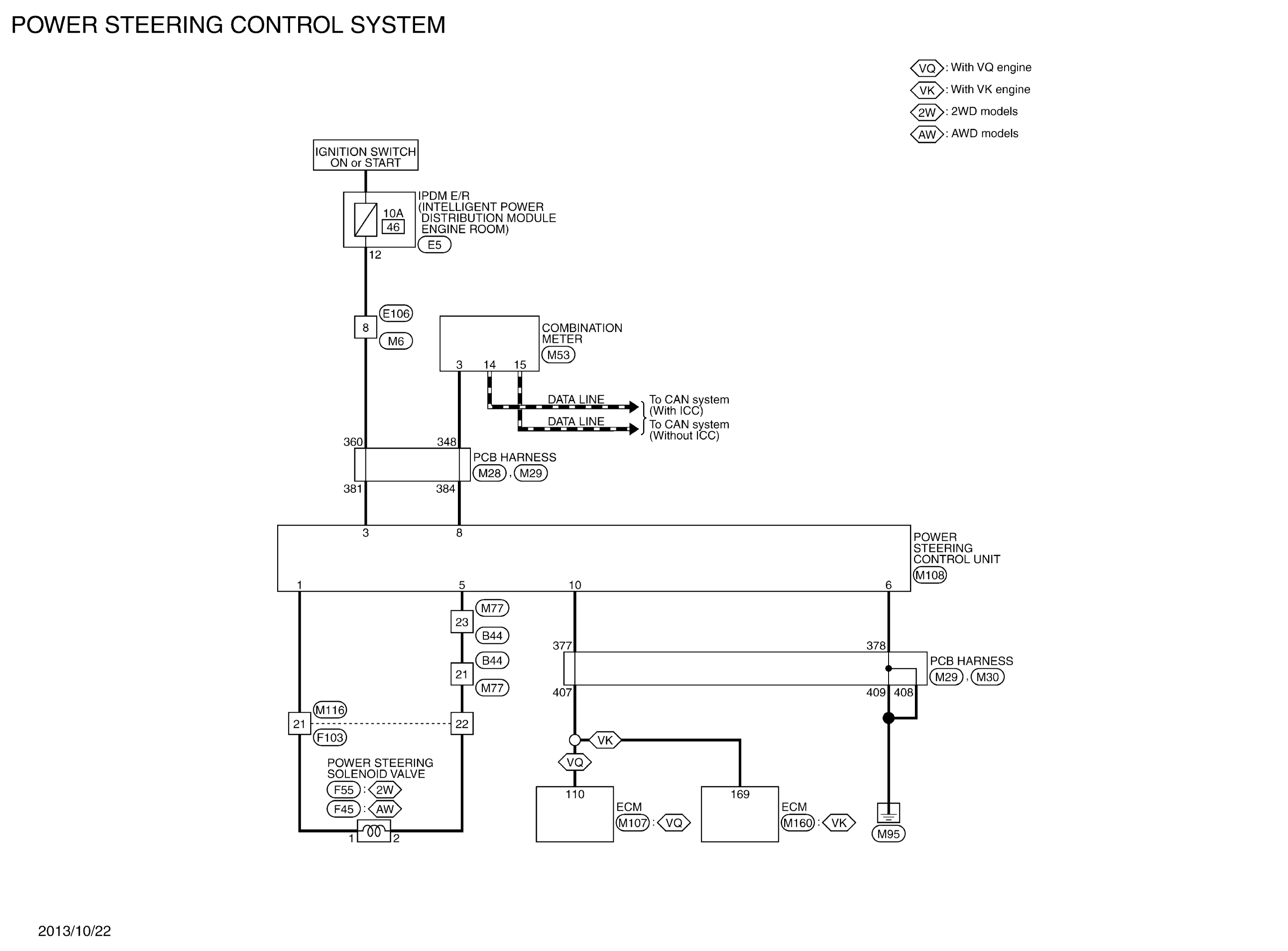

Fig 1: Power Steering Control System Wiring Diagram
G09495492Courtesy of NISSAN NORTH AMERICA, INC.
