Intelligent Key System/Engine Start Function Connector End Views

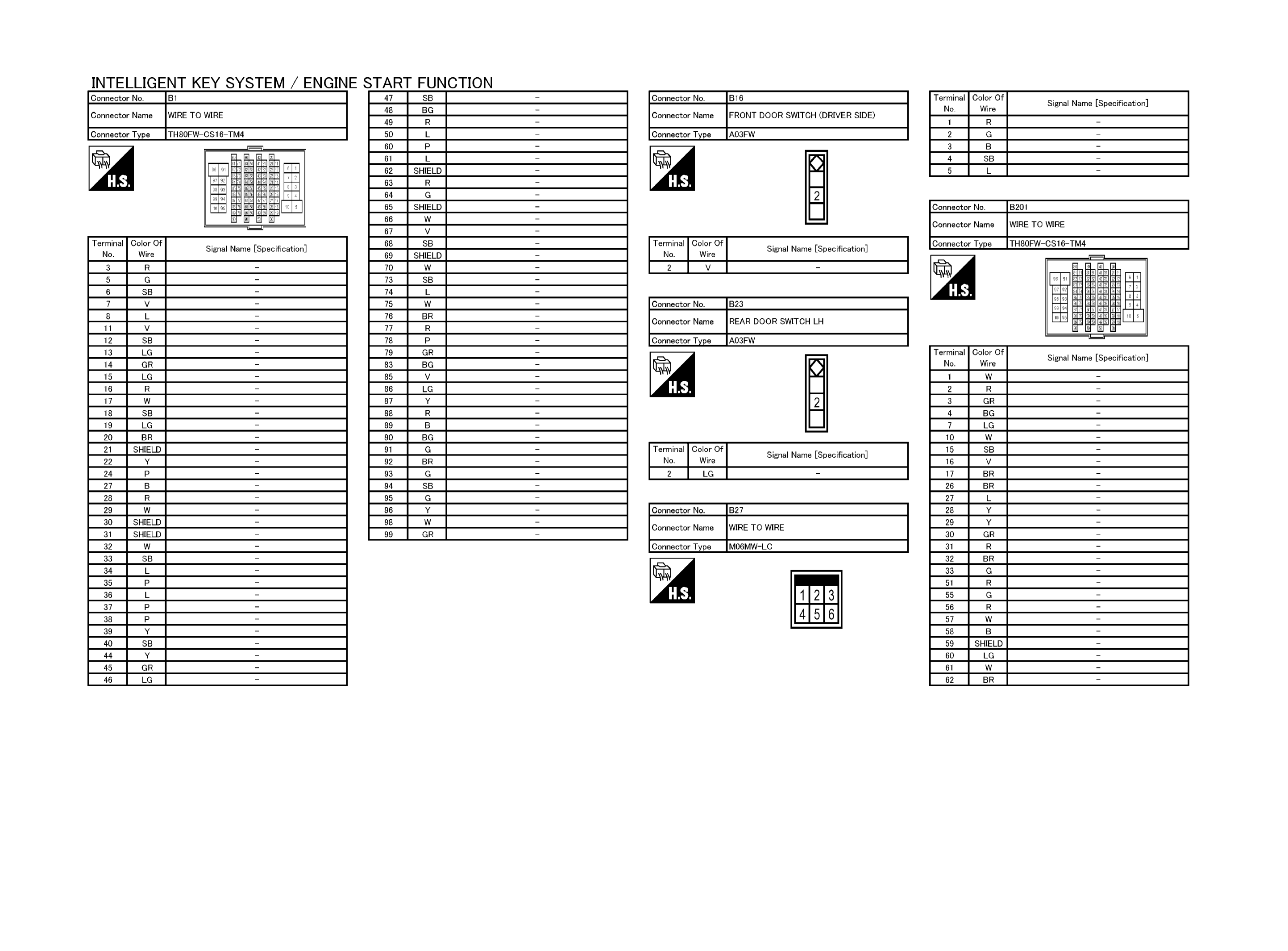

Fig 1: Intelligent Key System/Engine Start Function Connector End Views (1 Of 9)
GNSJRKWD4916GB-916Courtesy of NISSAN NORTH AMERICA, INC.

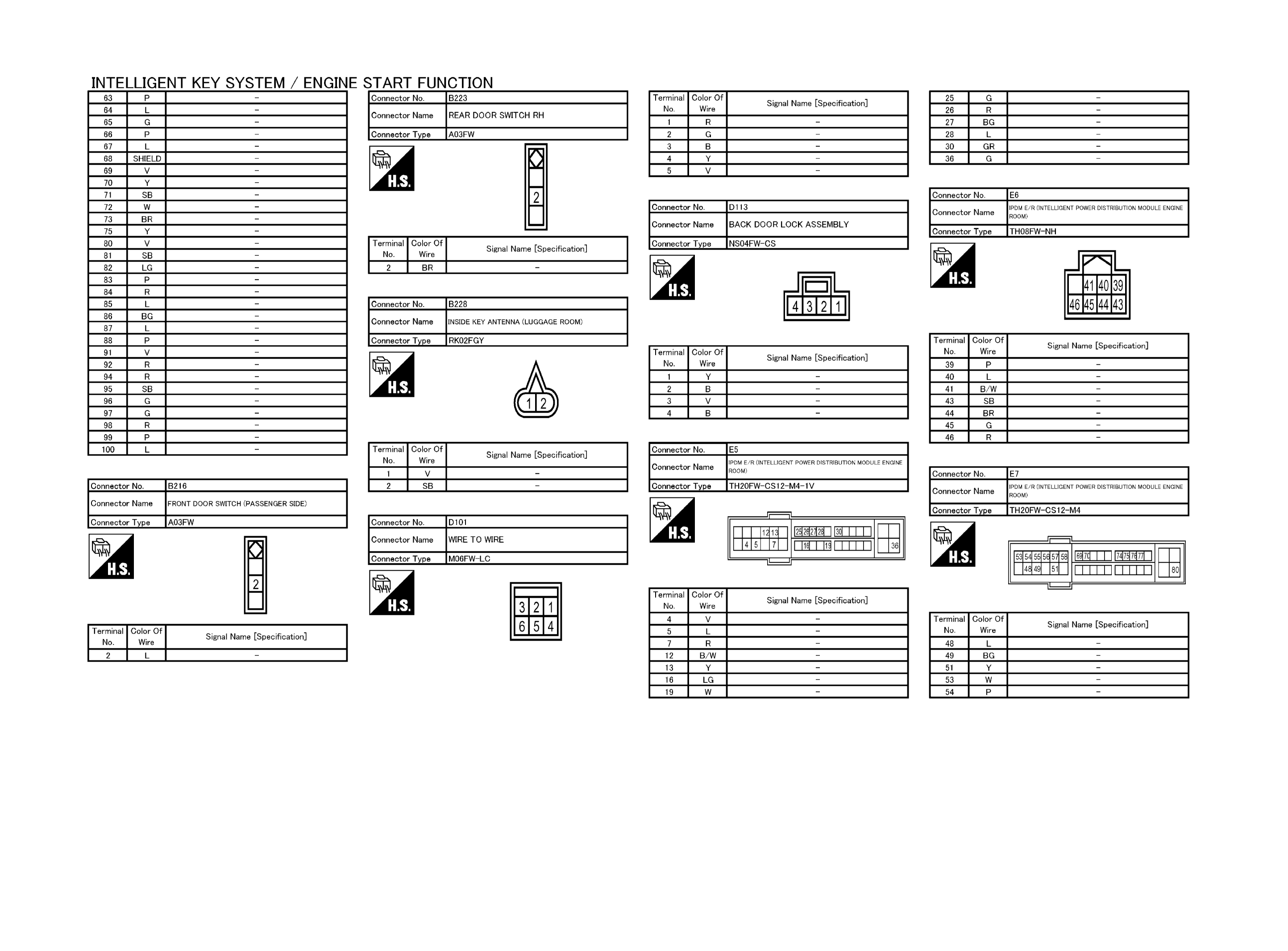

Fig 2: Intelligent Key System/Engine Start Function Connector End Views (2 Of 9)
GNSJRKWD4917GB-917Courtesy of NISSAN NORTH AMERICA, INC.

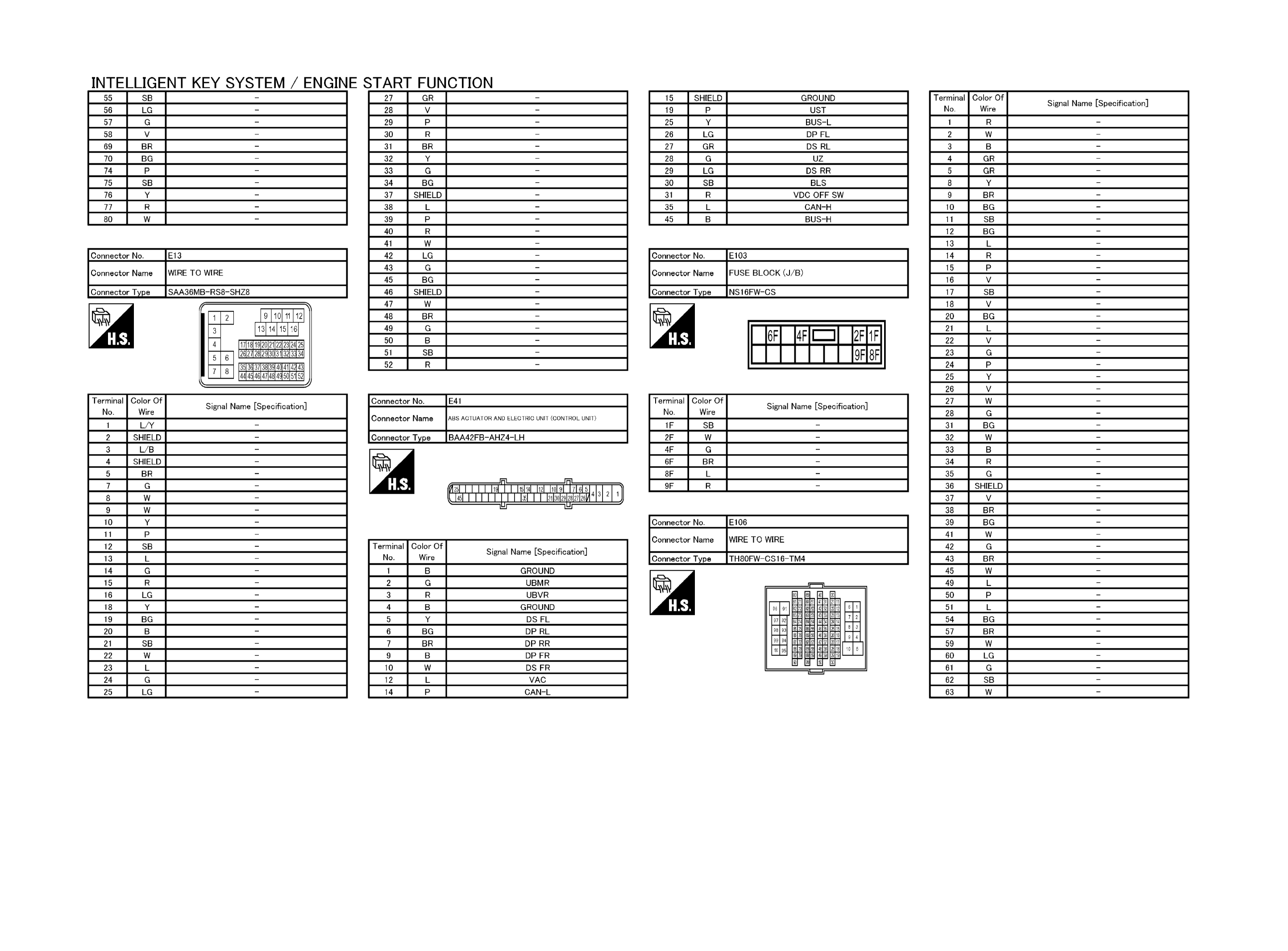

Fig 3: Intelligent Key System/Engine Start Function Connector End Views (3 Of 9)
GNSJRKWD4918GB-918Courtesy of NISSAN NORTH AMERICA, INC.

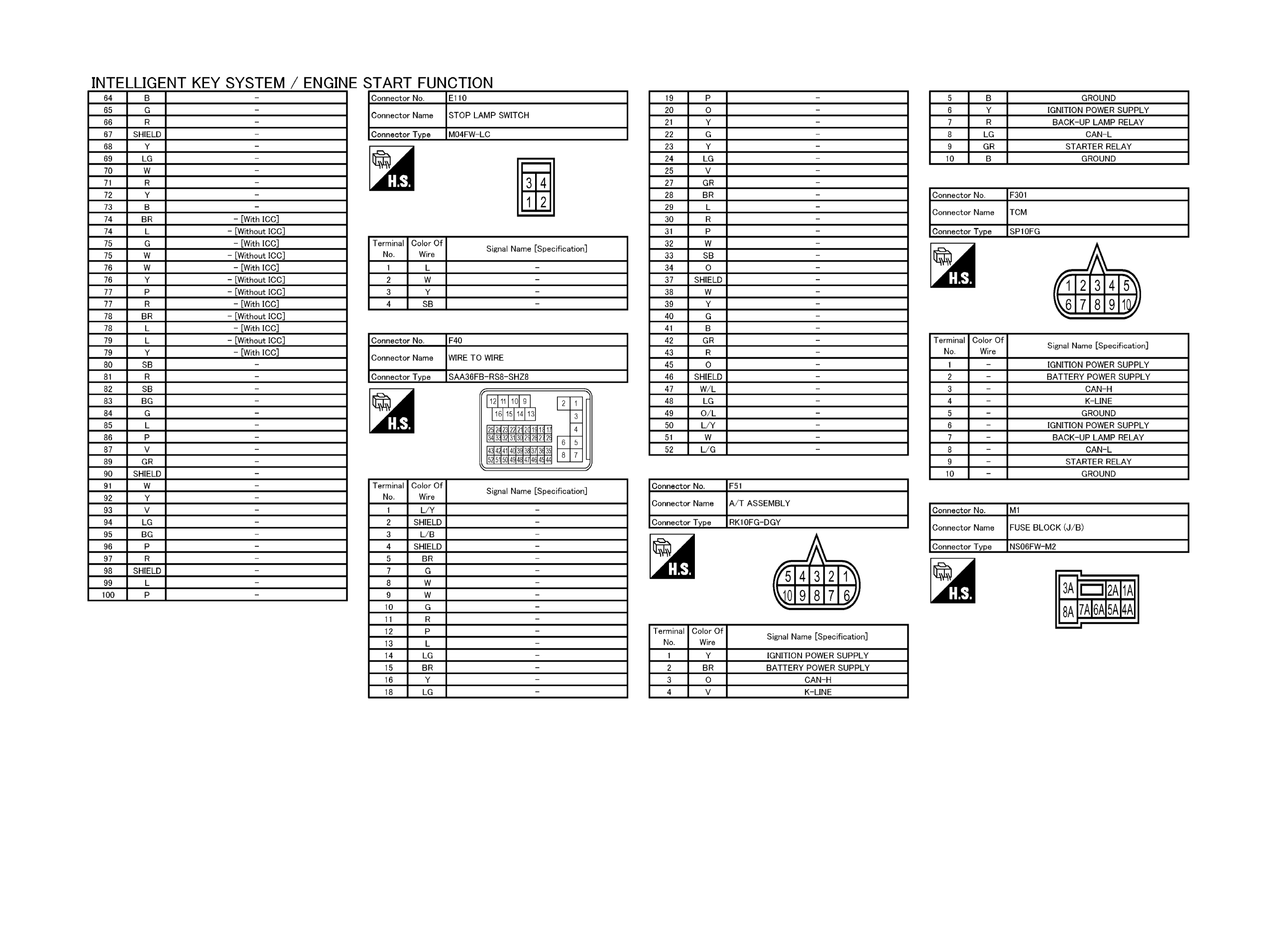

Fig 4: Intelligent Key System/Engine Start Function Connector End Views (4 Of 9)
GNSJRKWD4919GB-919Courtesy of NISSAN NORTH AMERICA, INC.

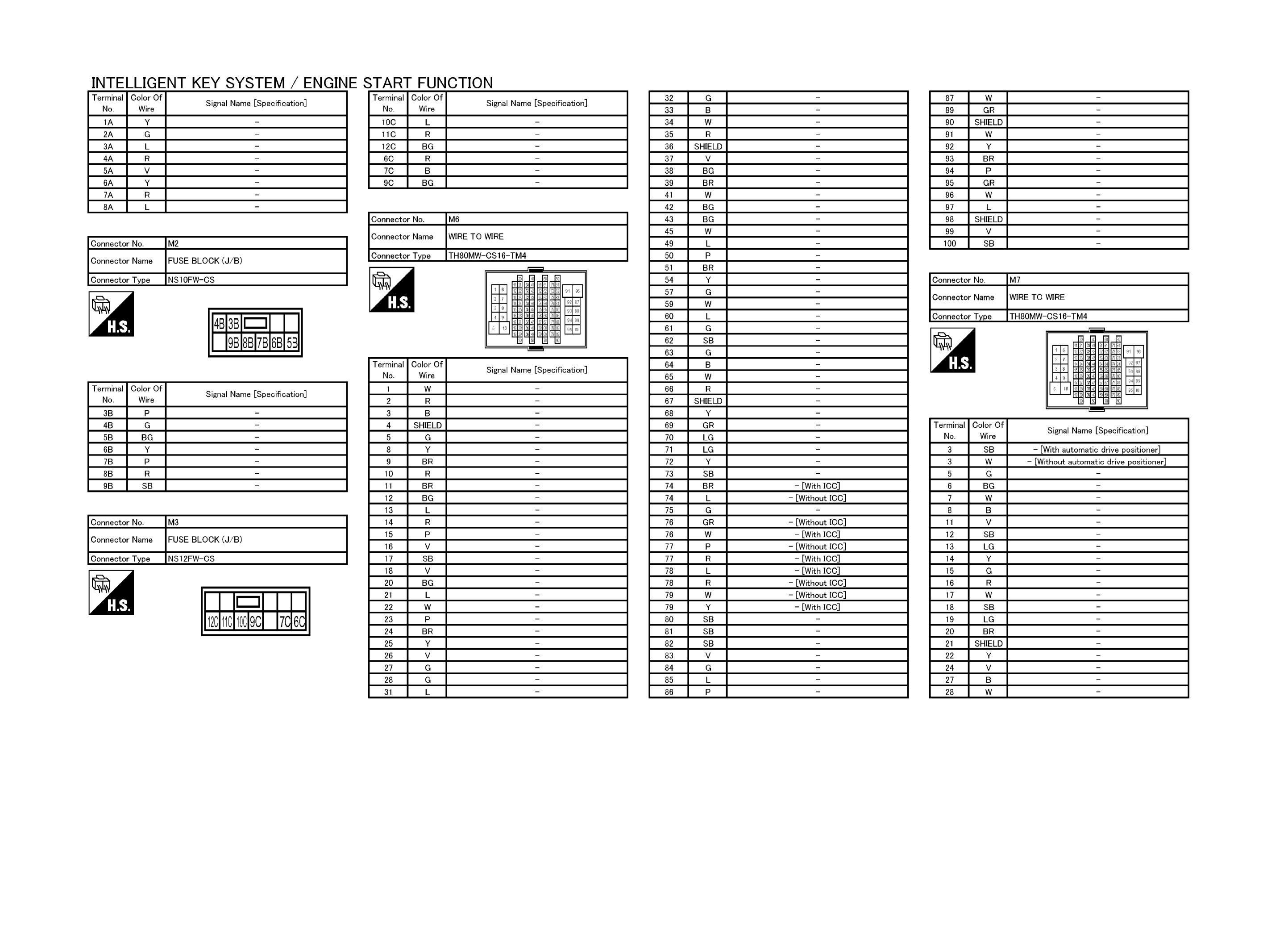

Fig 5: Intelligent Key System/Engine Start Function Connector End Views (5 Of 9)
GNSJRKWD4920GB-920Courtesy of NISSAN NORTH AMERICA, INC.

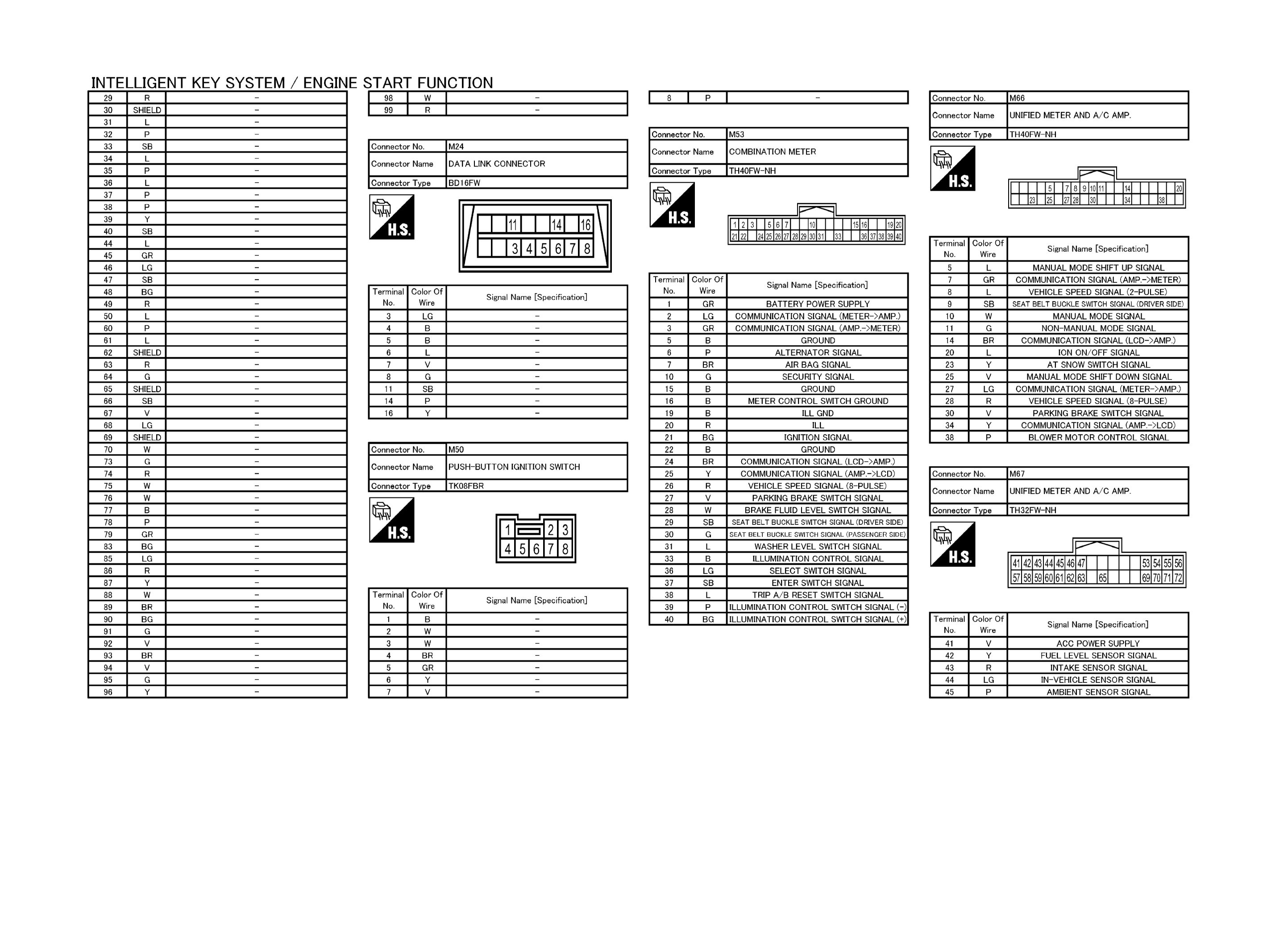

Fig 6: Intelligent Key System/Engine Start Function Connector End Views (6 Of 9)
GNSJRKWD4921GB-921Courtesy of NISSAN NORTH AMERICA, INC.

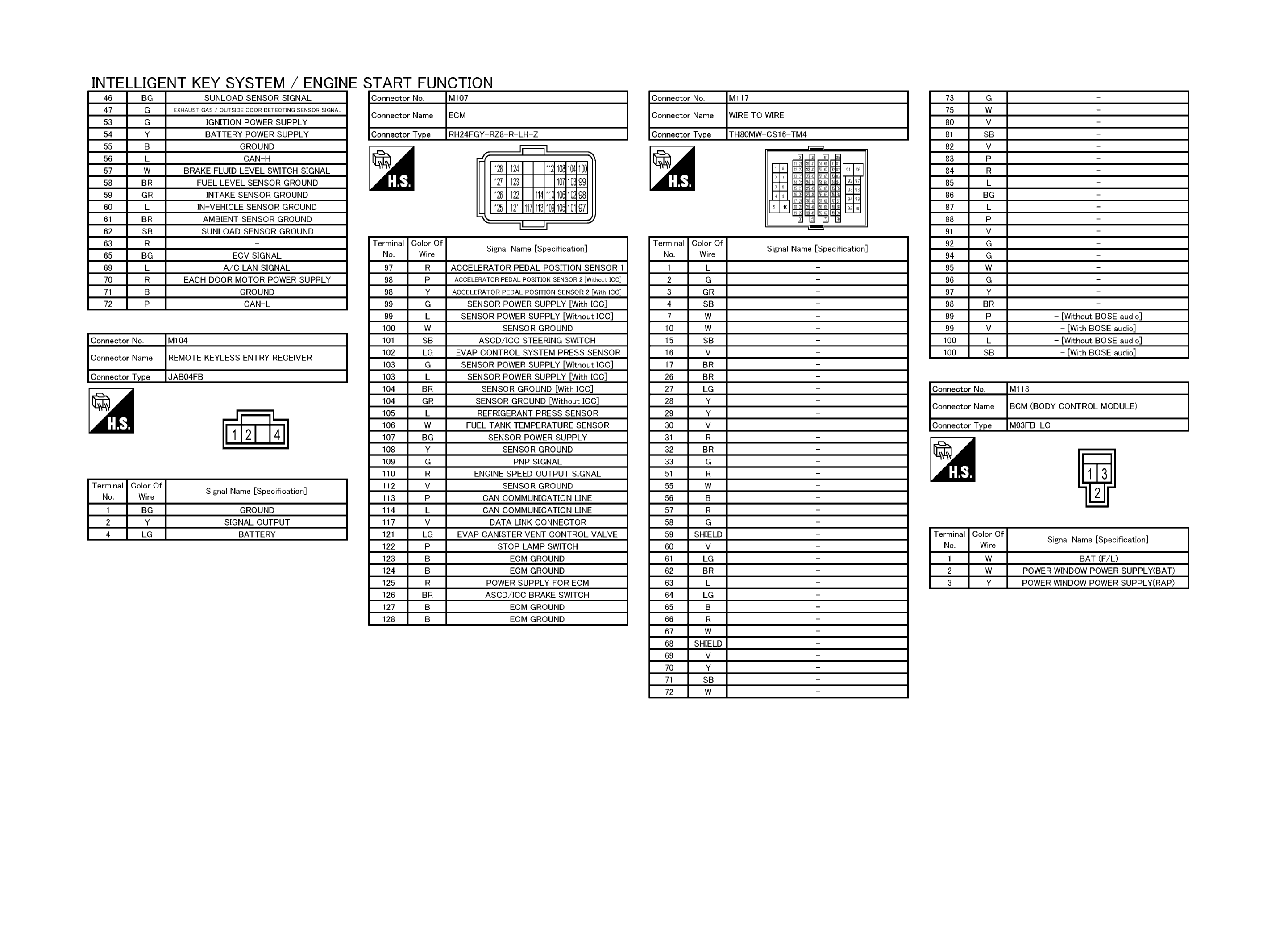

Fig 7: Intelligent Key System/Engine Start Function Connector End Views (7 Of 9)
GNSJRKWD4922GB-922Courtesy of NISSAN NORTH AMERICA, INC.

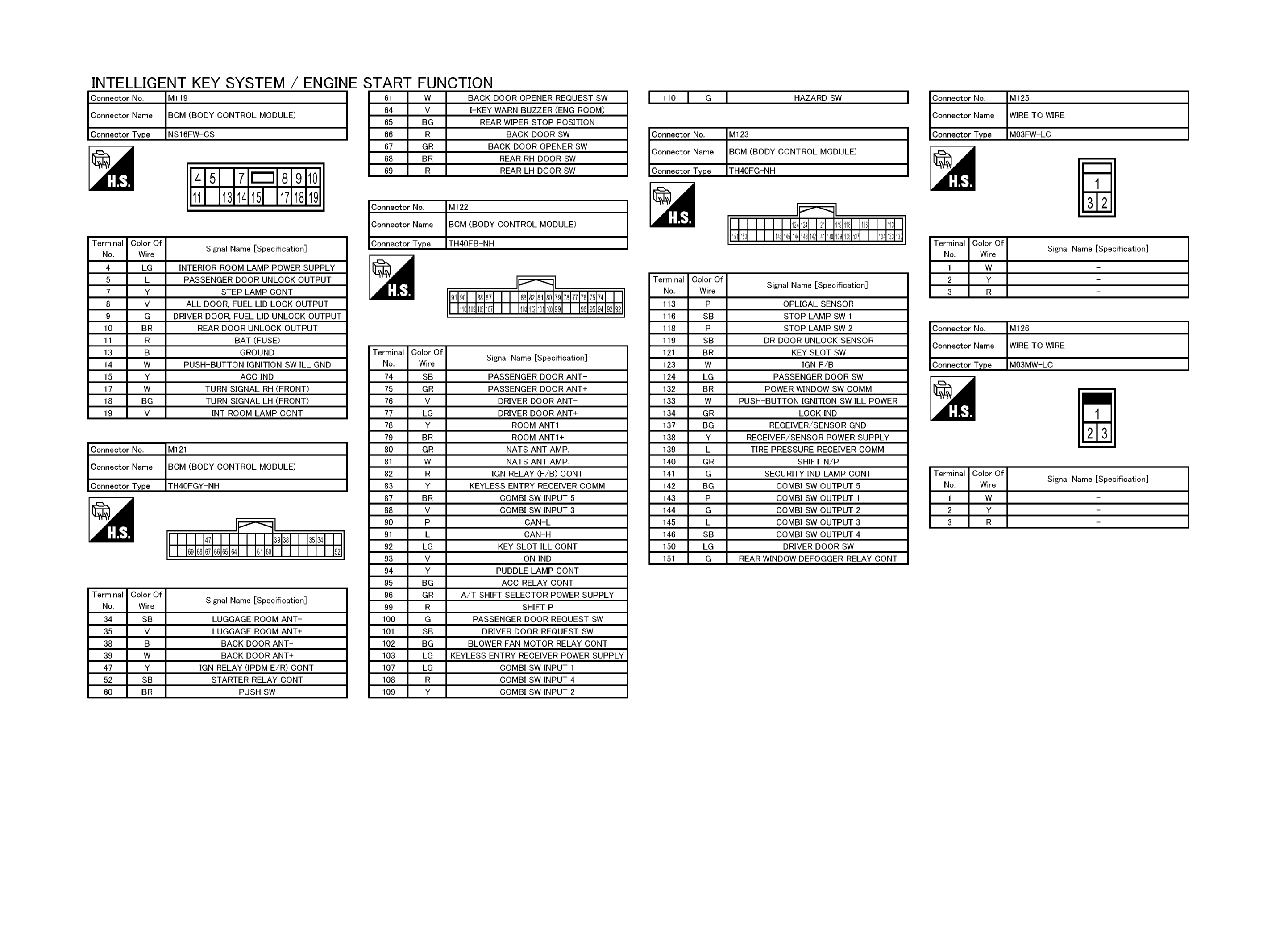

Fig 8: Intelligent Key System/Engine Start Function Connector End Views (8 Of 9)
GNSJRKWD4923GB-923Courtesy of NISSAN NORTH AMERICA, INC.

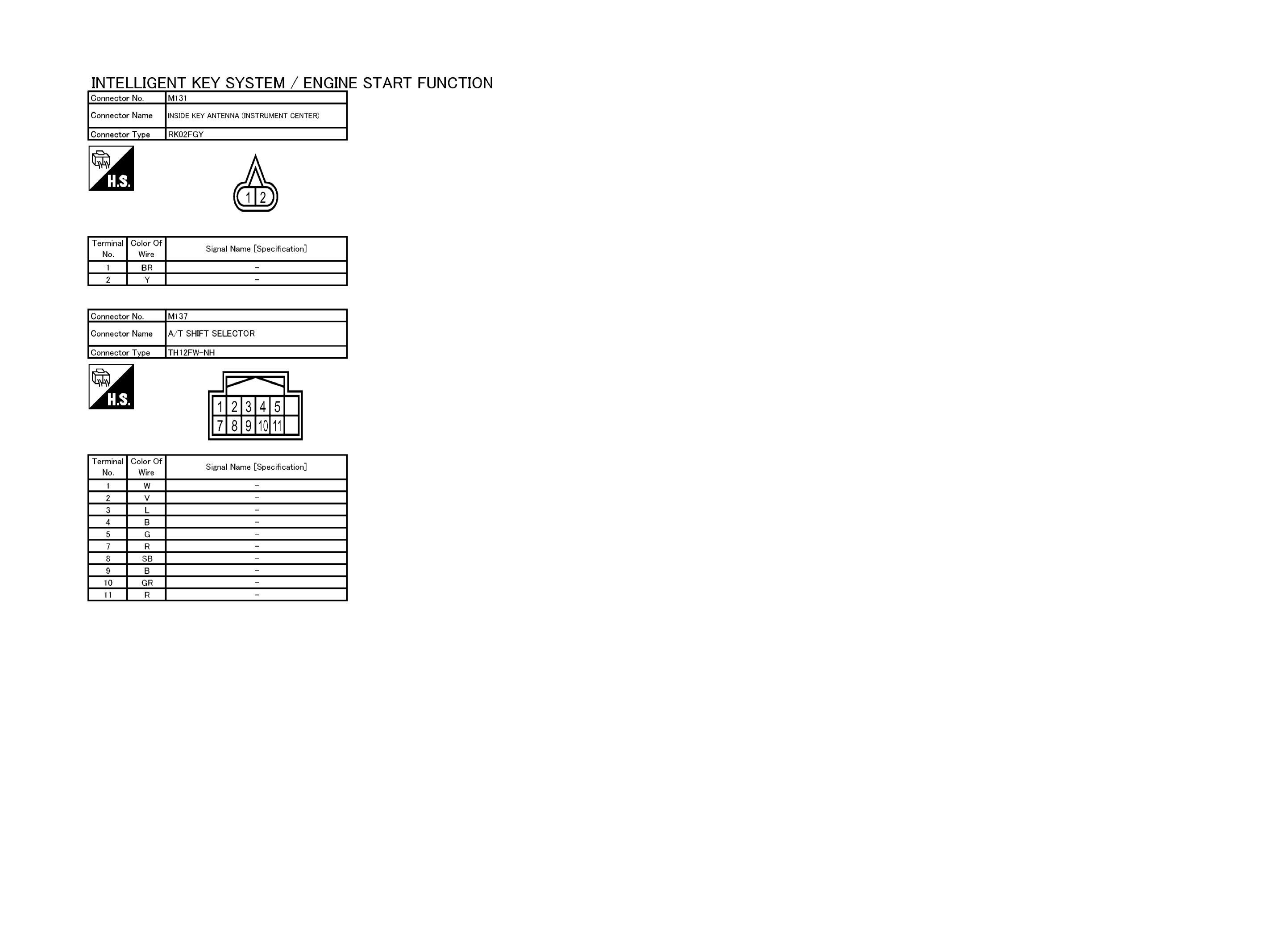

Fig 9: Intelligent Key System/Engine Start Function Connector End Views (9 Of 9)
GNSJRKWD4924GB-924Courtesy of NISSAN NORTH AMERICA, INC.
