Interior Compartment
WARNING: This page is about a different car, the 2015 Infiniti Q70. However, it is still accessible from the selected car via links, so may be relevant.

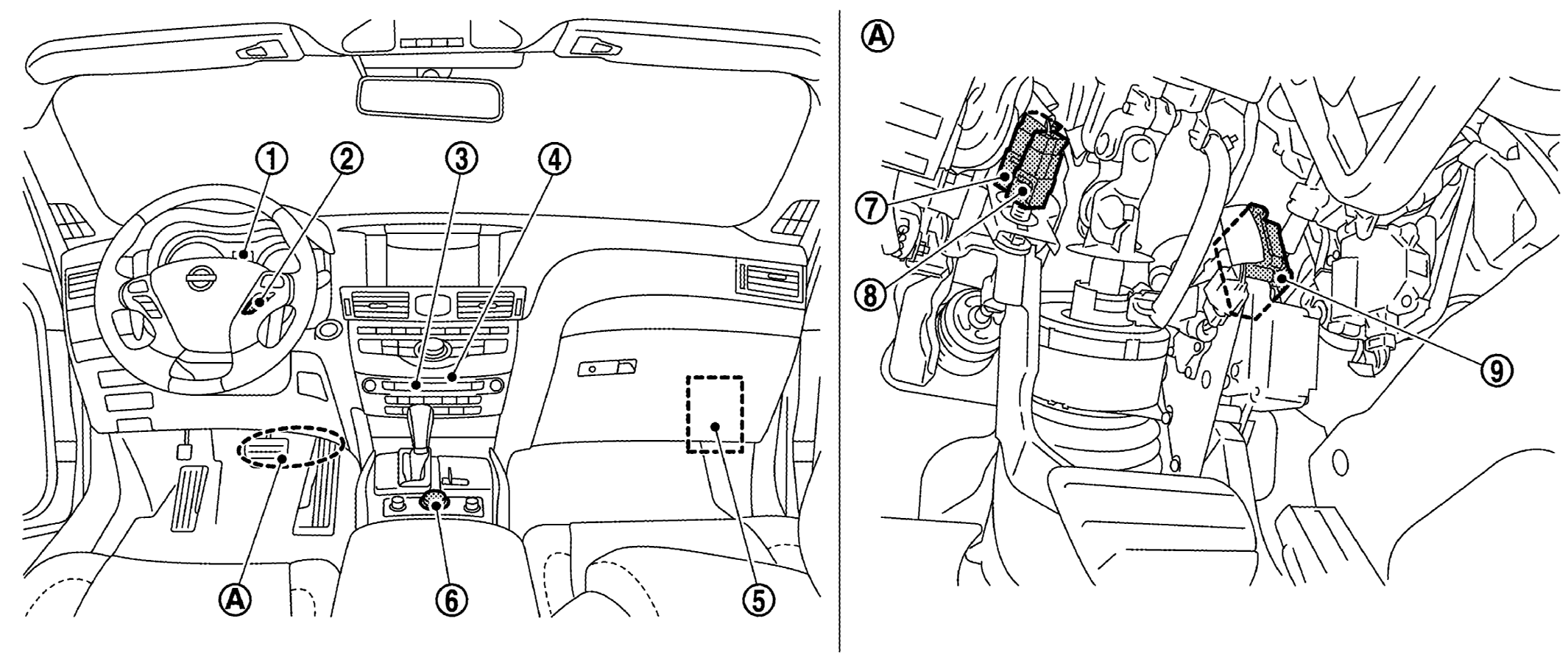

| A. | Periphery of pedals |
| No. | Component | Description |
|---|---|---|
| 1. | Combination meter | Performs the ON/OFF control of the indicator lamp, warning lamp, and the information display, according to signals received from HPCM via CAN communication. |
| 2. | ASCD steering switch | ASCD STEERING SWITCH |
| ICC steering switch | ICC STEERING SWITCH | |
| 3. | A/C auto amp. | Controls the air-conditioning system (e.g. electric compressor, blower fan motor), according to a command from HPCM. For details of installation position, refer to COMPONENTS LOCATION . |
| 4. | AV control unit | Displays a vehicle status on the display screen, according to signals received from HPCM. For details of installation position, refer to COMPONENTS LOCATION . |
| 5. | BCM |
|
| 6. | Drive mode select switch | DRIVE MODE SELECT SWITCH For details of installation position, refer to COMPONENTS LOCATION . |
| 7. | Brake switch | BRAKE SWITCH & STOP LAMP SWITCH |
| 8. | Stop lamp switch | |
| 9. | Accelerator pedal position switch | ACCELERATOR PEDAL POSITION SENSOR |
