Component Parts Location

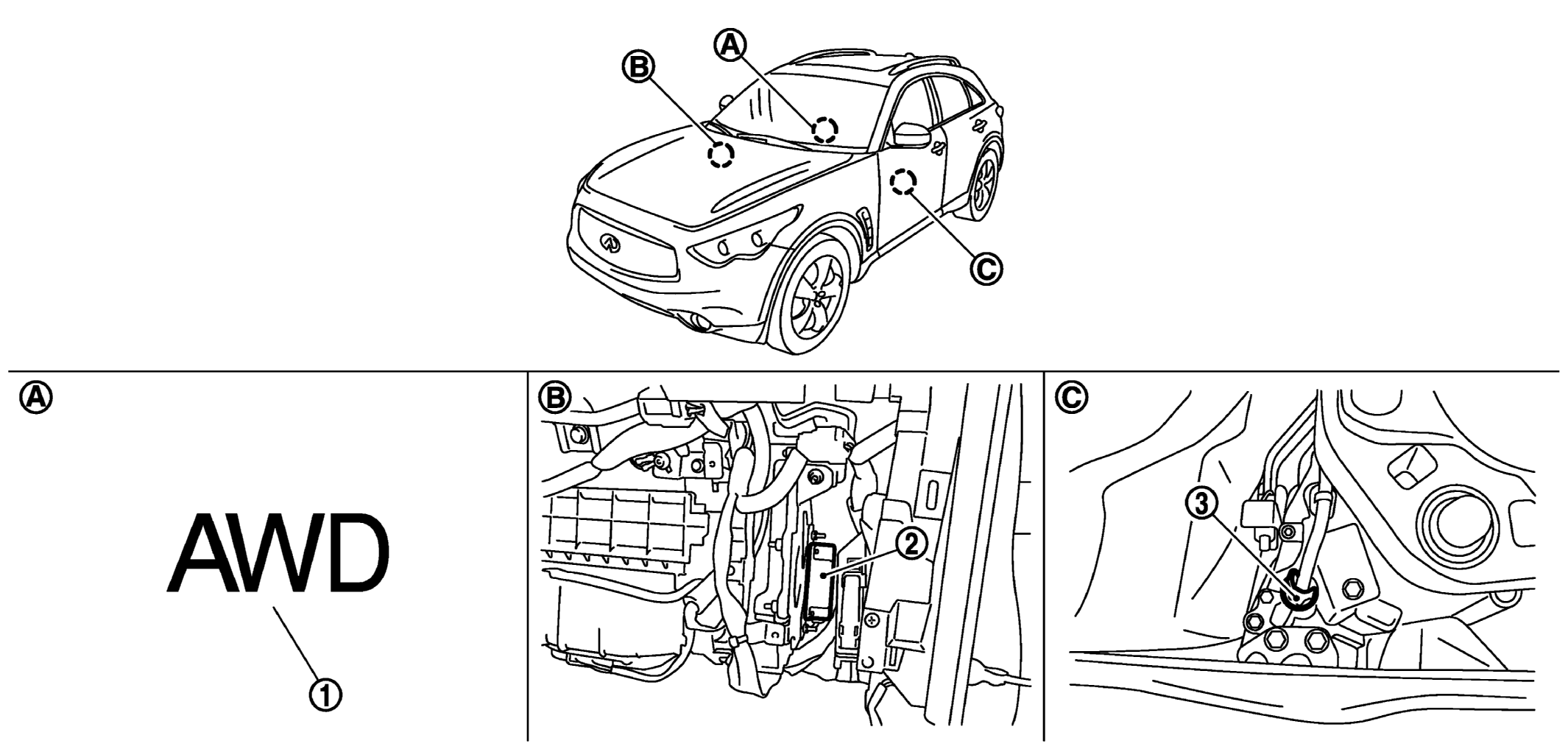

Fig 1: AWD System Components Location
G09002515Courtesy of NISSAN NORTH AMERICA, INC.
1. AWD Warning Lamp 2. AWD Control Unit 3. AWD Solenoid Harness Connector
A. Combination Meter B. Glove Box Assembly Removed C. Transfer Assembly
