Home
>>
Infiniti
>>
2016
>>
Q50 Base, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Driver Assistance System (Chassis Control) (Except Hybrid)
>>
System Description
>>
System
>>

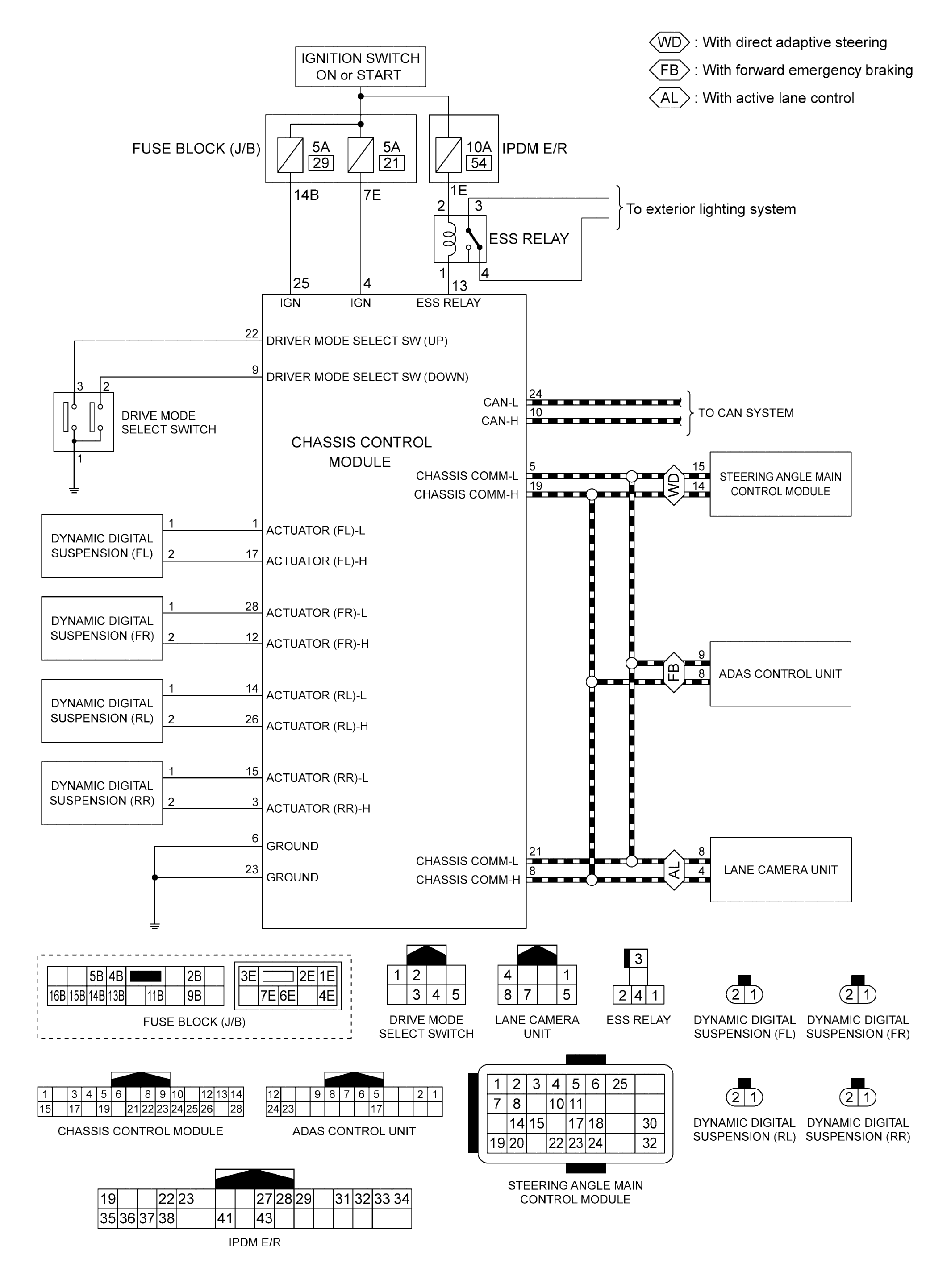

Circuit Diagram
>>
Models With Digital Motion Control
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Models With Digital Motion Control
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
