Reminder Function (Intelligent Key)
OPERATION DESCRIPTION
When doors are locked or unlocked by Intelligent Key button operation, BCM blinks hazard warning lamps as a reminder and transmits horn reminder signal to IPDM E/R via CAN communication. The reminder function has C mode and S mode.
| Operation | C mode | S mode | ||
|---|---|---|---|---|
| Intelligent Key Operation | Lock | Unlock | Lock | Unlock |
| Hazard warning lamp blinks | Twice | One | Twice | - |
| Horn sound | One | - | - | - |
OPERATION CONDITION
- Reminder function does not operate if ignition switch in ACC or ON position.
- When any door is open, reminder function does not operate according to door lock operation.
How to Change Reminder Function Operation Mode
With CONSULT
Reminder function operation mode can be changed using CONSULT.
Refer to CONSULT FUNCTION (BCM - INTELLIGENT KEY) .
Without CONSULT

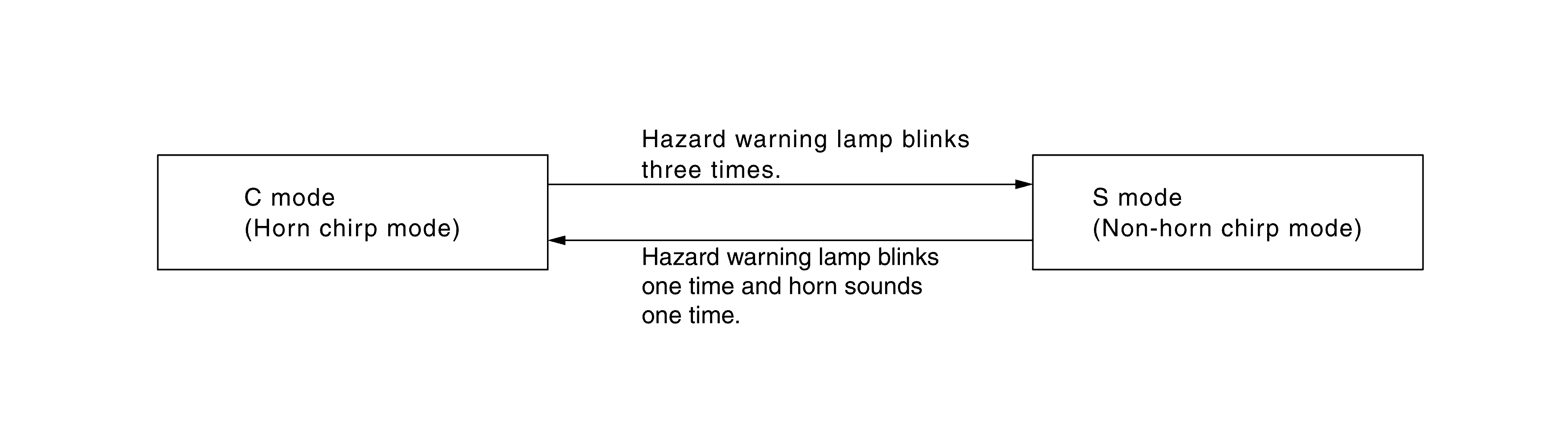

When lock and unlock signal are sent from the Intelligent Key for more than 4 seconds at the same time, the hazard and buzzer reminder mode is changed and hazard warning lamp blinks and horn sounds as per the following items:
