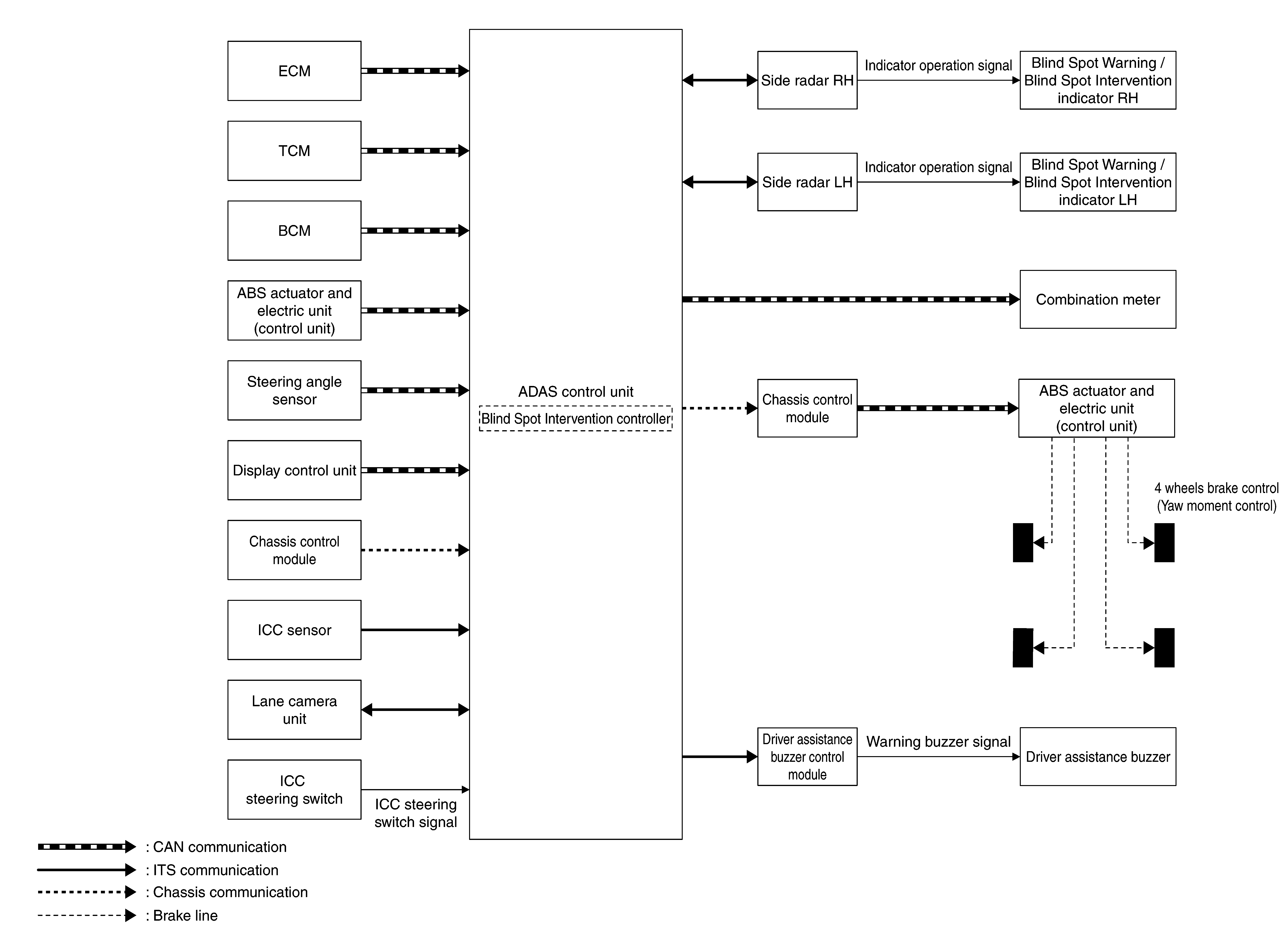

System Diagram

GNSJSOIA0901GB-901Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:

TCM is connected to drivetrain CAN communication and transmits a CAN communication signal to ADAS control unit via ECM.
