Direct Adaptive Steering: Wiring Diagram

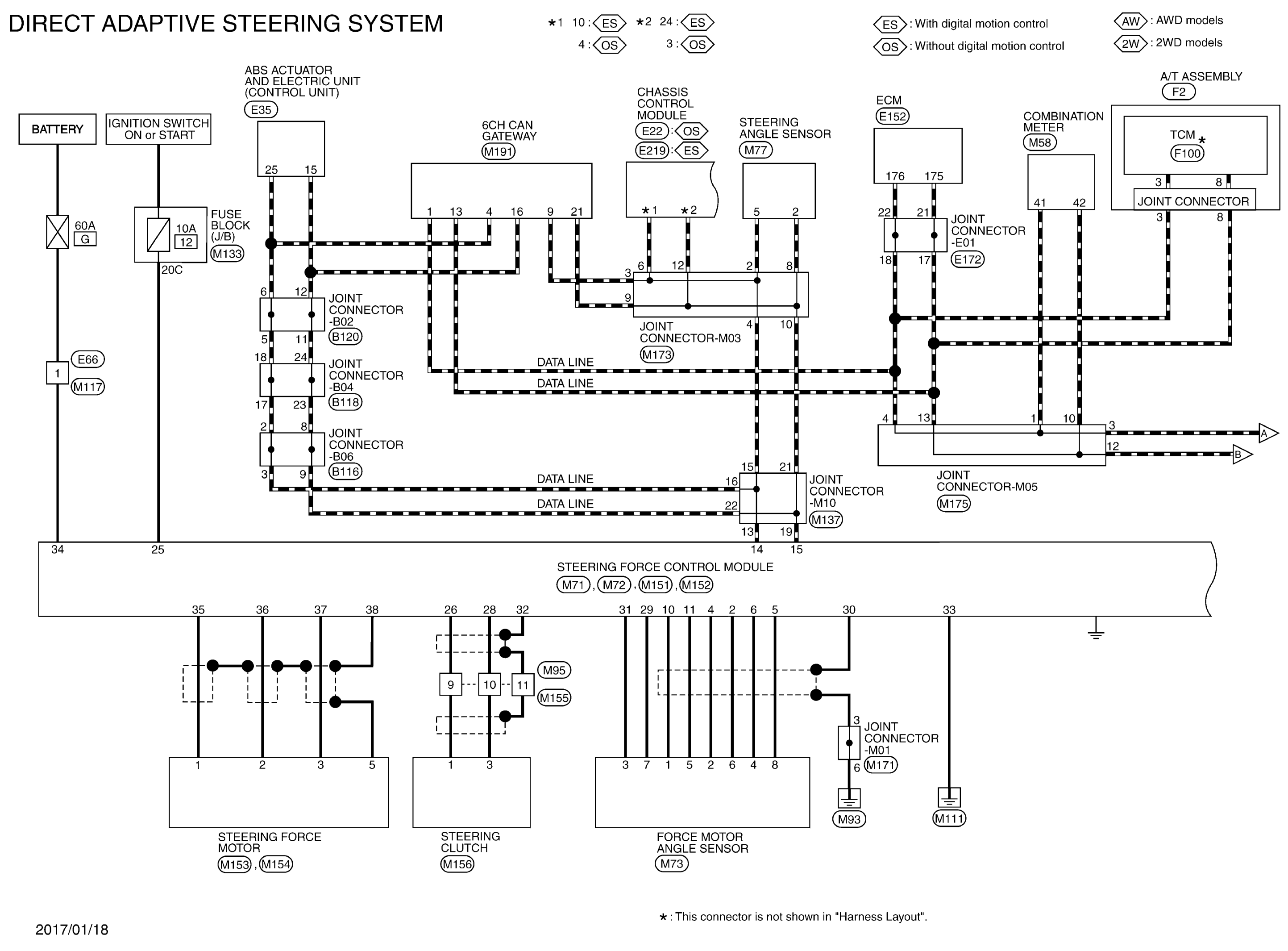

GNSJRGWC4421GB-421

Courtesy of NISSAN NORTH AMERICA, INC.

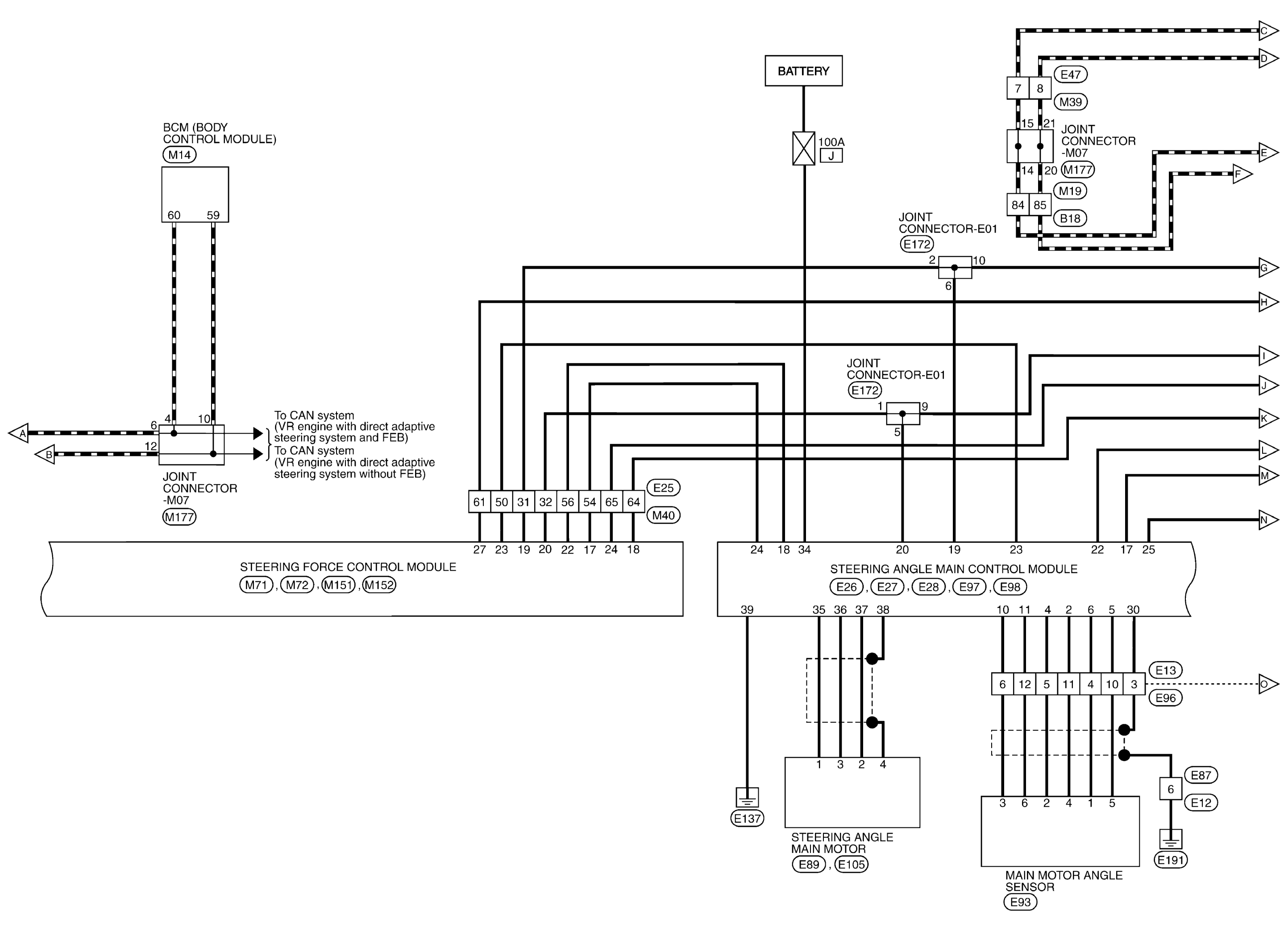

GNSJRGWC4422GB-422

Courtesy of NISSAN NORTH AMERICA, INC.

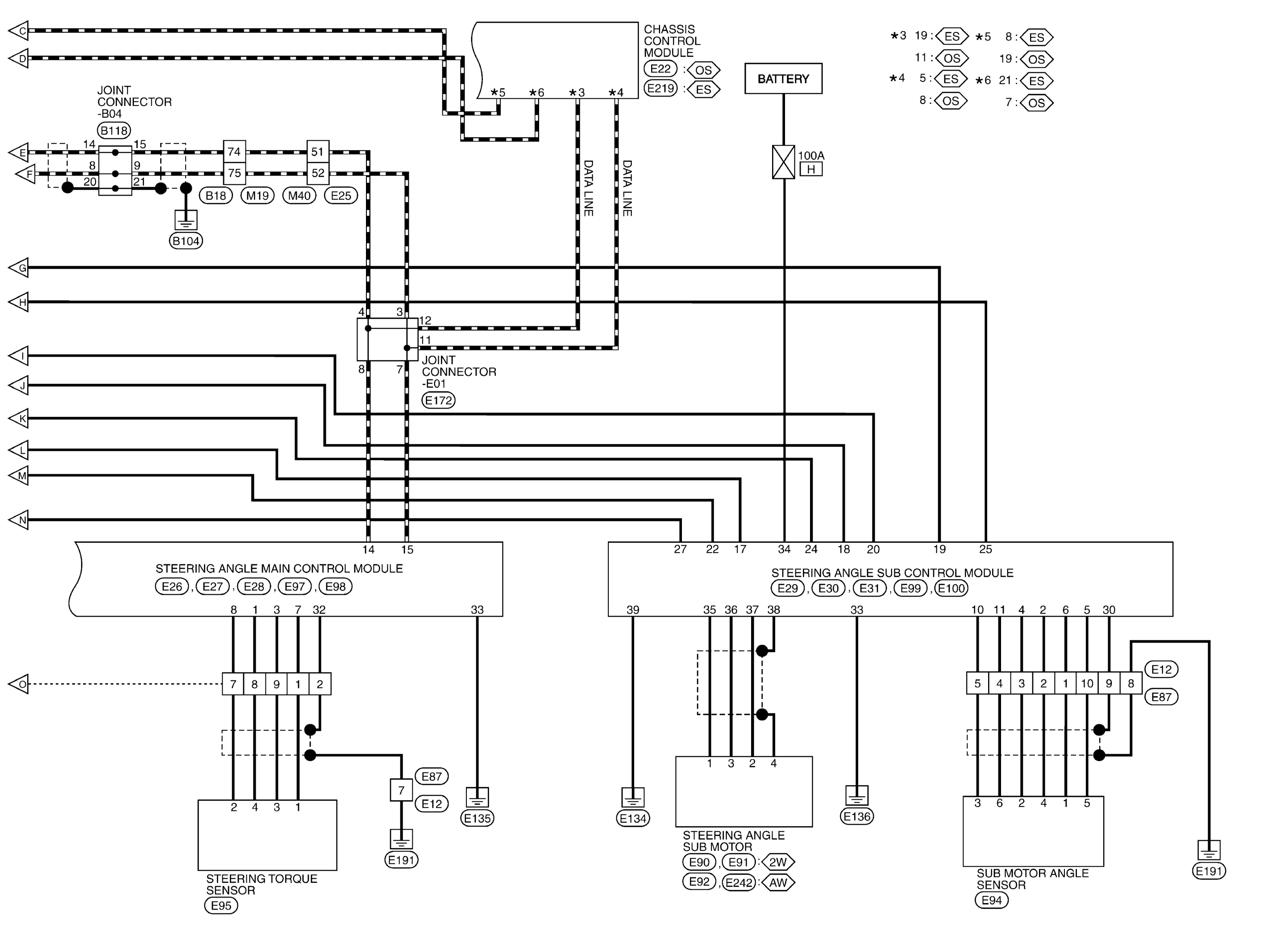

GNSJRGWC4423GB-423

Courtesy of NISSAN NORTH AMERICA, INC.

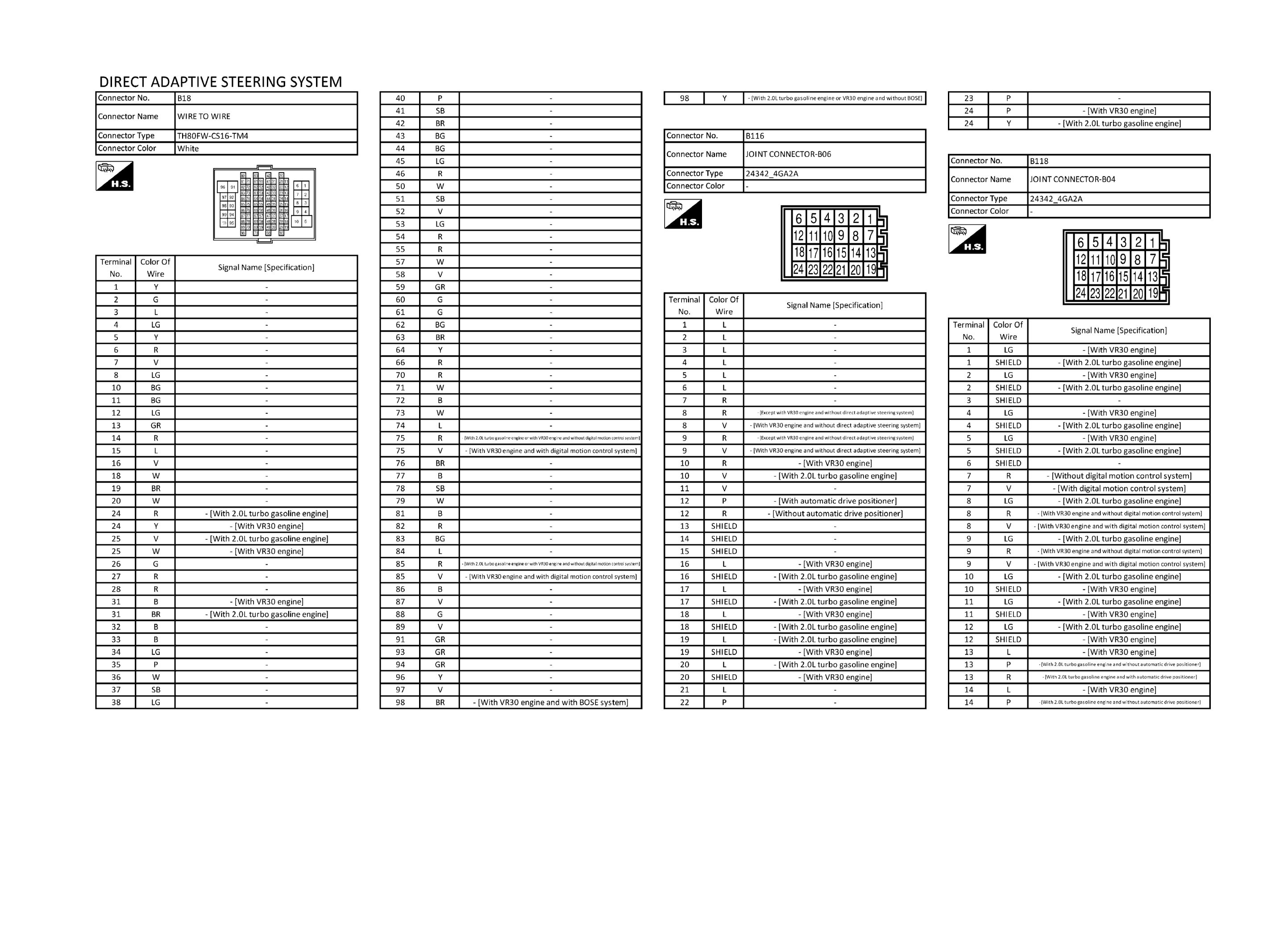

GNSJRGWC4424GB-424

Courtesy of NISSAN NORTH AMERICA, INC.

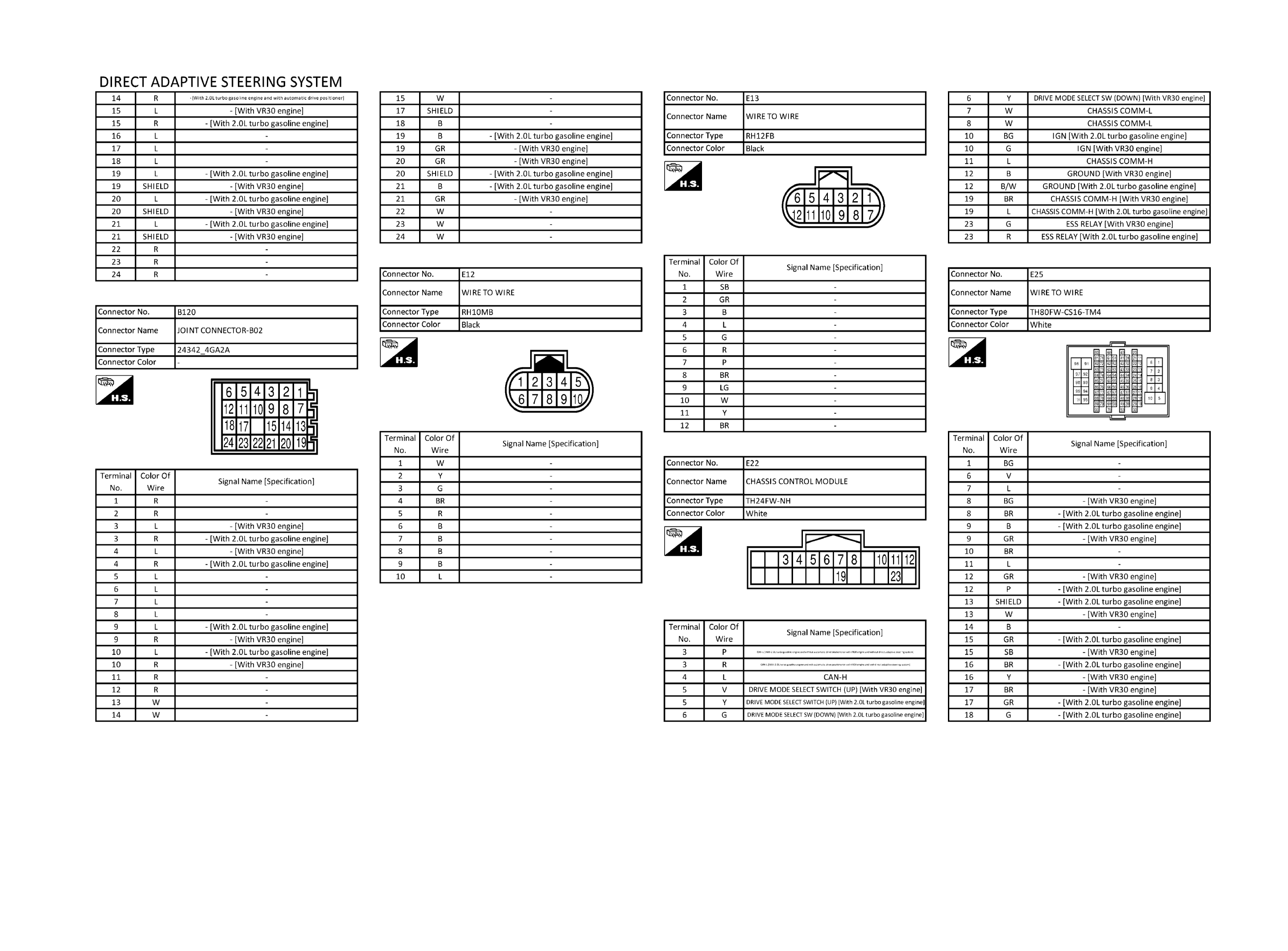

GNSJRGWC4425GB-425

Courtesy of NISSAN NORTH AMERICA, INC.

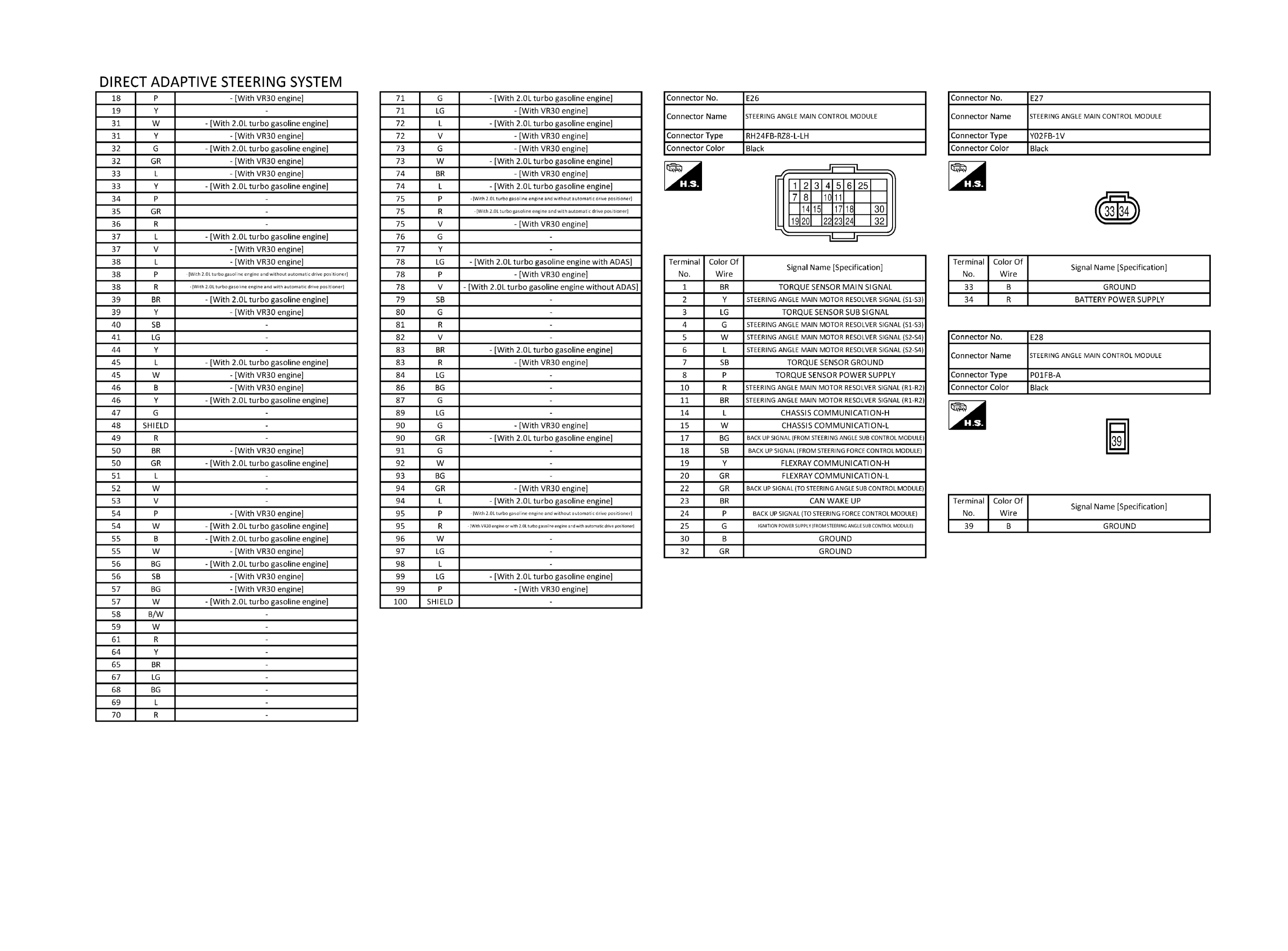

GNSJRGWC4426GB-426

Courtesy of NISSAN NORTH AMERICA, INC.

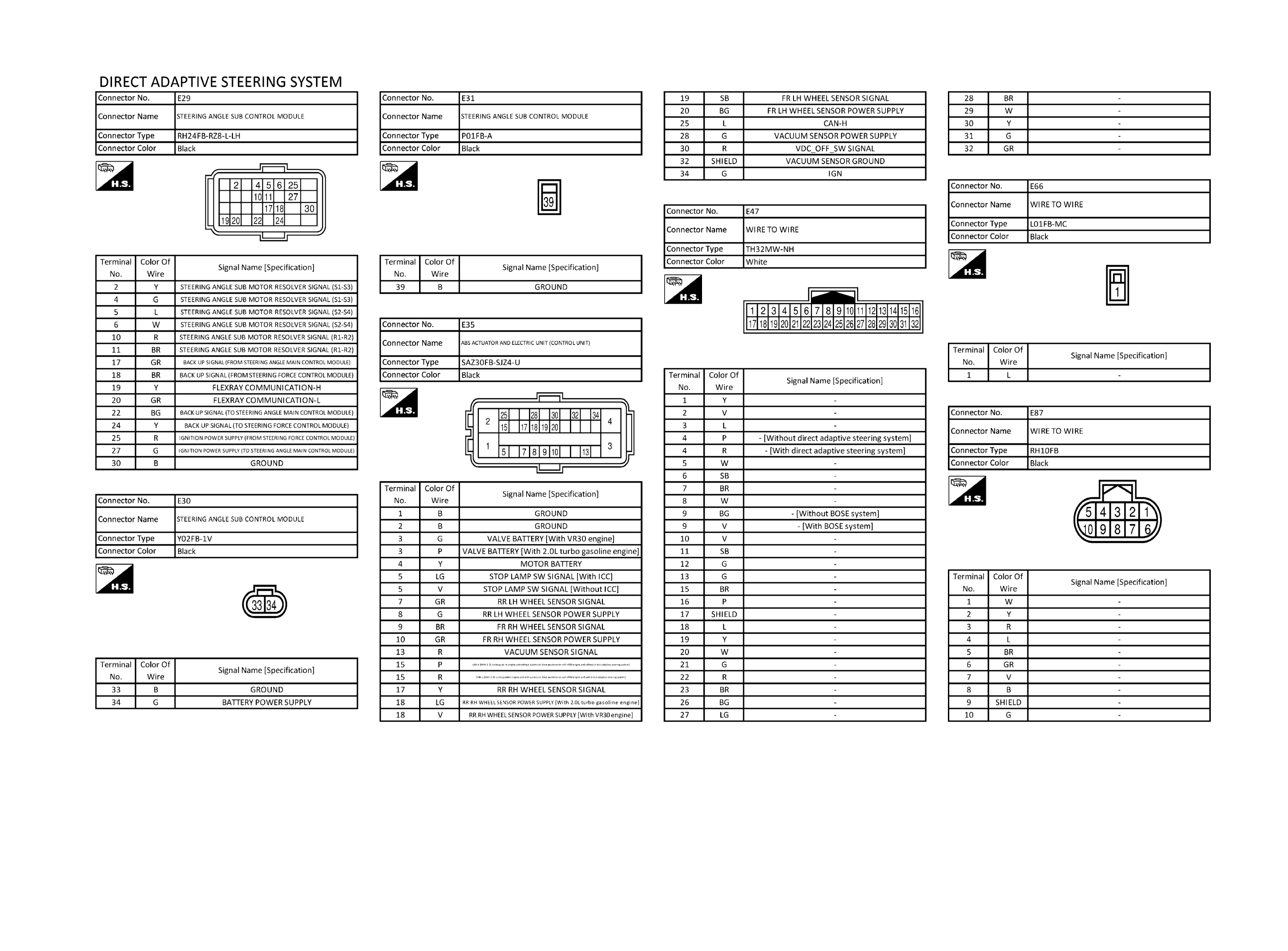

GNSJRGWC4427GB-427

Courtesy of NISSAN NORTH AMERICA, INC.

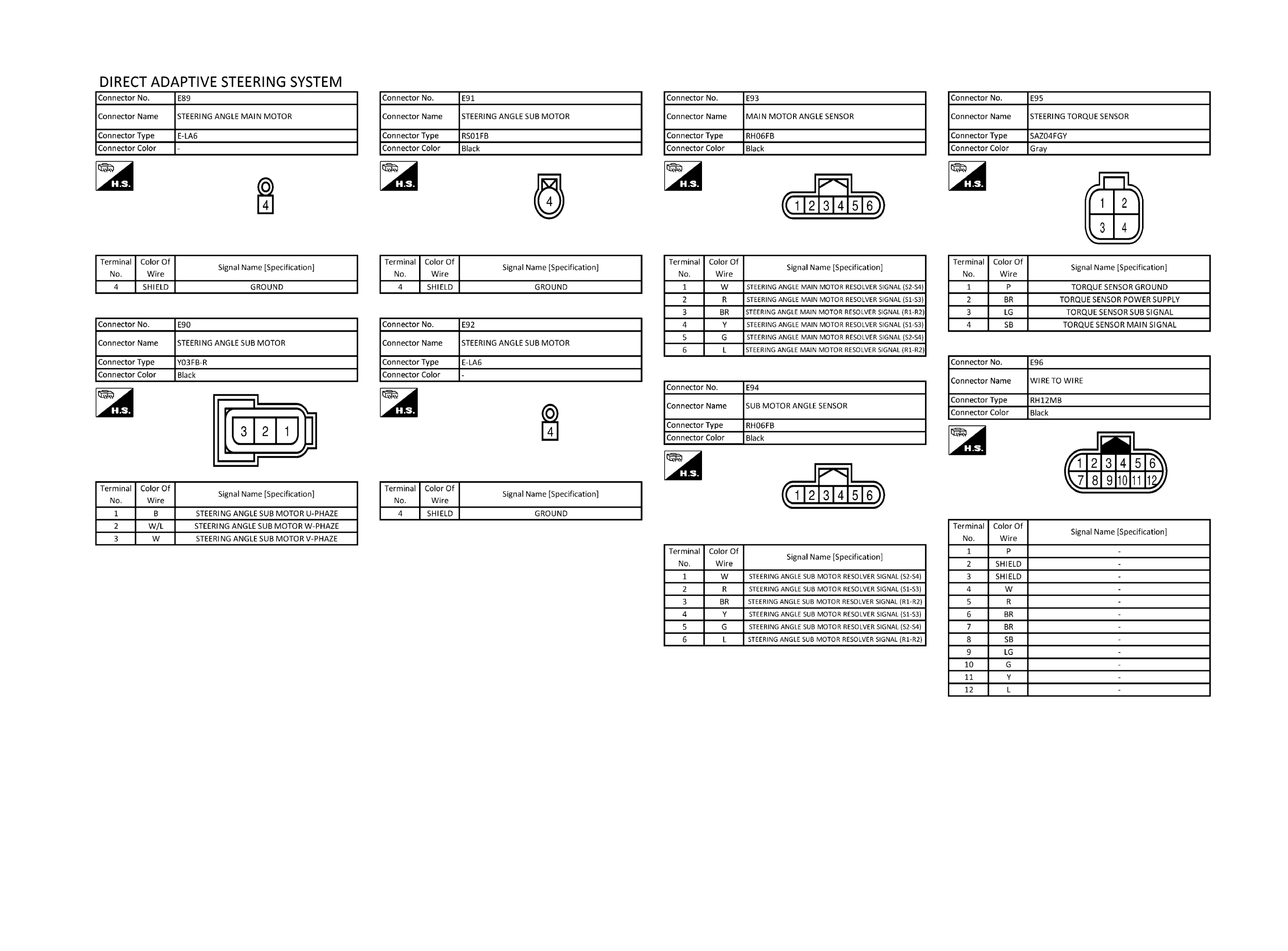

GNSJRGWC4428GB-428

Courtesy of NISSAN NORTH AMERICA, INC.

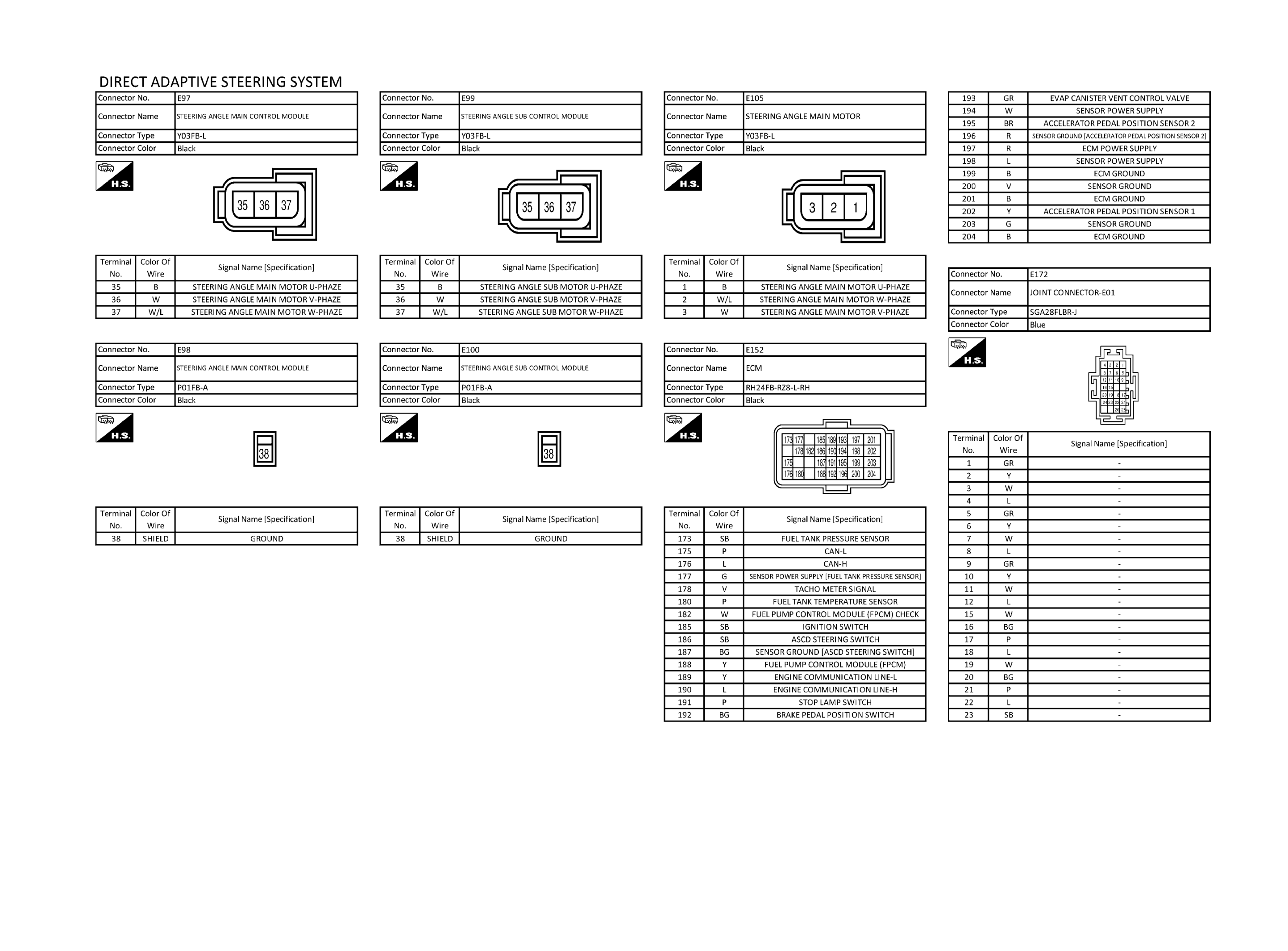

GNSJRGWC4429GB-429

Courtesy of NISSAN NORTH AMERICA, INC.

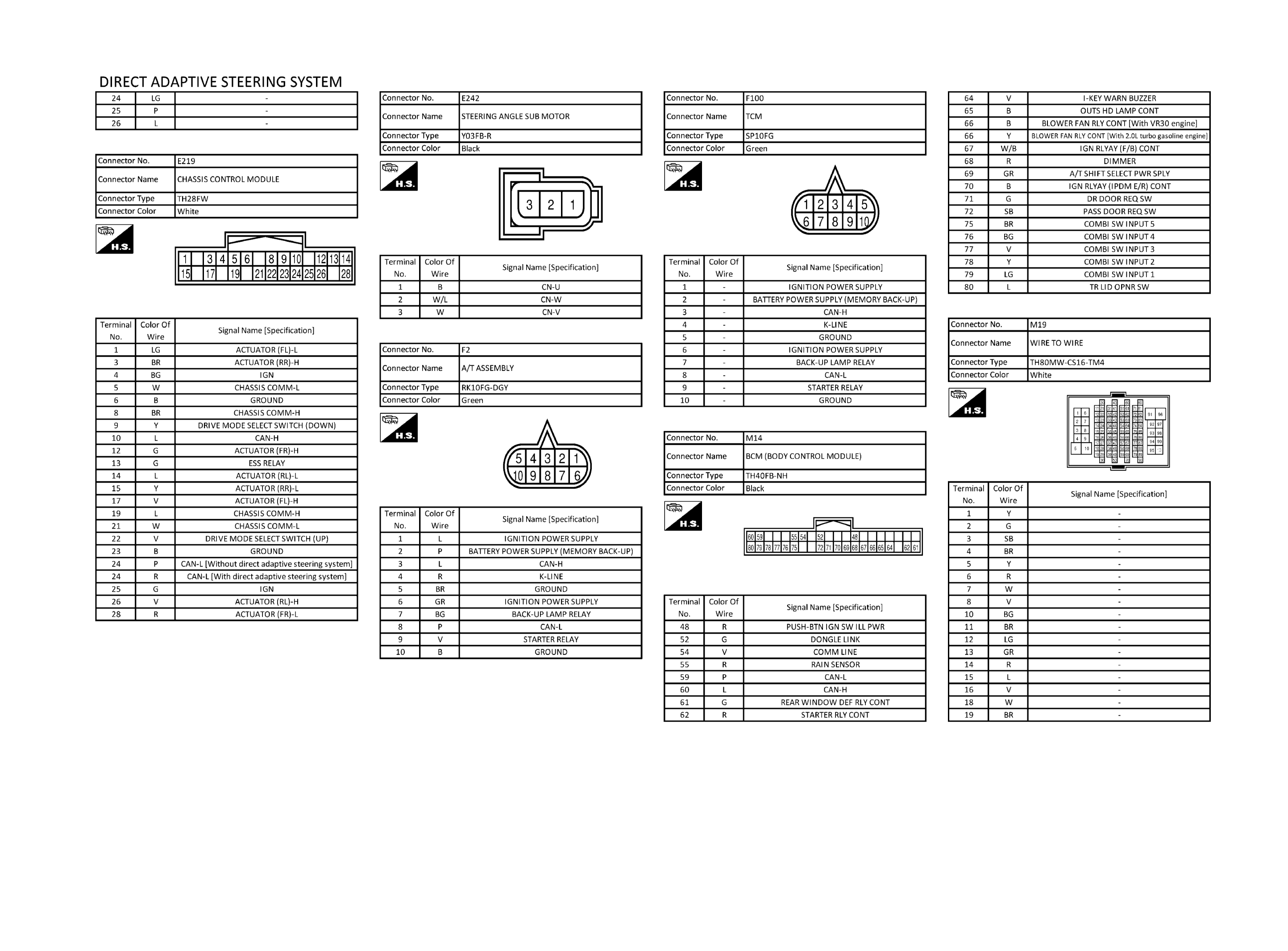

GNSJRGWC4430GB-430

Courtesy of NISSAN NORTH AMERICA, INC.

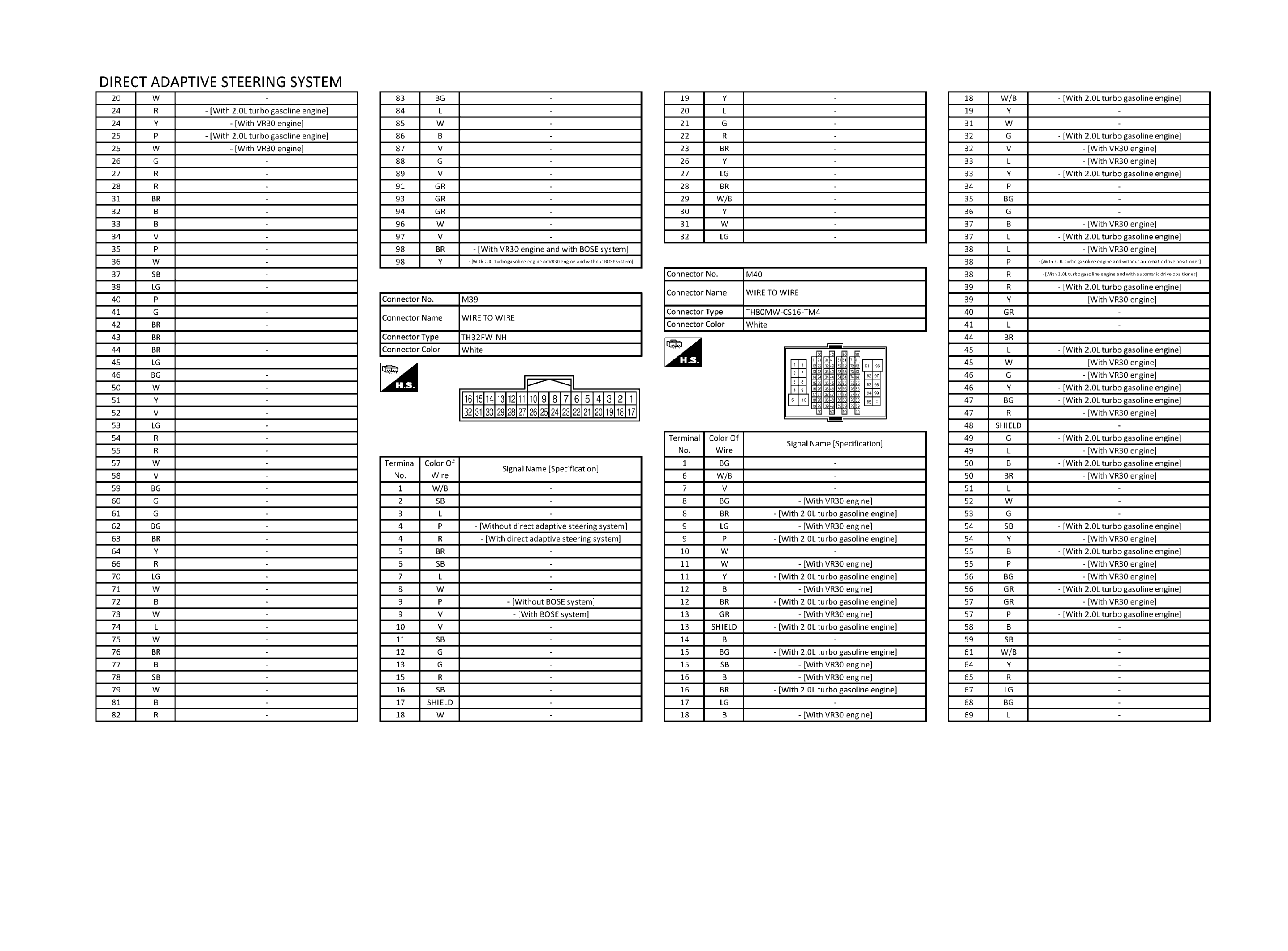

GNSJRGWC4431GB-431

Courtesy of NISSAN NORTH AMERICA, INC.

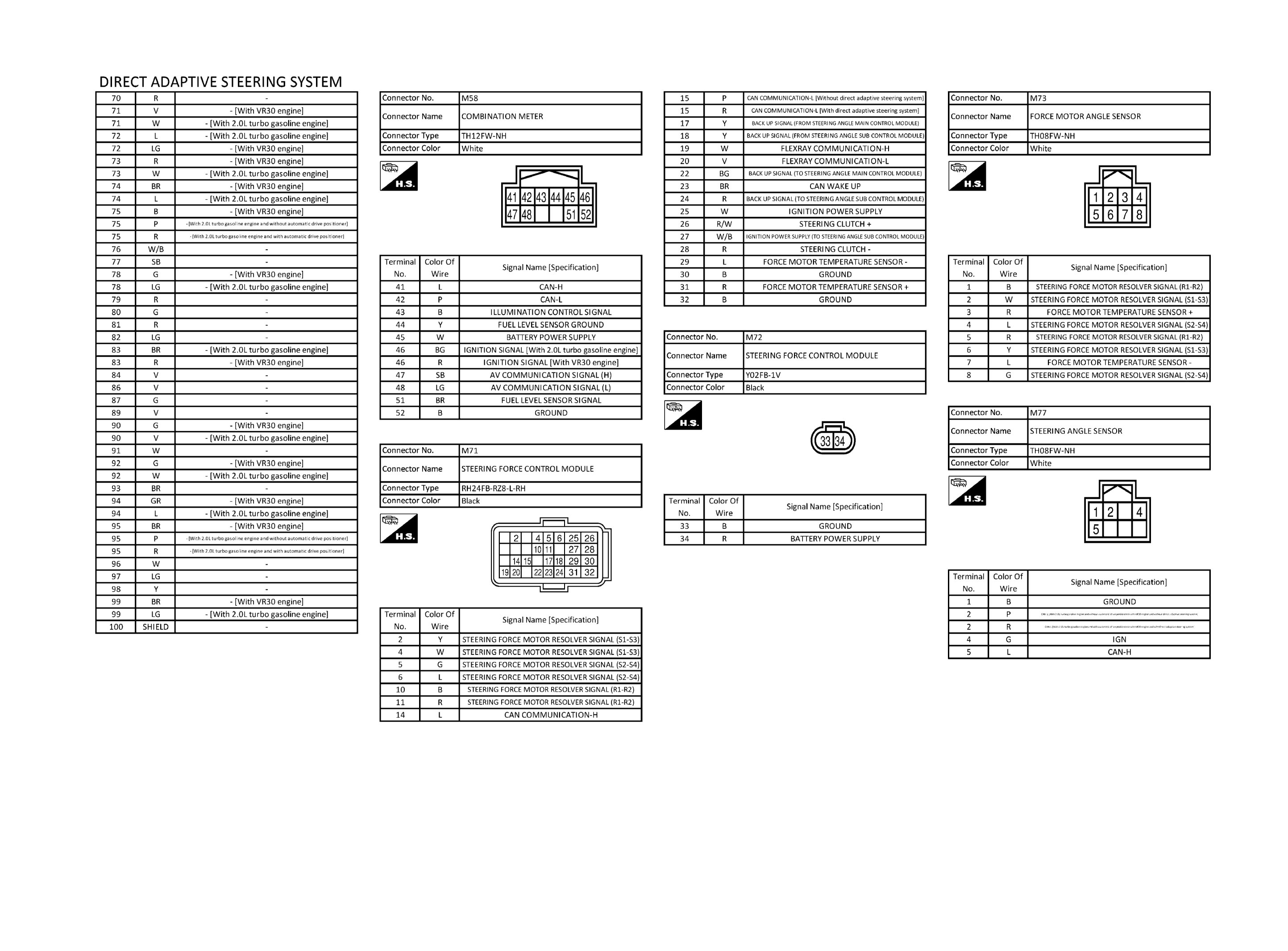

GNSJRGWC4432GB-432

Courtesy of NISSAN NORTH AMERICA, INC.

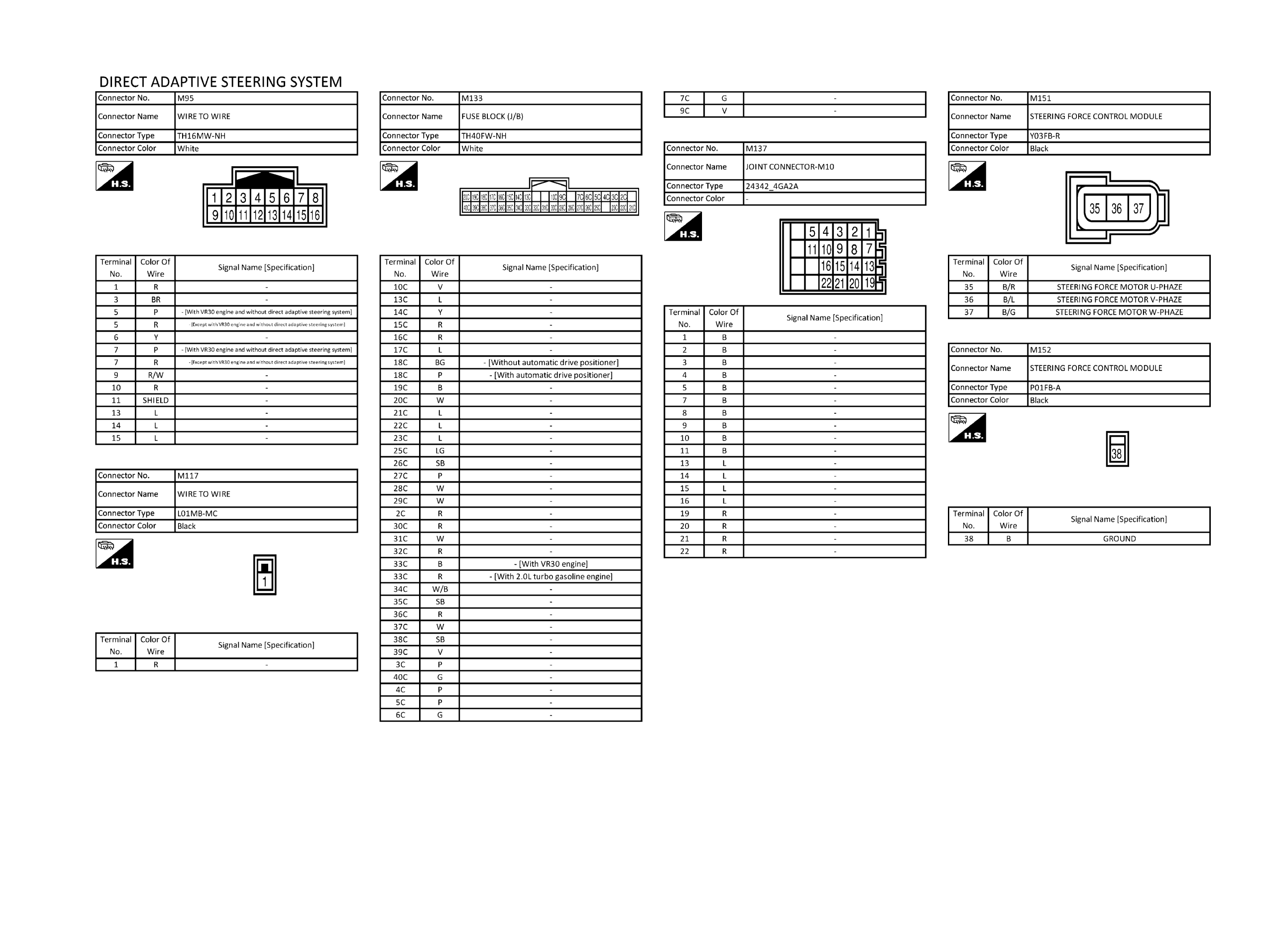

GNSJRGWC4433GB-433

Courtesy of NISSAN NORTH AMERICA, INC.

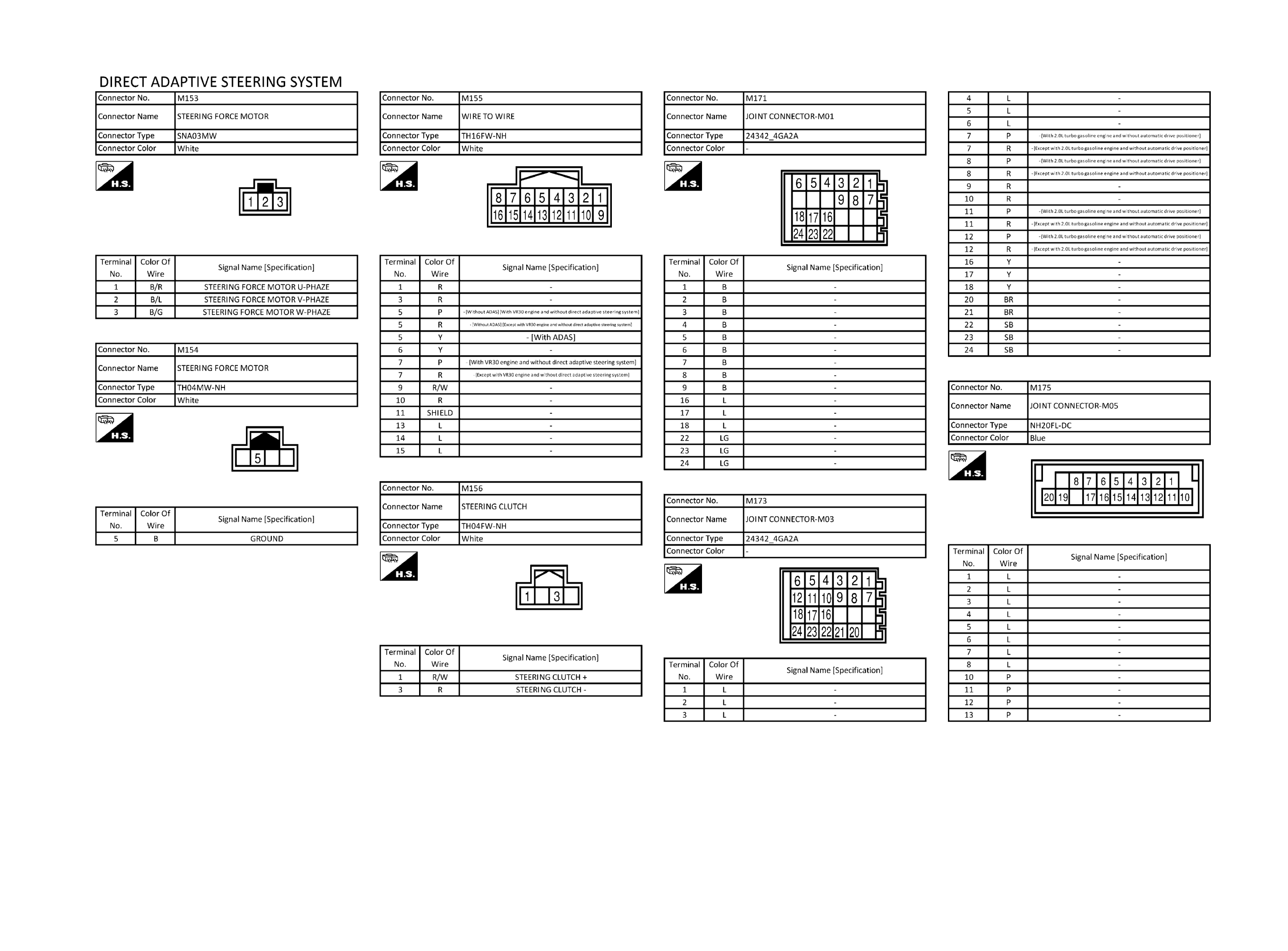

GNSJRGWC4434GB-434

Courtesy of NISSAN NORTH AMERICA, INC.

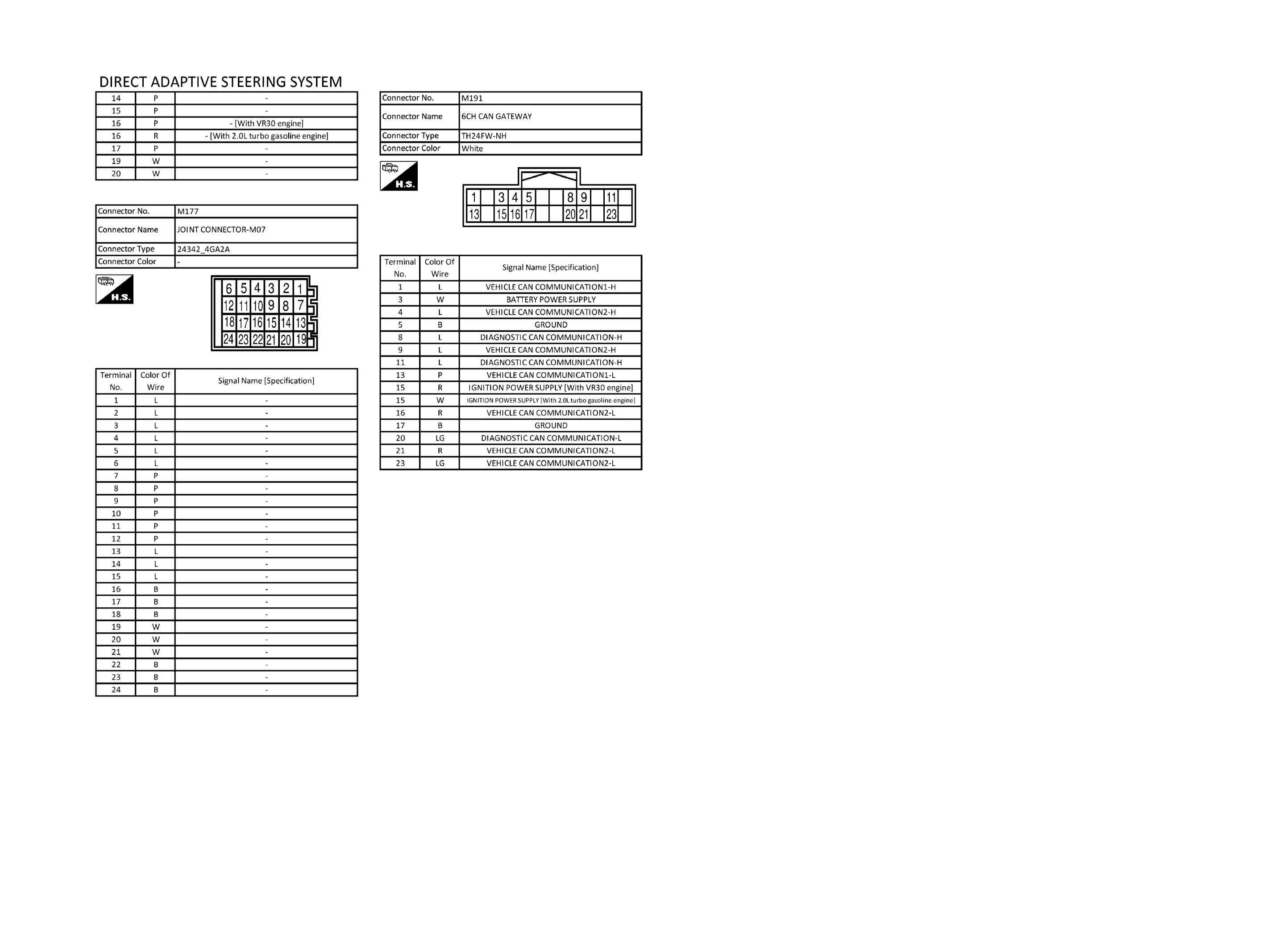

GNSJRGWC4435GB-435

Courtesy of NISSAN NORTH AMERICA, INC.
