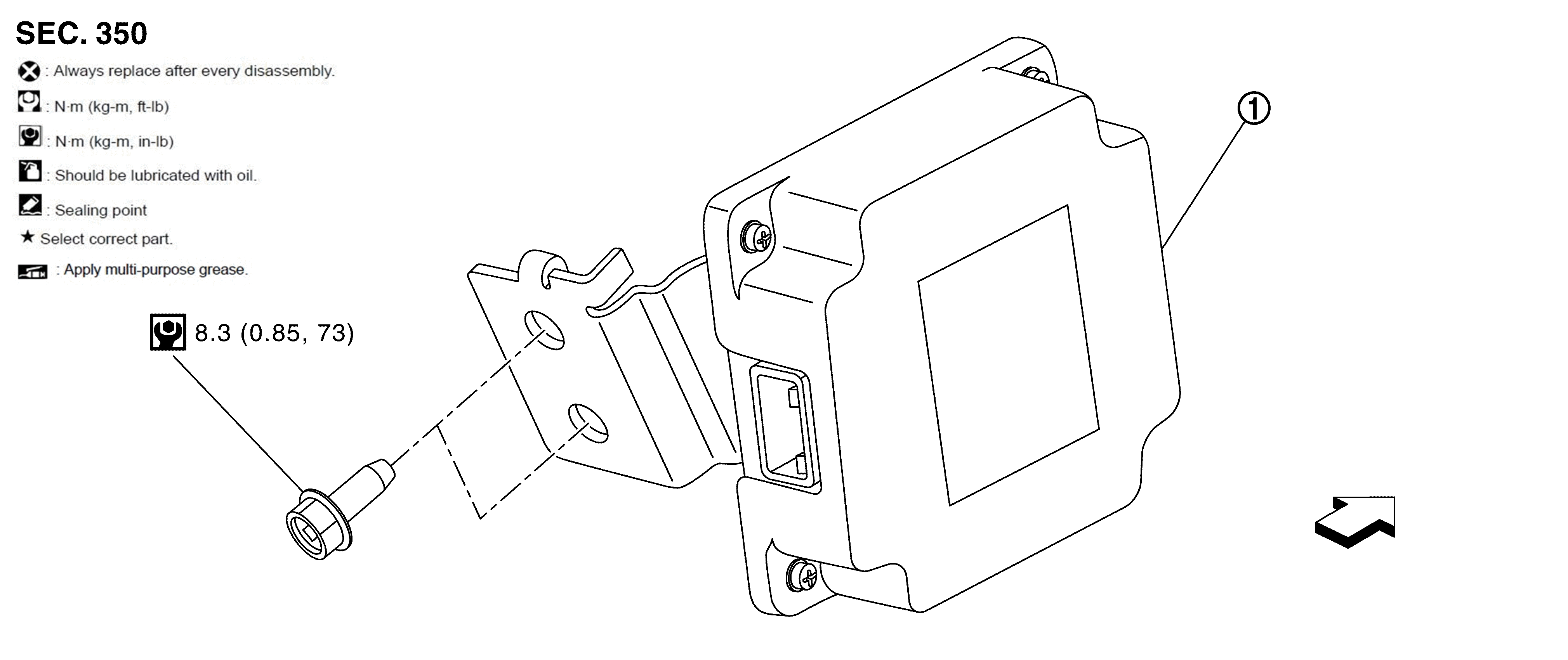

Exploded View

GNSJSDIA4523GB-523Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 AWD control unit
ARROW : Vehicle front
BOLTIN : N•m (kg - m, in - lb)
