For 2.0L Turbo Gasoline Engine Models

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

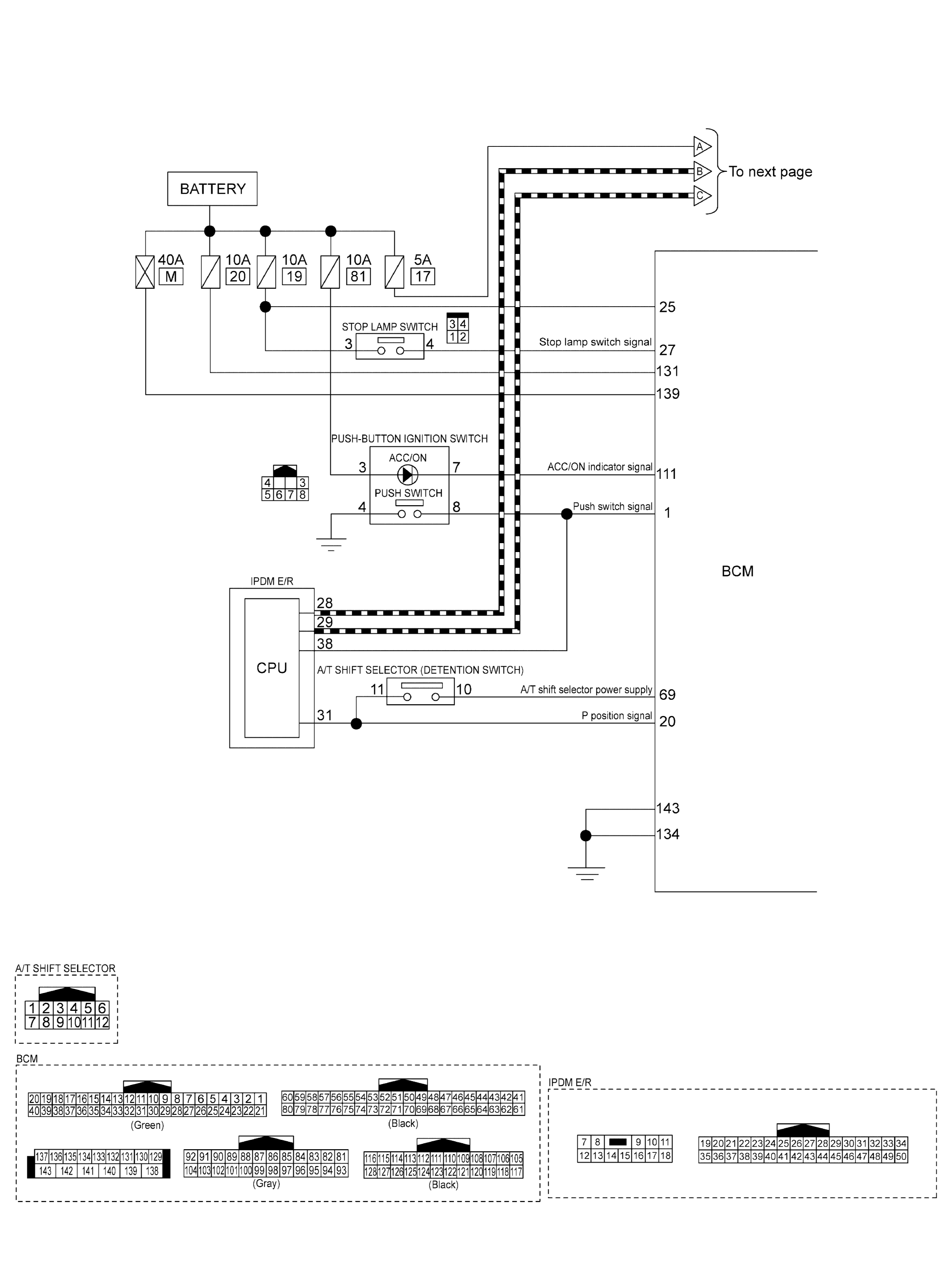

GNSJMKIB6359GB-359Courtesy of NISSAN NORTH AMERICA, INC.

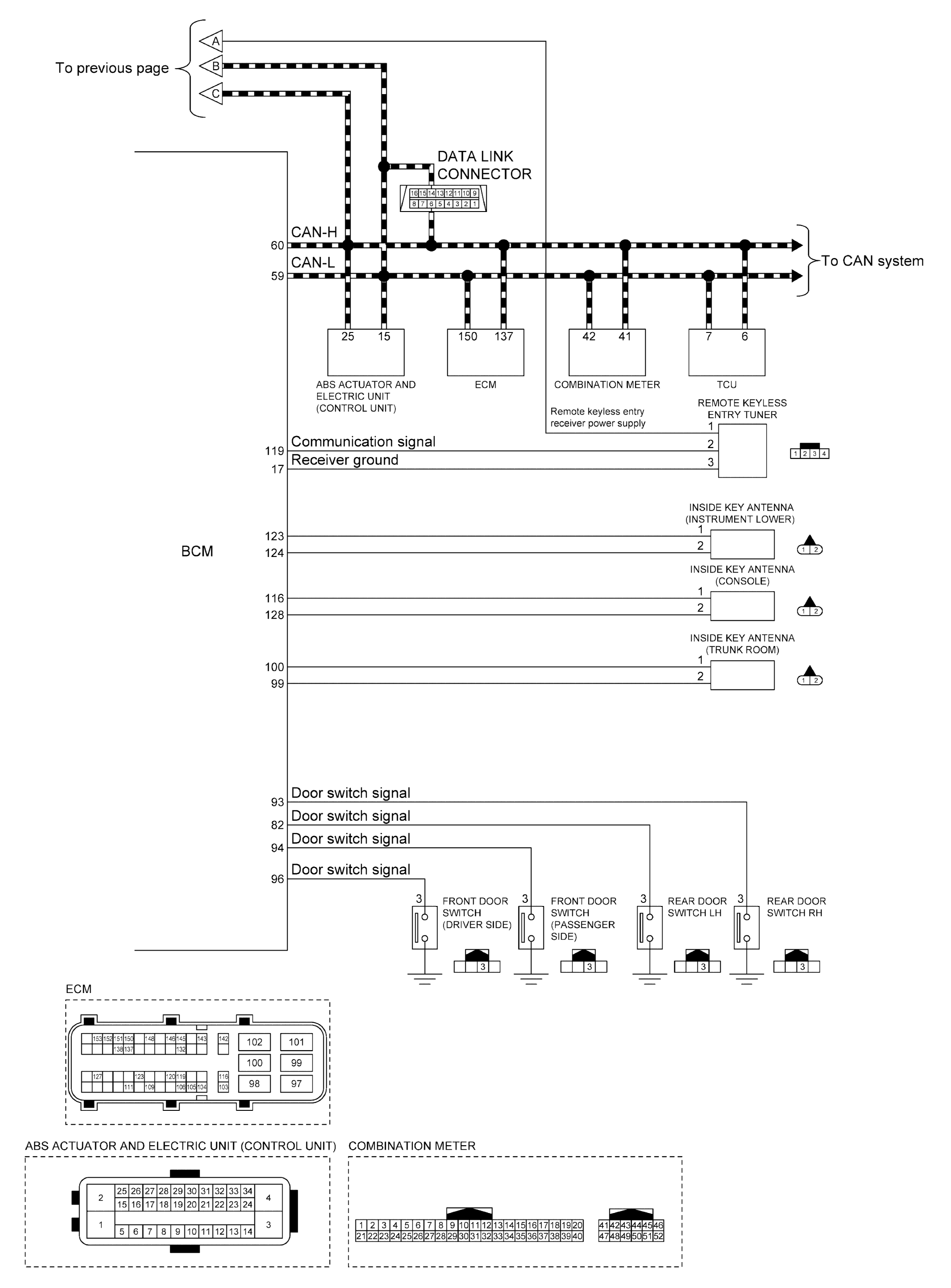

GNSJMKIB6360GB-360Courtesy of NISSAN NORTH AMERICA, INC.
