Component Location

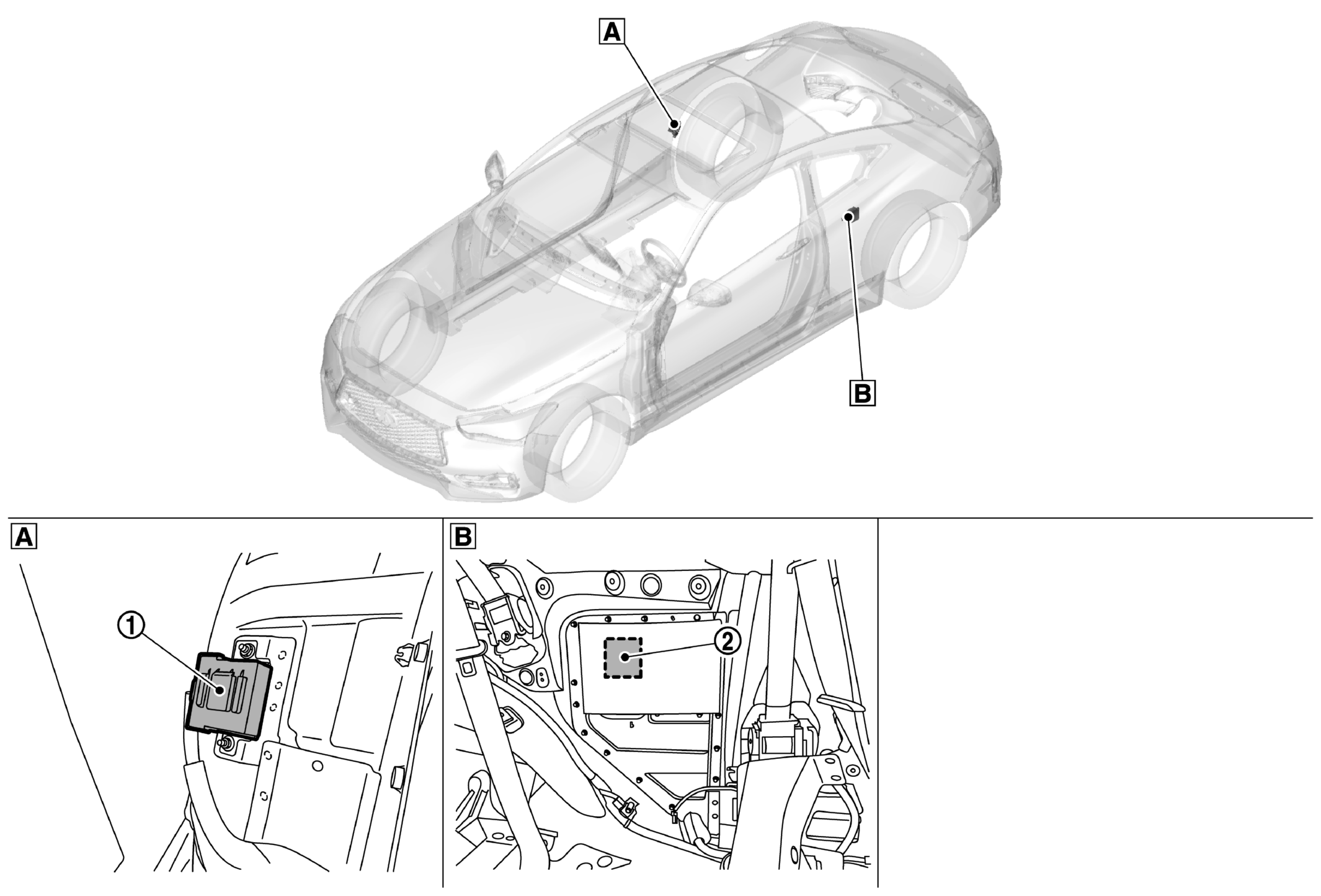

GNSJSOIA2540ZZ-540Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Rear pillar inner reinforcement RH removed condition WZ-B Rear pillar inner reinforcement LH removed condition
No. Component Description
WHITE-1 ADAS Control Unit 2
  • Controls each System, based on CAN Communication (via ADAS Control Unit), ITS Communication, and chassis Communication signals received from each Control Unit
  • Transmits signals necessary for control between CAN Communication (via ADAS Control Unit), ITS Communication, and Chassis Communication
WHITE-2 ADAS Control Unit
  • Controls each System, based on CAN Communication, ITS Communication, and chassis Communication signals received from each Control Unit
  • Transmits signals necessary for control between CAN Communication, ITS Communication, and Chassis Communication
