Removal And Installation: Installation

CAUTION:

Be sure to perform "Read/Write Configuration" when replacing ADAS Control Unit (With FEB models). For details, refer to WORK PROCEDURE .

Note the following, and install in the reverse order of removal.

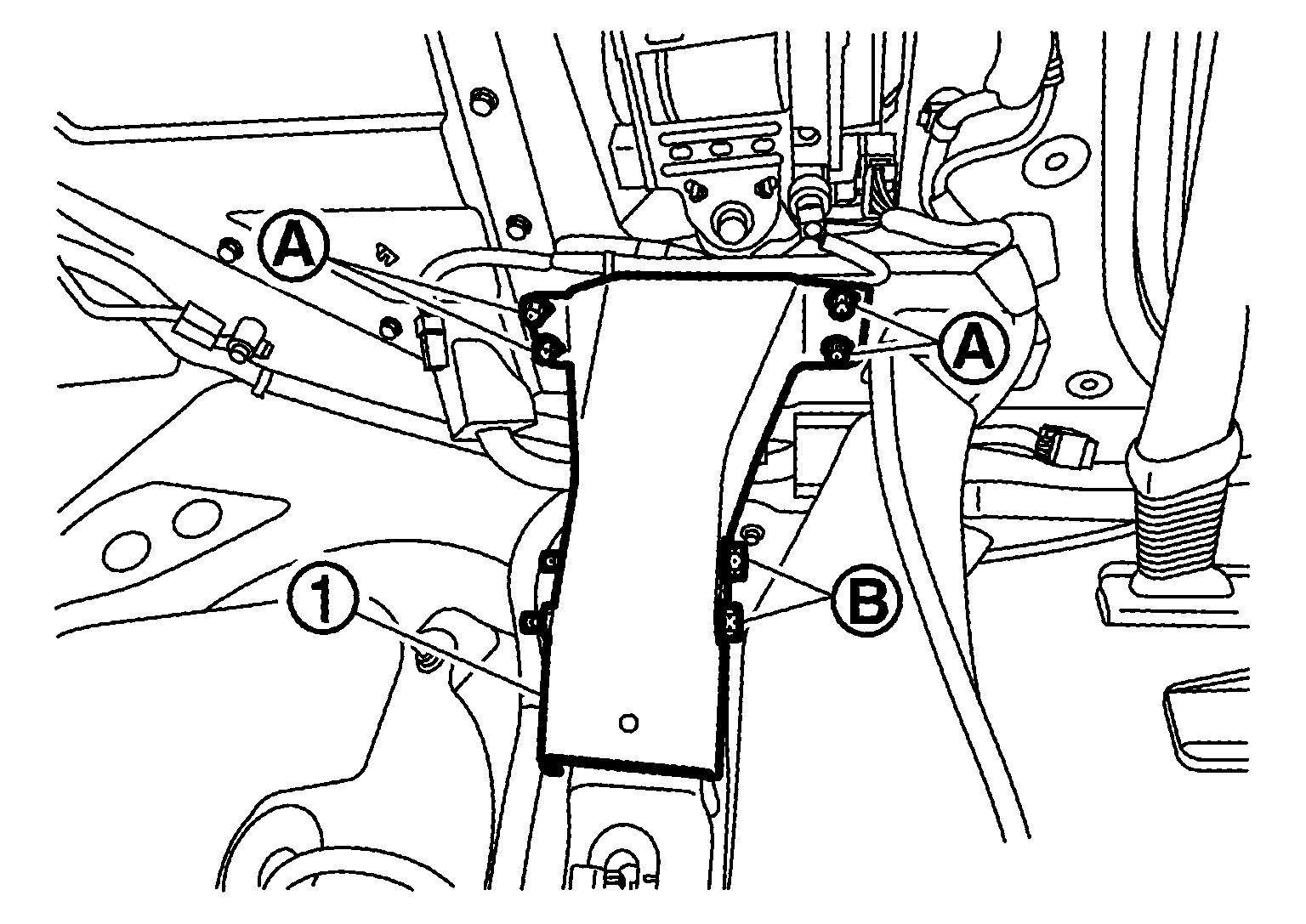

Tighten the rear floor gusset

LH bolts to the specified torque.

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt	: 35 N•m (3.6 kg-m, 26 ft-lb)
Bolt	: 80 N•m (8.2 kg-m, 59 ft-lb)
