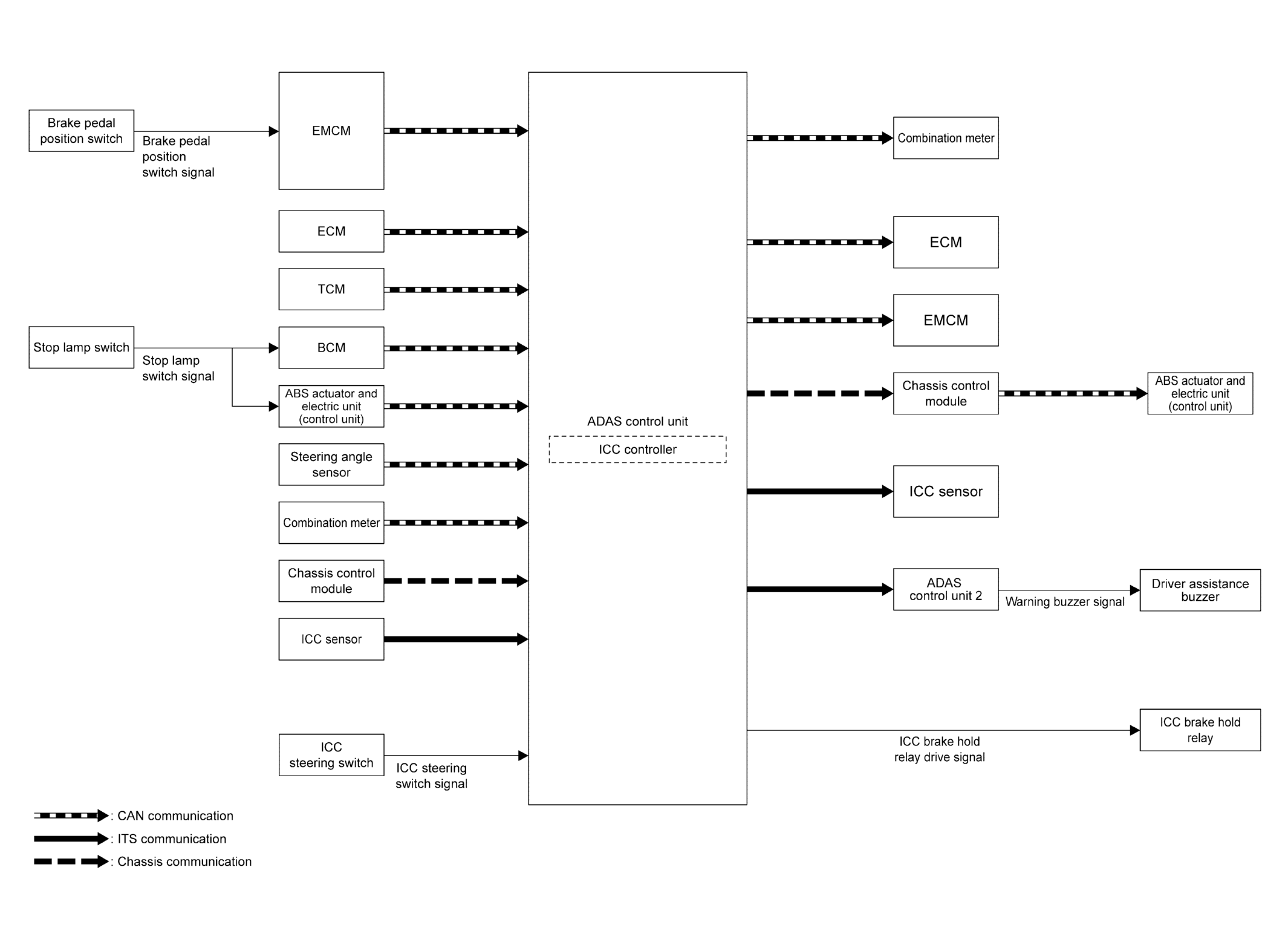

2.0L Turbo Gasoline Engine

GNSJSOIA2527GB-527Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:

TCM is connected to drivetrain CAN Communication and transmits a CAN Communication signal to ADAS Control Unit via ECM
