Physical Values

Terminal No. (Wire color)		Description		Condition		Standard Value	Reference Value
+	-	Signal Name	Input/Output	Condition		Standard Value	Reference Value
1 (R)	2 (B)	Warning buzzer signal	Output	Ignition Switch ON	Driver assistance buzzer OFF	0 - 0.1 V	Approx. 0 V

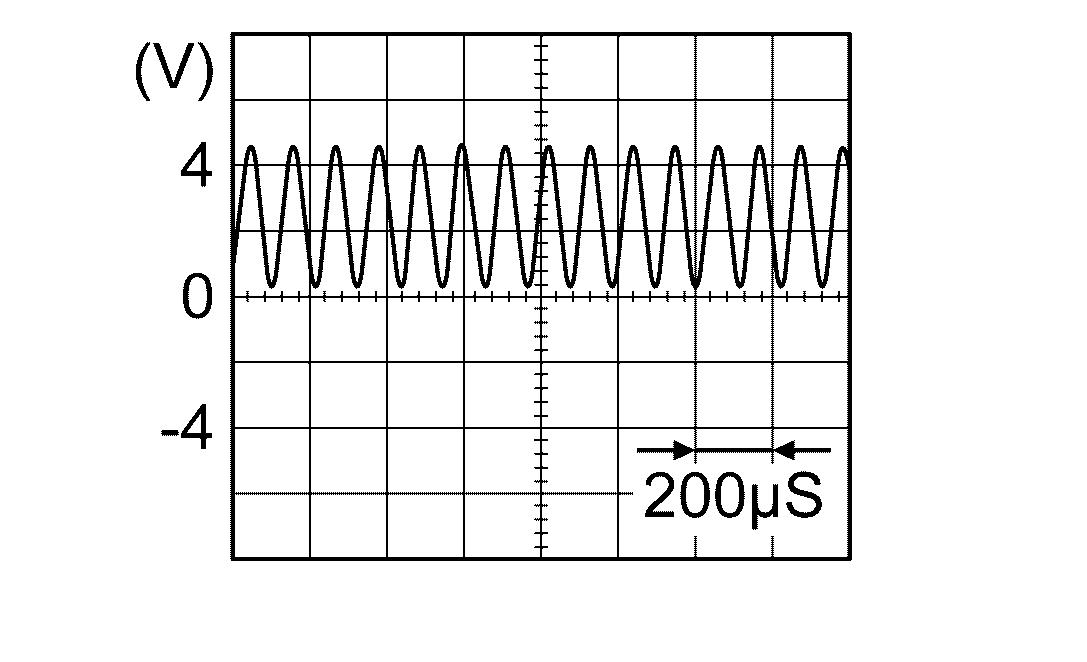

1 (R)	2 (B)	Warning buzzer signal	Output	Ignition Switch ON	At "ADAS buzzer 2" test of "Active test"	Courtesy of NISSAN NORTH AMERICA, INC.
2 (B)	Ground	Ground	-	Ignition Switch ON		0 - 0.1 V	Approx. 0 V
3 (R)	-	Chassis Communication - L	-	-		-	-
9 (L)	-	ITS Communication - H	-	-		-	-
12 (R)	24 (L)	Steering Vibration Motor signal	Output	Ignition Switch ON	Steering Vibration Motor OFF	0 V	Approx. 0 V
12 (R)	24 (L)	Steering Vibration Motor signal	Output	Ignition Switch ON	At "Vibration motor" test of "Active test"	12 V	Approx. 12 V
13 (G)	2 (B)	Warning buzzer signal ground	-	Ignition Switch ON		0 - 0.1 V	Approx. 0 V
15 (L)	-	Chassis Communication - H	-	-		-	-
16 (G)	2 (B)	Ignition power supply	Input	Ignition Switch ON	-	10 - 16 V	Battery voltage
21 (P)	-	ITS Communication - L	-	-		-	-
24 (L)	2 (B)	Steering Vibration Motor signal ground	Output	Ignition Switch ON	Steering Vibration Motor OFF	4 V	Approx. 4 V
24 (L)	2 (B)	Steering Vibration Motor signal ground	Output	Ignition Switch ON	At "Vibration motor" test of "Active test"	0 V	Approx. 0 V
