Driver Assistance System (ADAS Control Unit) (Introduction, Basic Diagnosis, DTC/Circuit Diagnosis) (1 Of 2)
>>
System Description
>>
System
>>

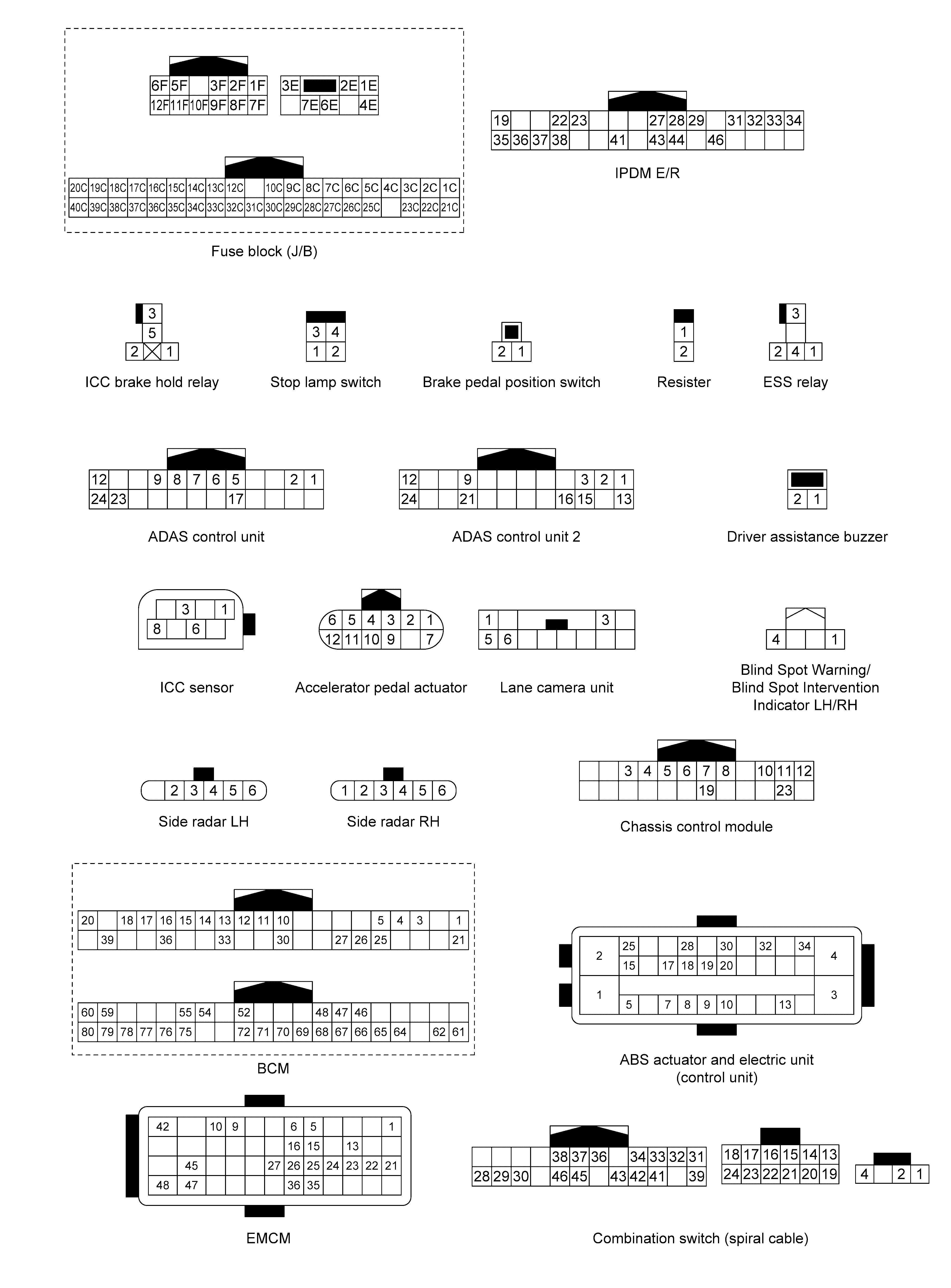

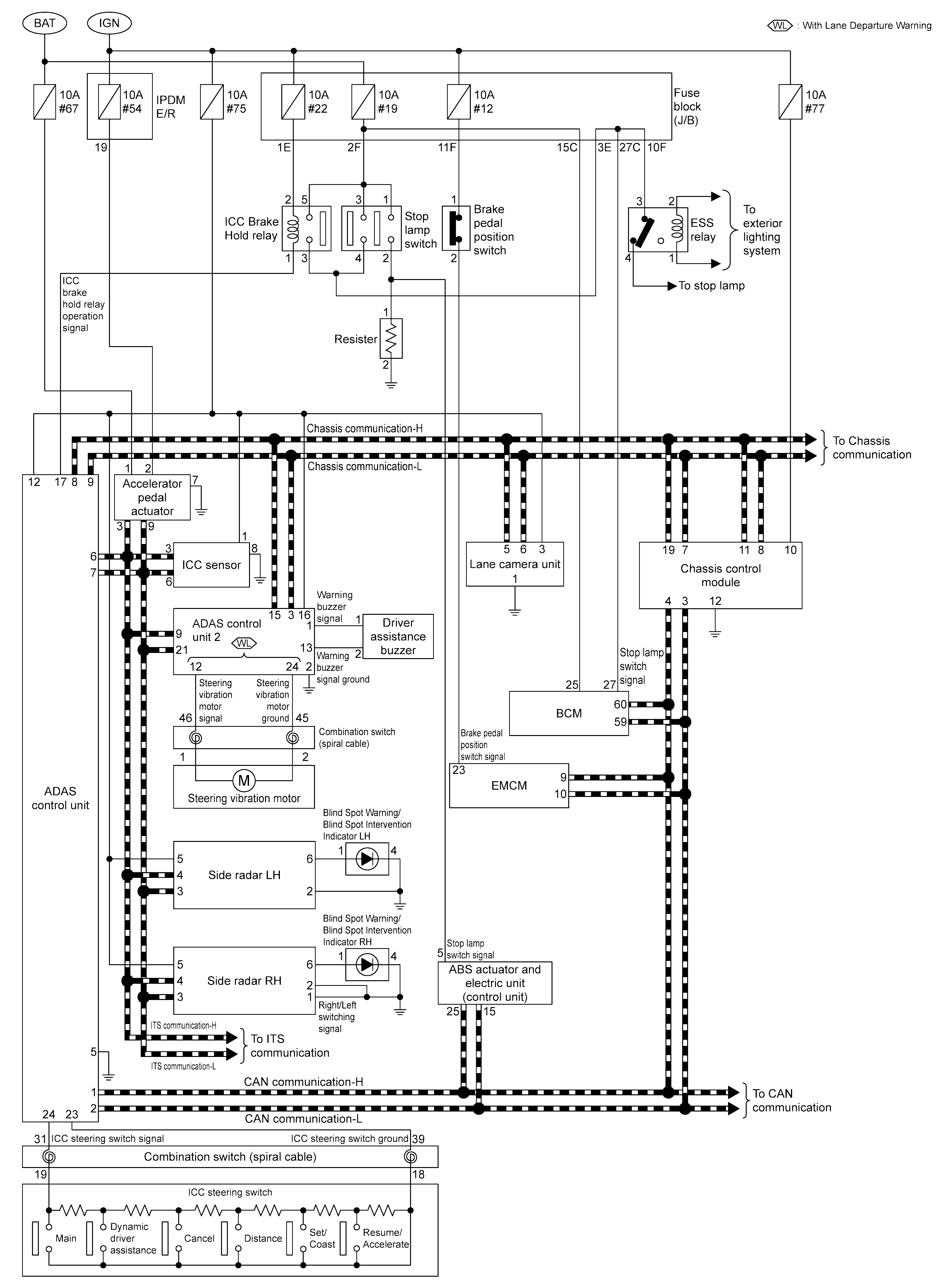

Circuit Diagram
>>
2.0L Turbo Gasoline Engine
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
2.0L Turbo Gasoline Engine
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
