Chassis Control (With Digital Motion Control): Wiring Diagram

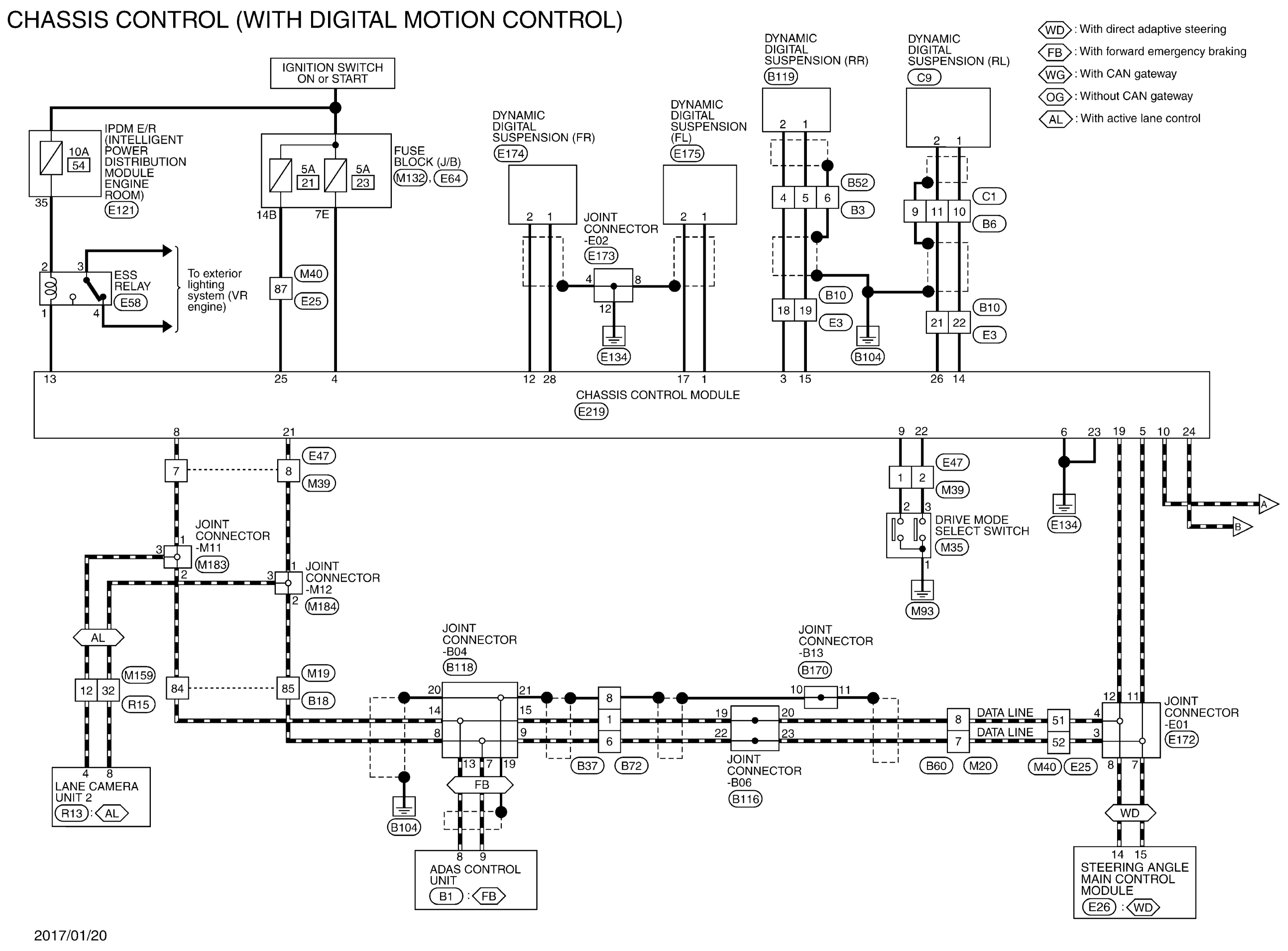

GNSJROWD3433GB-433

Courtesy of NISSAN NORTH AMERICA, INC.

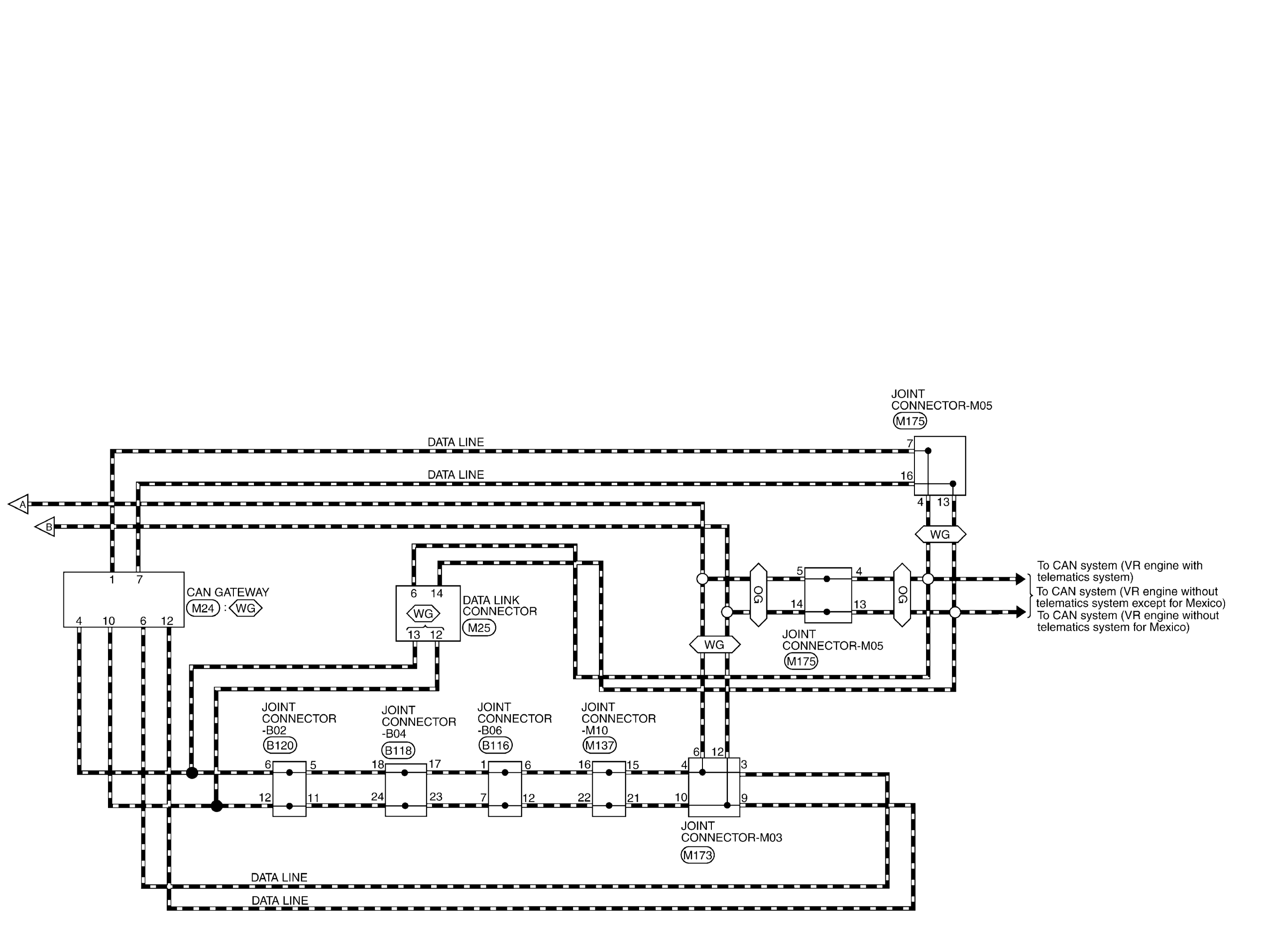

GNSJROWD3434GB-434

Courtesy of NISSAN NORTH AMERICA, INC.

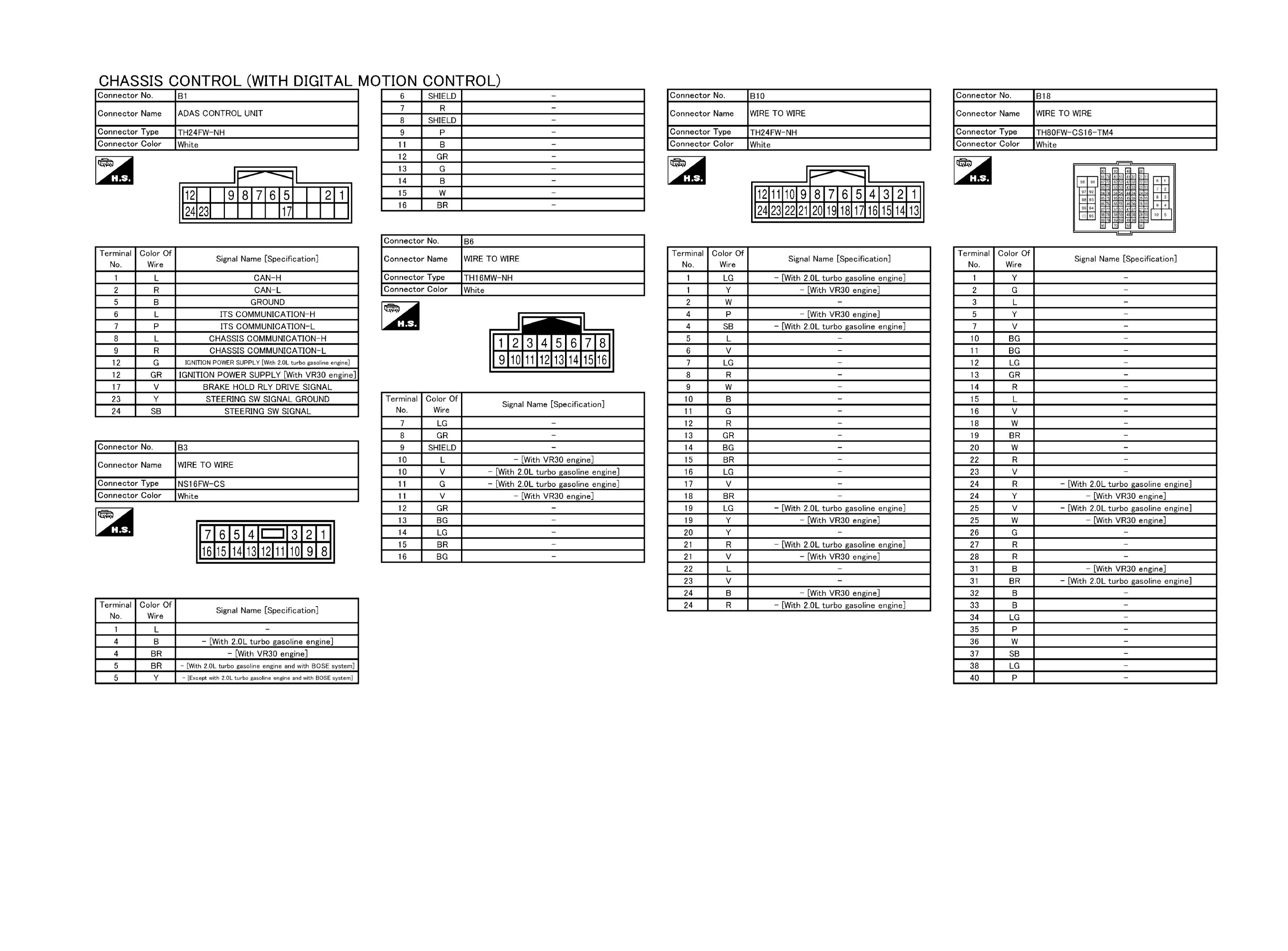

GNSJROWD3435GB-435

Courtesy of NISSAN NORTH AMERICA, INC.

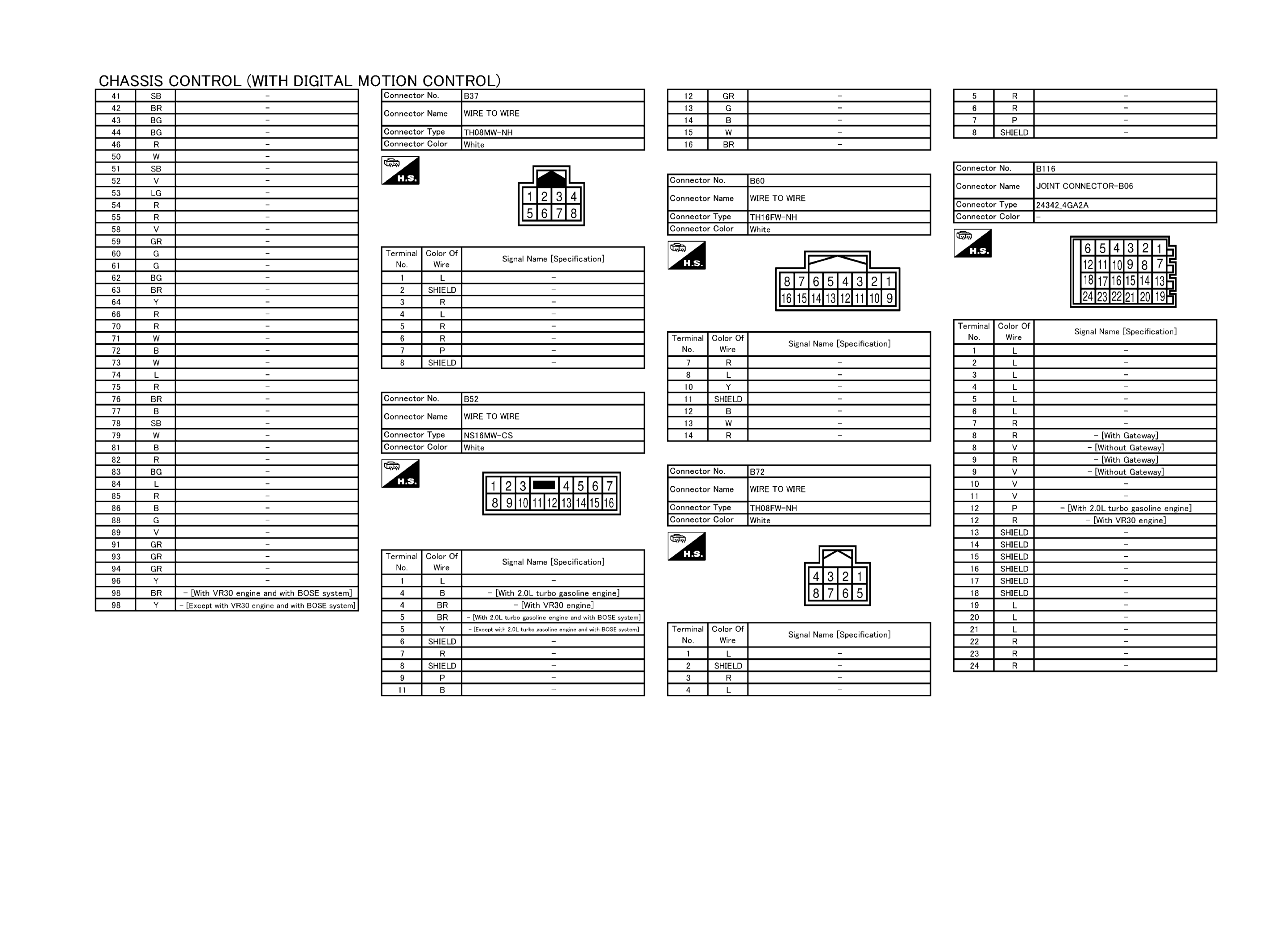

GNSJROWD3436GB-436

Courtesy of NISSAN NORTH AMERICA, INC.

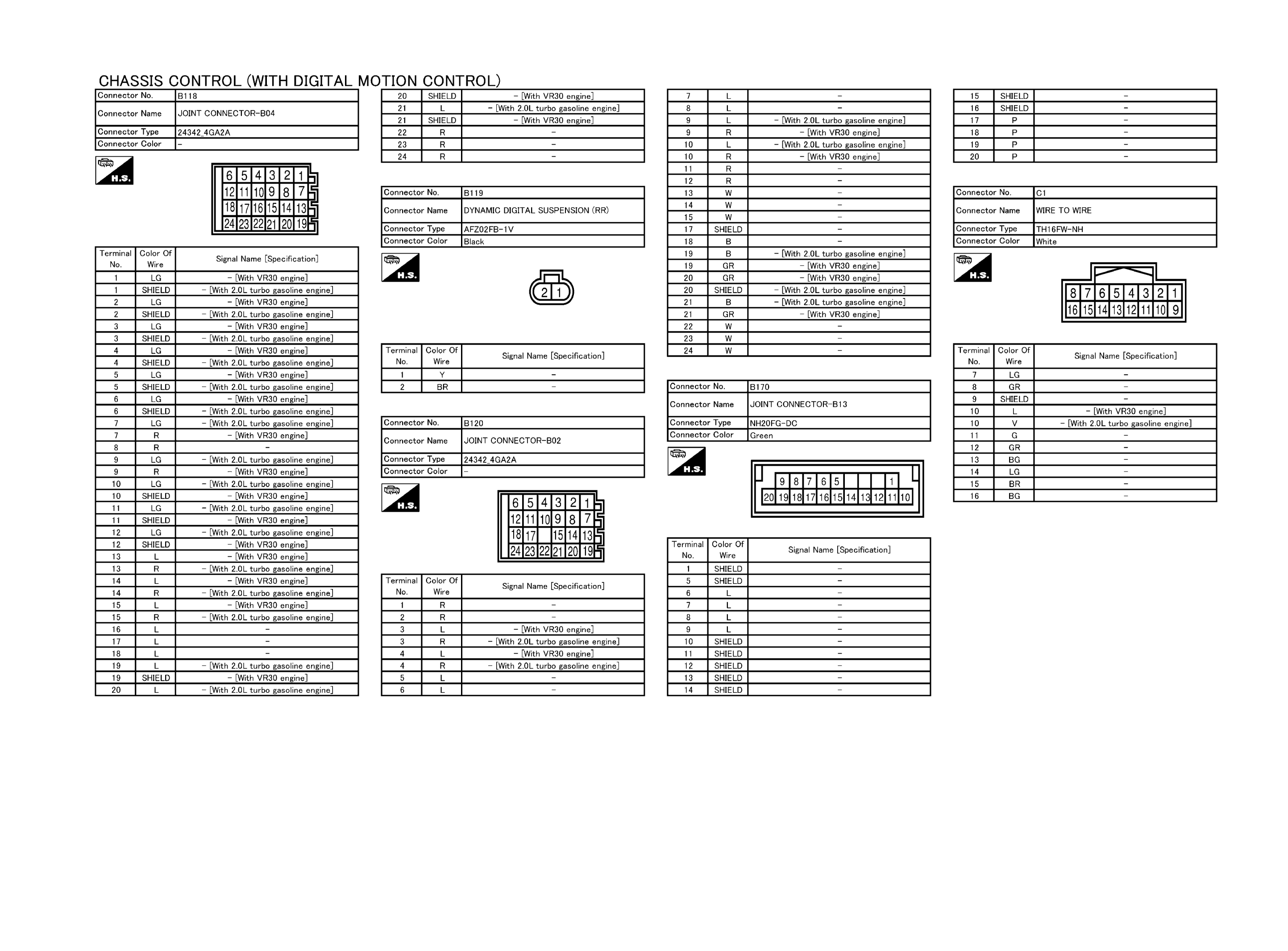

GNSJROWD3437GB-437

Courtesy of NISSAN NORTH AMERICA, INC.

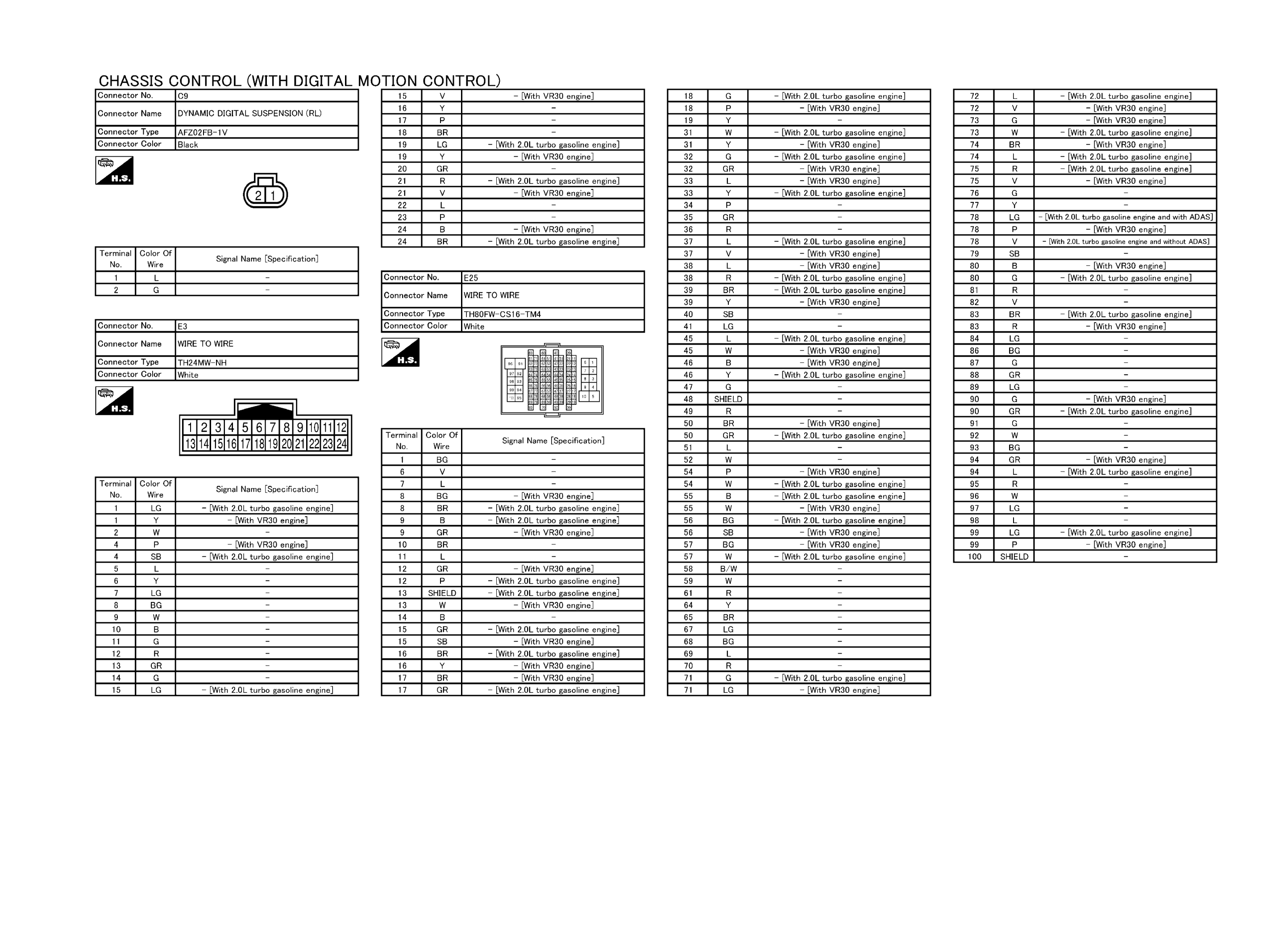

GNSJROWD3438GB-438

Courtesy of NISSAN NORTH AMERICA, INC.

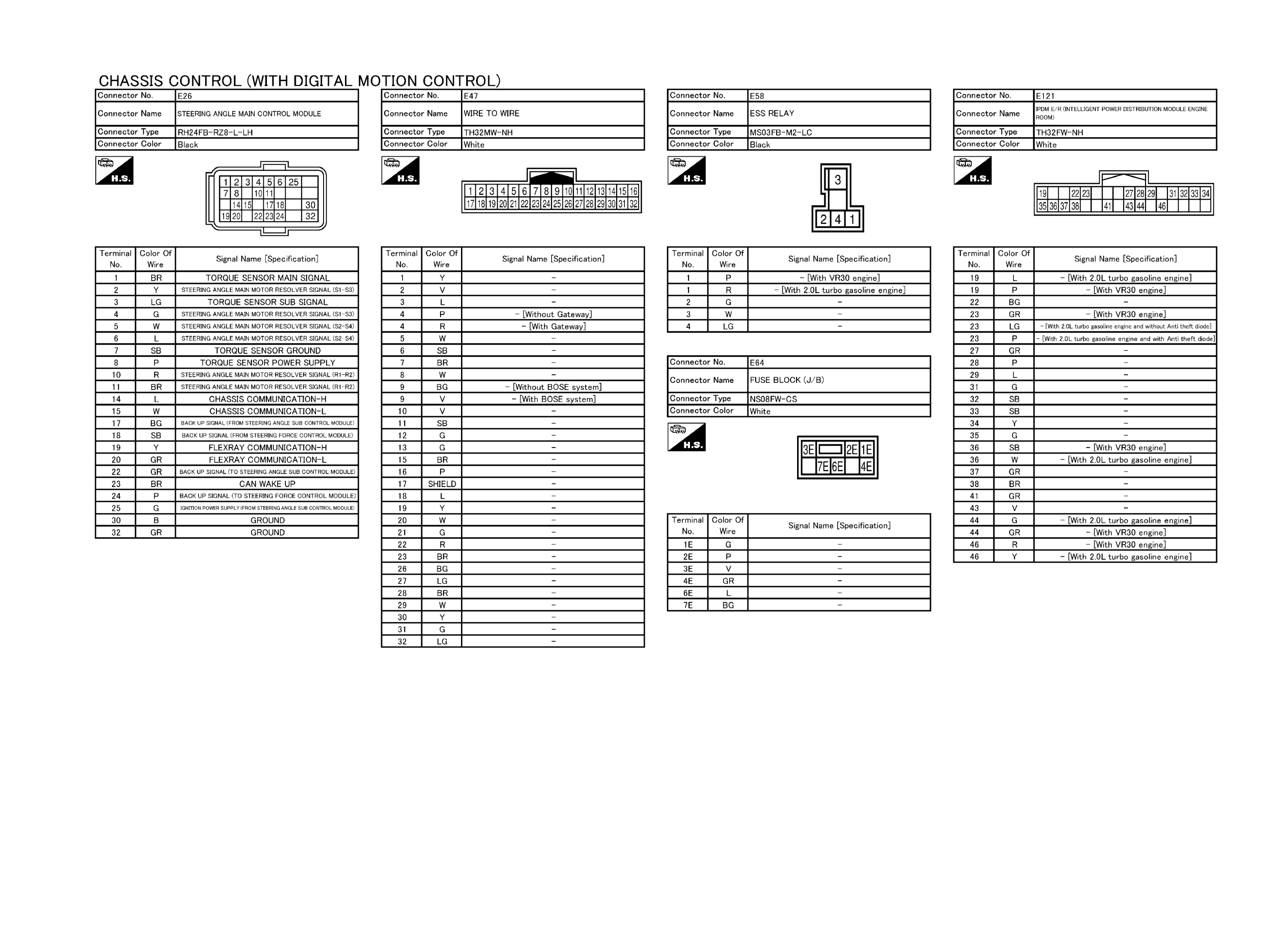

GNSJROWD3439GB-439

Courtesy of NISSAN NORTH AMERICA, INC.

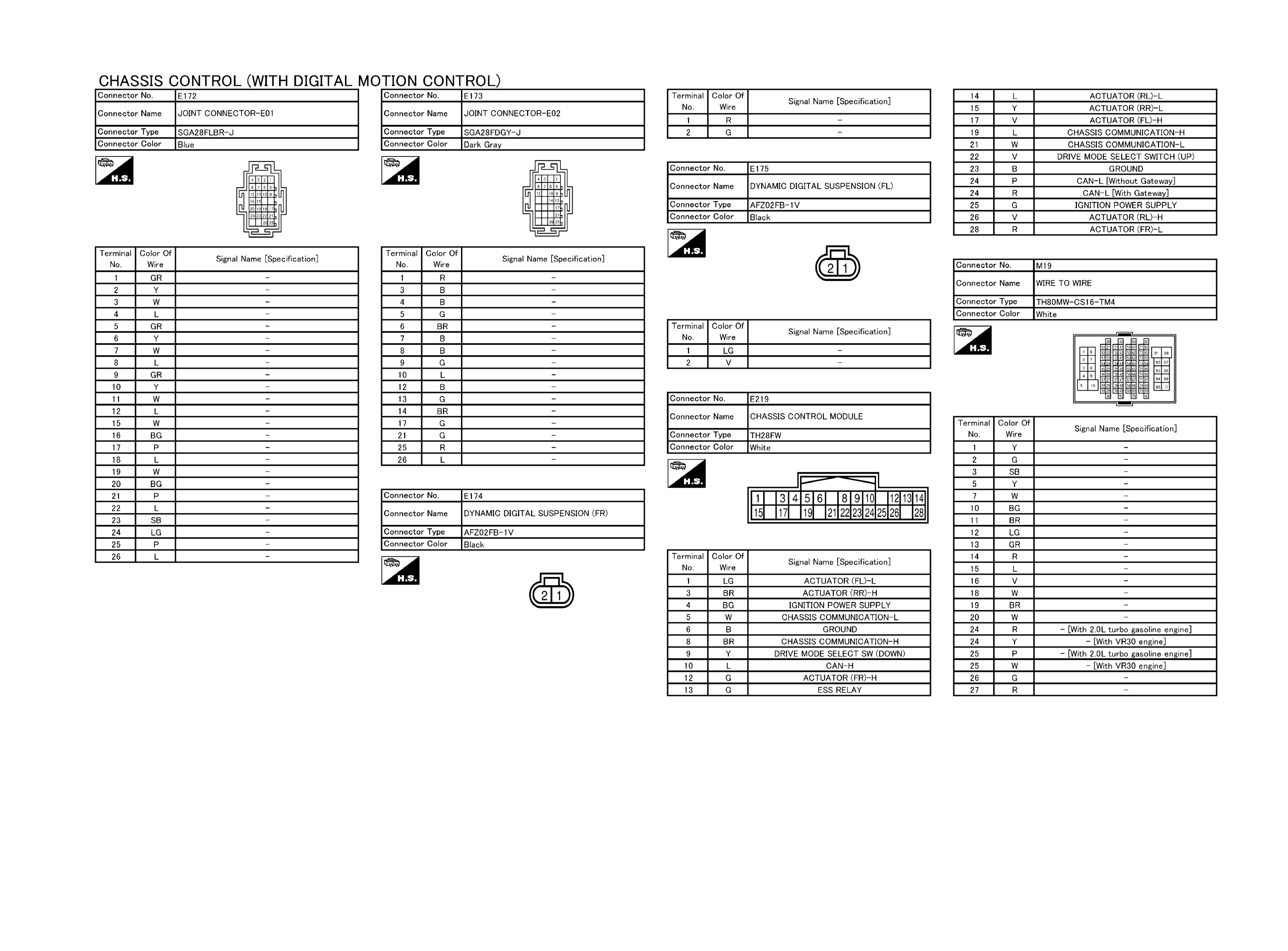

GNSJROWD3440GB-440

Courtesy of NISSAN NORTH AMERICA, INC.

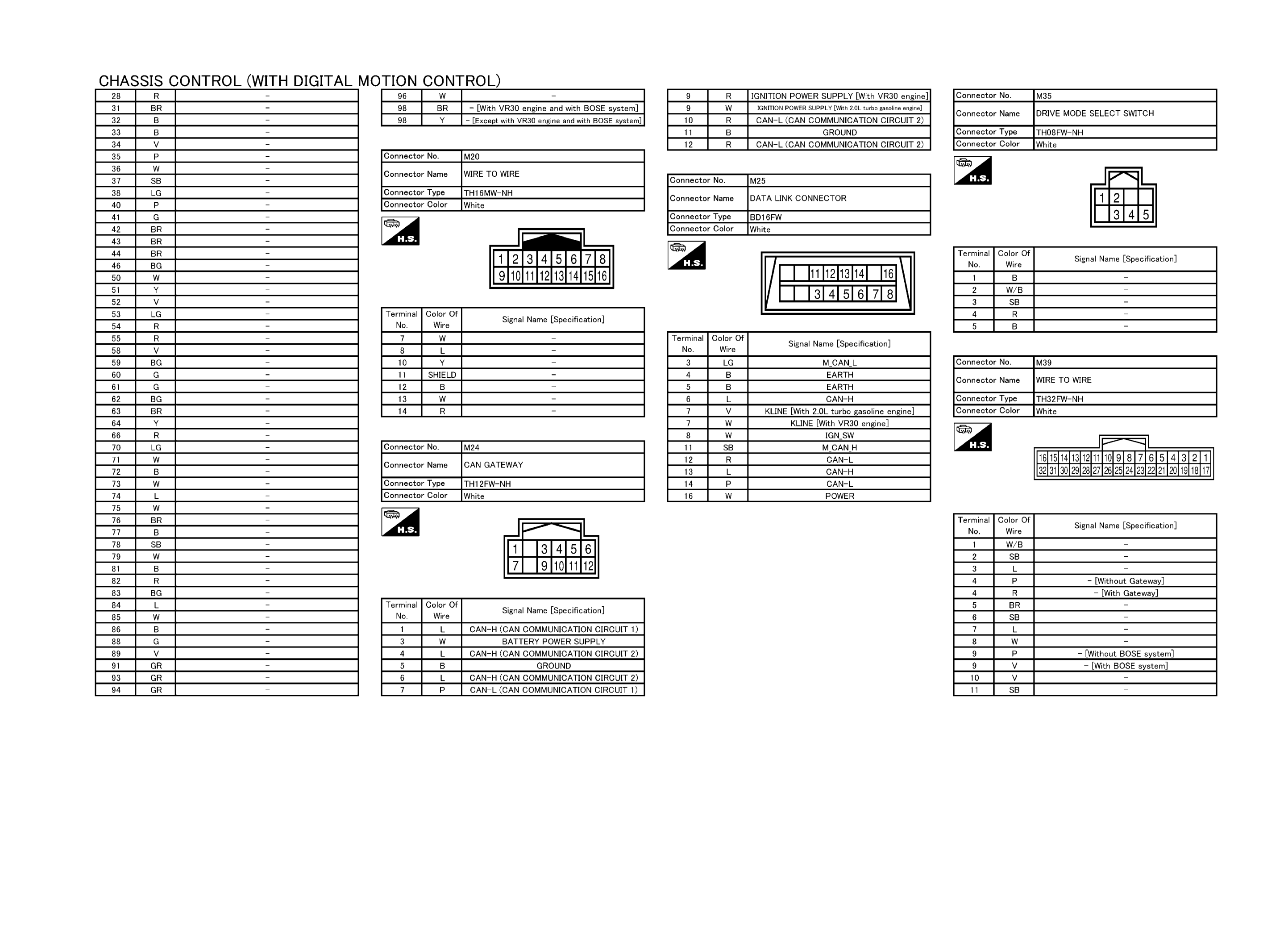

GNSJROWD3441GB-441

Courtesy of NISSAN NORTH AMERICA, INC.

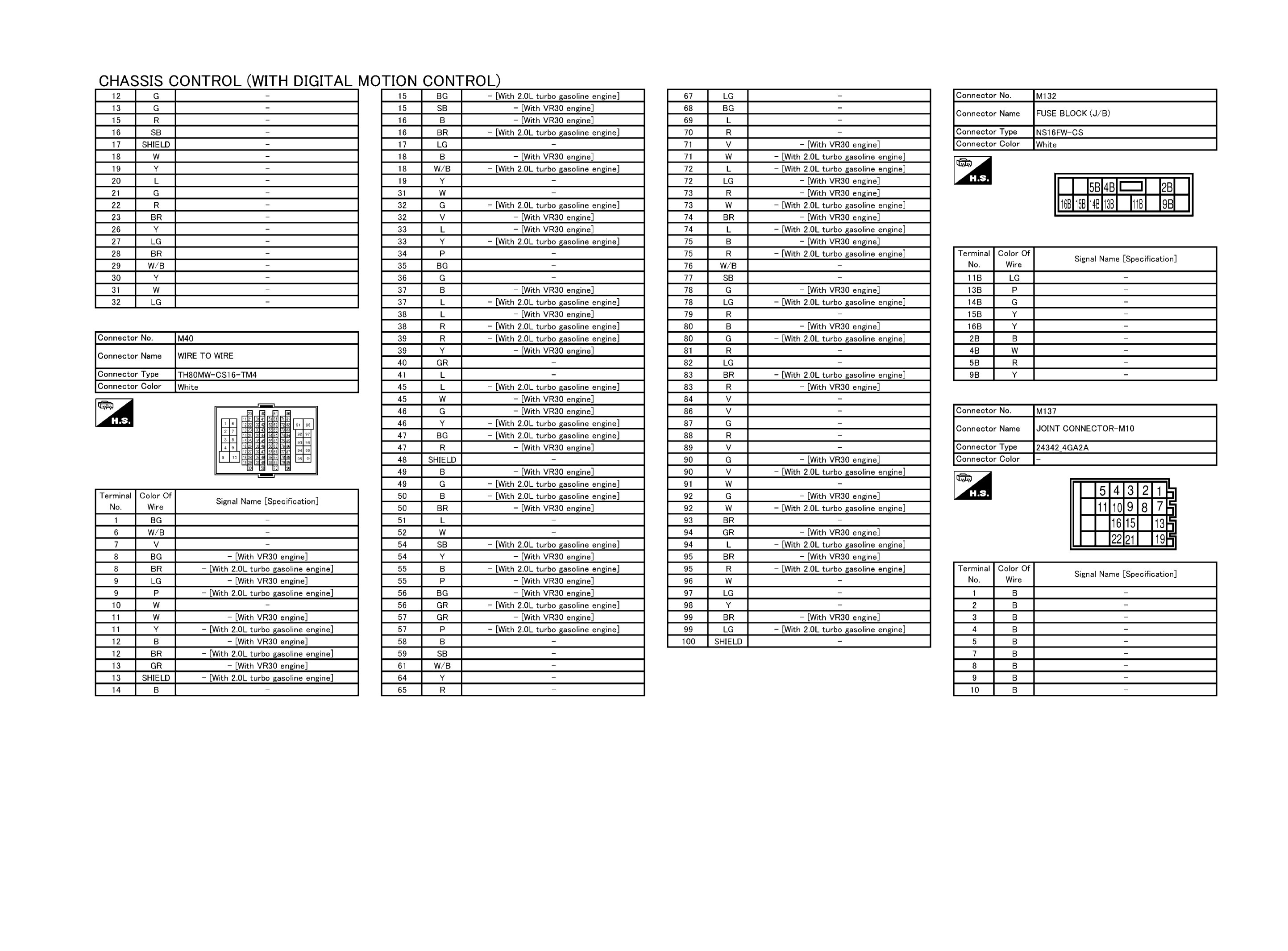

GNSJROWD3442GB-442

Courtesy of NISSAN NORTH AMERICA, INC.

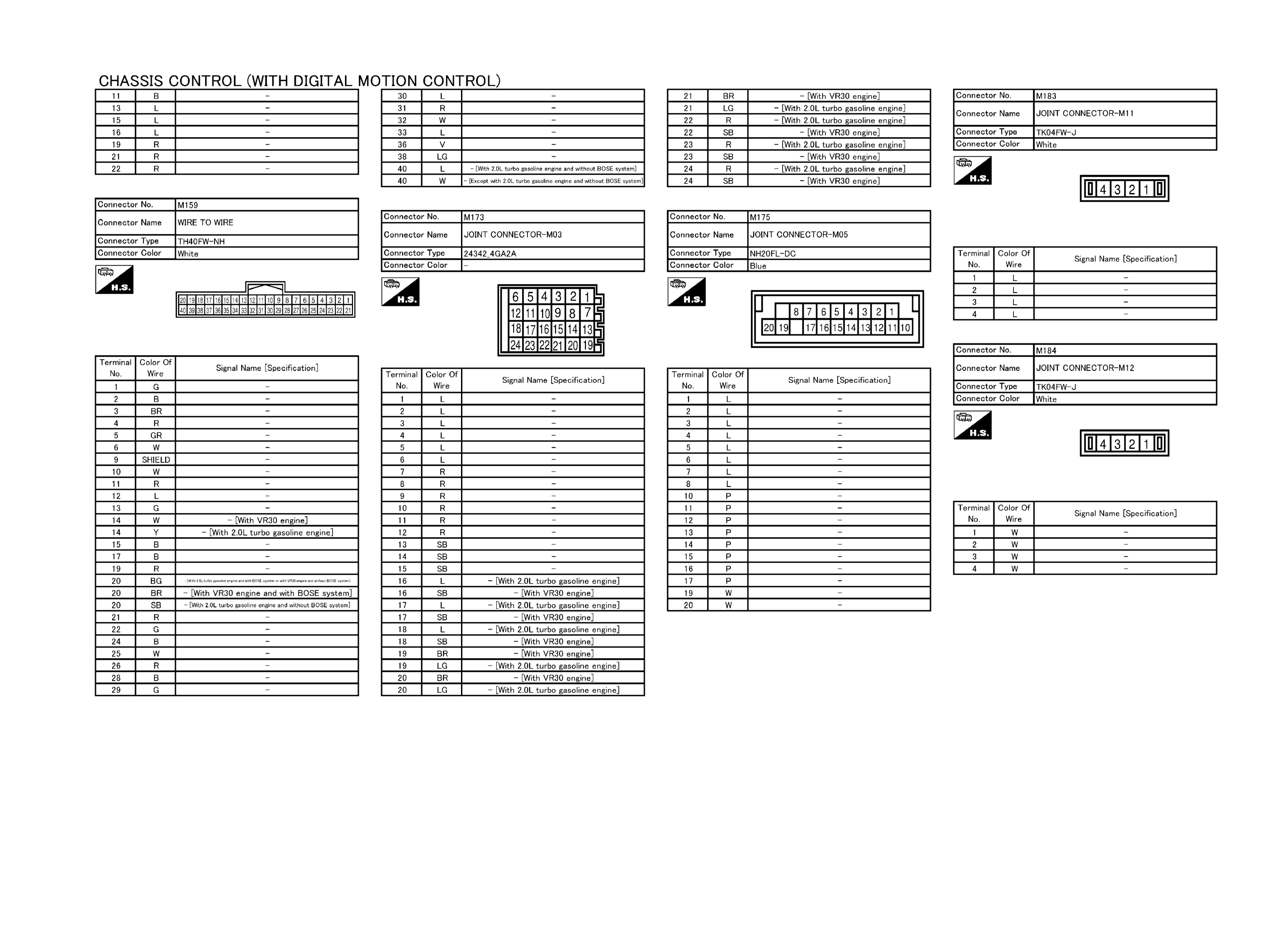

GNSJROWD3443GB-443

Courtesy of NISSAN NORTH AMERICA, INC.

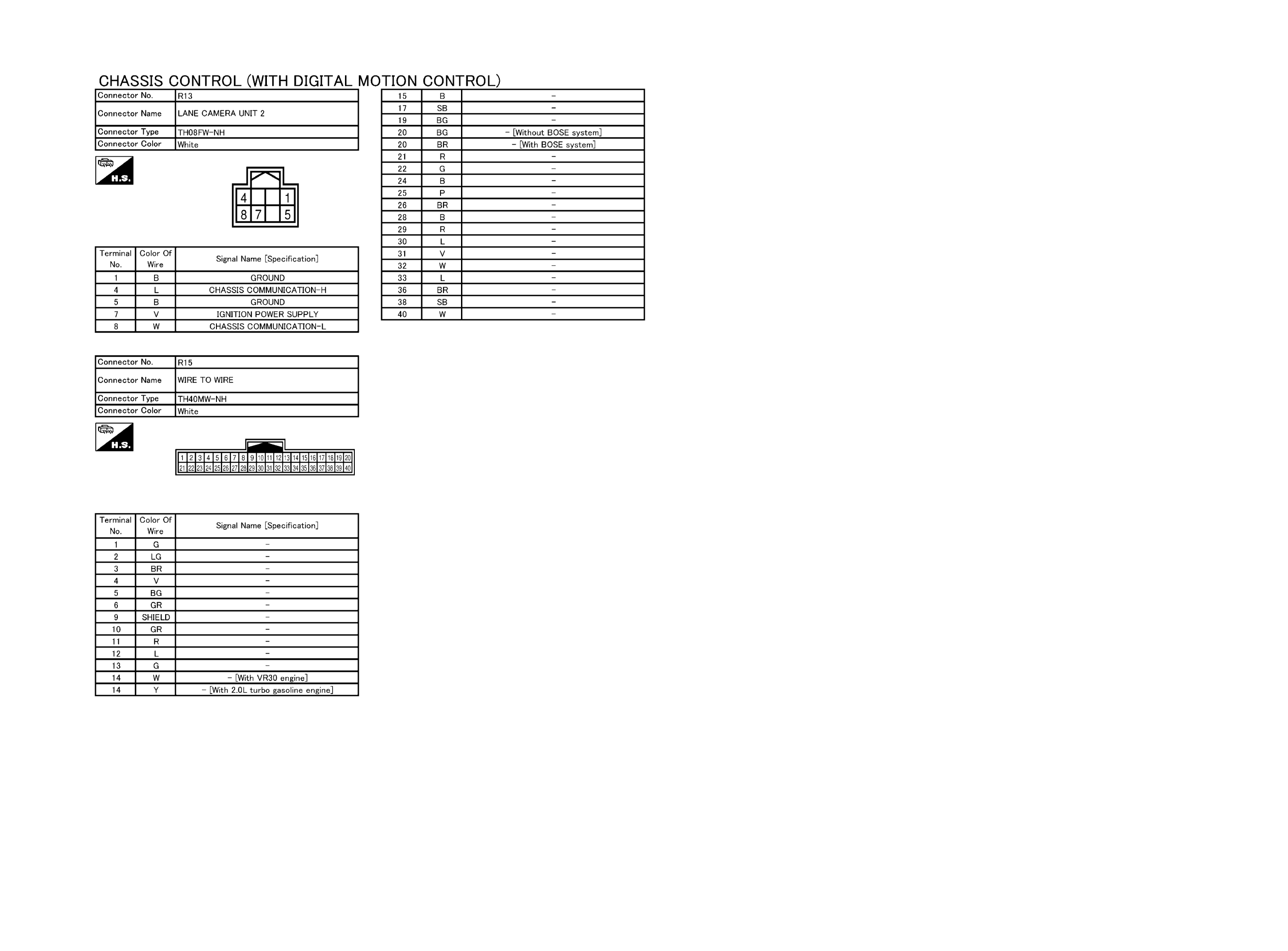

GNSJROWD3444GB-444

Courtesy of NISSAN NORTH AMERICA, INC.
