Front Wiper Service Position Operation

When this operation is activated, front wiper operates at LO speed and stops in the service position so that front wiper arms can pulled up without contacting the hood.

Following 2 methods are the operation procedures.

METHOD A: WITH IGNITION SWITCH ON

1. Turn ignition switch ON
2. Confirm the vehicle is stop
3. Confirm front wiper is in stop position

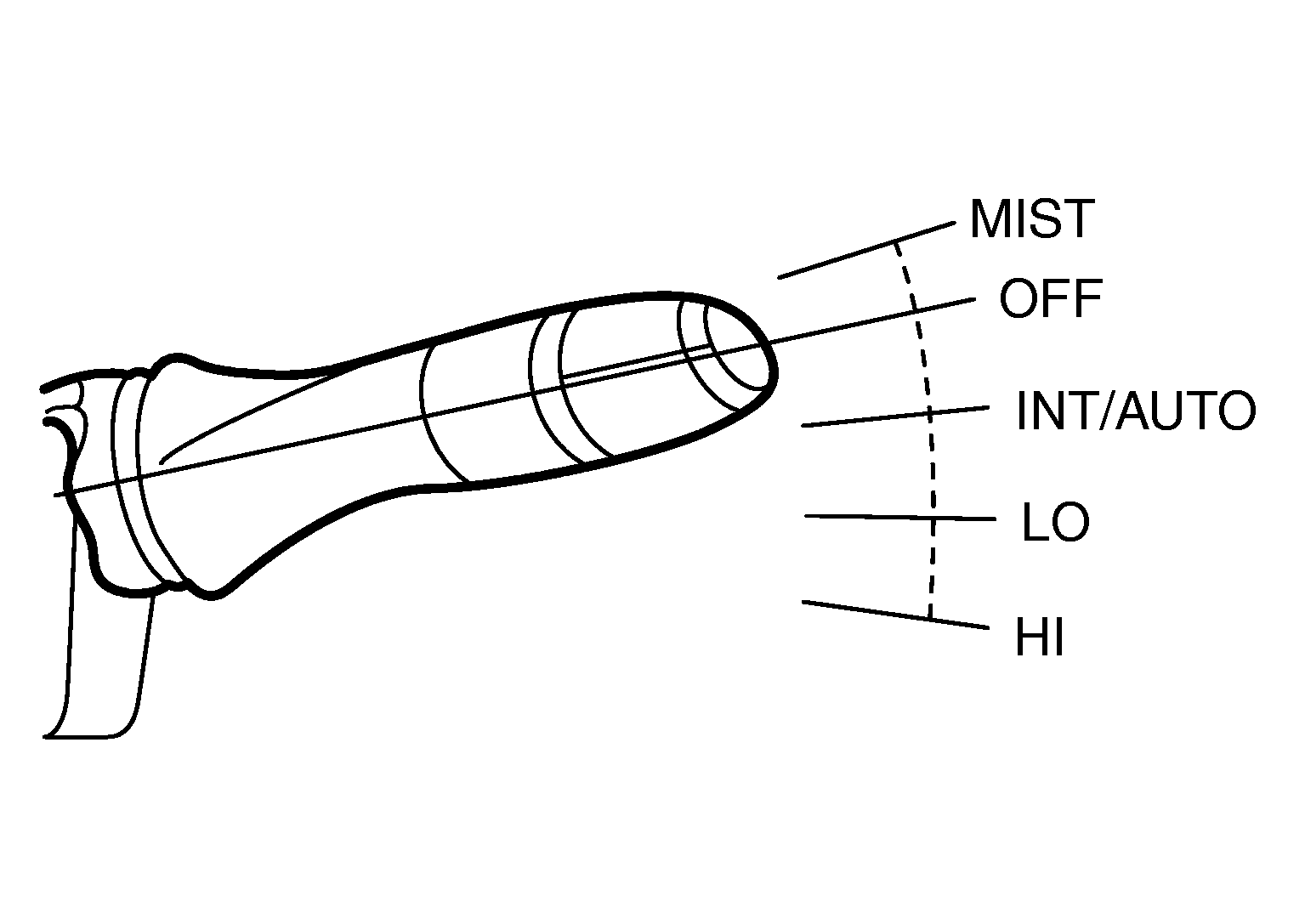

4. Quickly (Within 0.5 second) move wiper switch lever to MIST position twice, wiper will move to service position.

   Courtesy of NISSAN NORTH AMERICA, INC.

5. To exit service position, operate front wiper switch or front washer.

METHOD B: WITH IGNITION SWITCH OFF

1. Turn ignition switch OFF from any other position.
2. Confirm front wiper is in stop position
3. Within 1 minute after turning ignition switch OFF, quickly (Within 0.5 second) move wiper switch lever to MIST position twice, wiper will move to service position.

   Courtesy of NISSAN NORTH AMERICA, INC.

4. To exit service position, turn ignition switch ON and operate front wiper switch or front washer.
