Exploded View With Torque Specifications

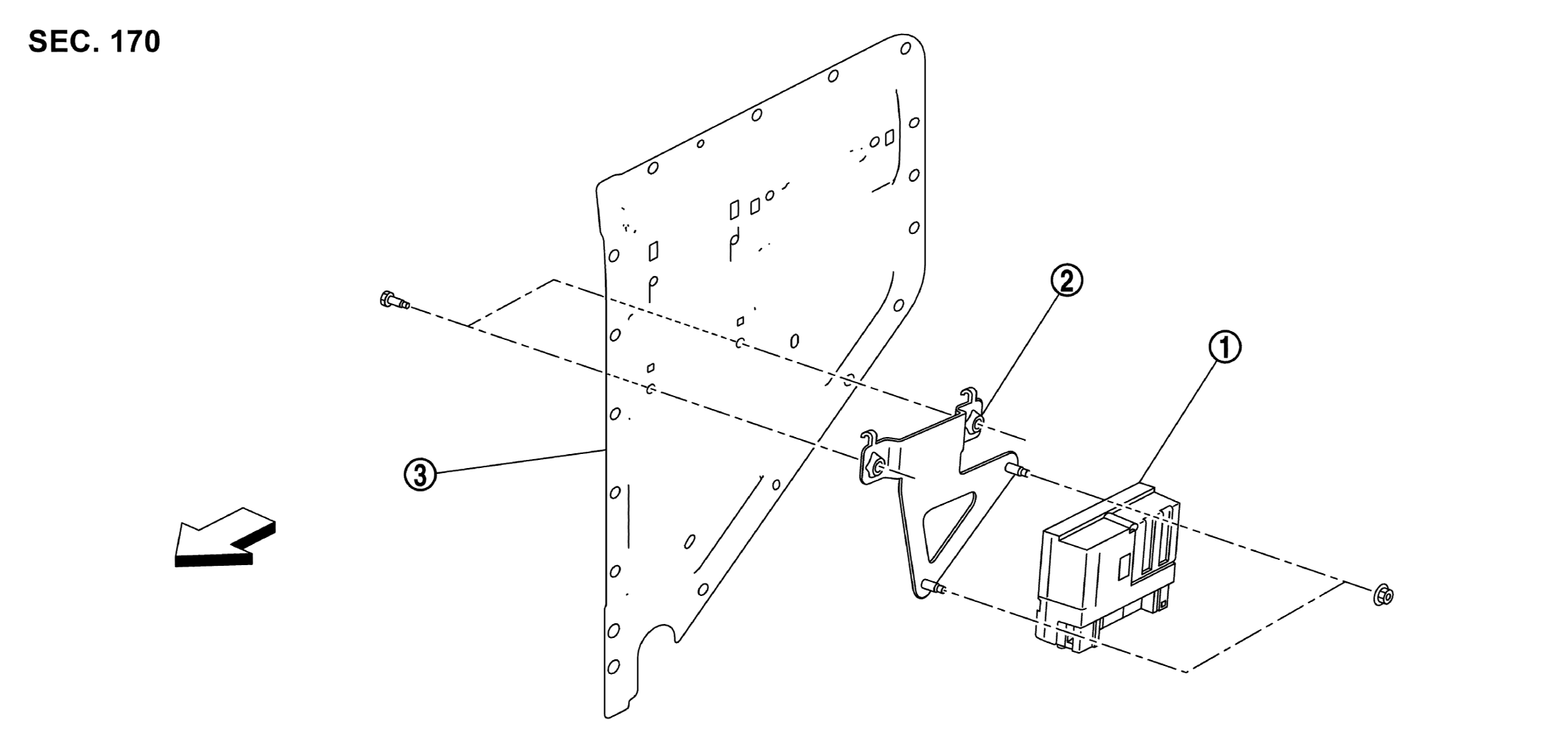

GNSJSBIB0619ZZ-619Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Fuel Pump Control Module WHITE-2 Fuel Pump Control Module Bracket WHITE-3 Rear Pillar Inner Reinforcement LH
ARROW : Vehicle front
