Operation And Display - Controller (Integral Switch)

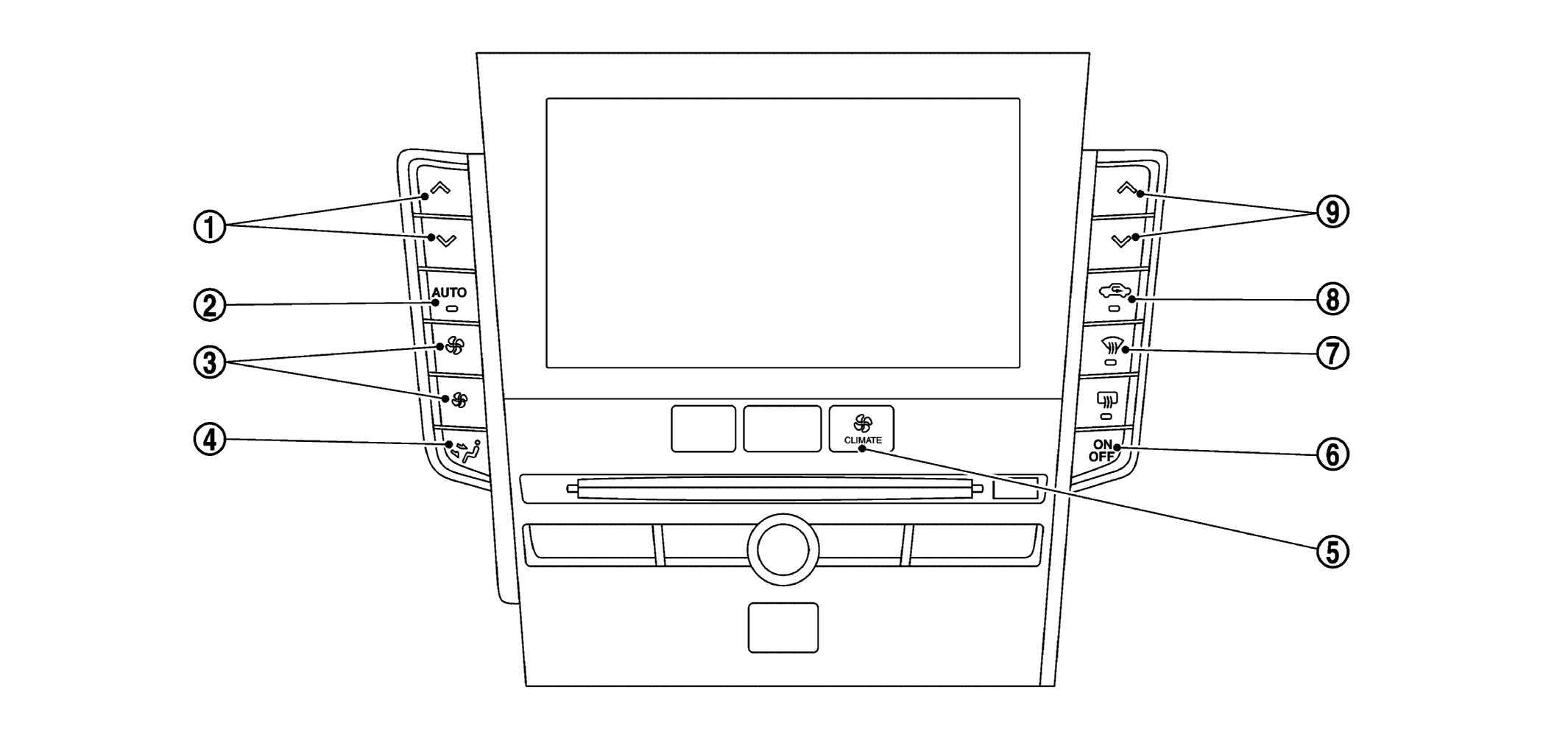

GNSJMIIA2964ZZ-964Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Temperature Control Switch (Driver Side) WHITE-2 AUTO Switch WHITE-3 Fan Switch
WHITE-4 MODE Switch WHITE-5 CLIMATE Switch WHITE-6 ON/OFF Switch
WHITE-7 DEF Switch WHITE-8 Intake Switch WHITE-9 Temperature control switch (Passenger side)
