Control By A/C Auto Amp. - Low Temperature Protection Control

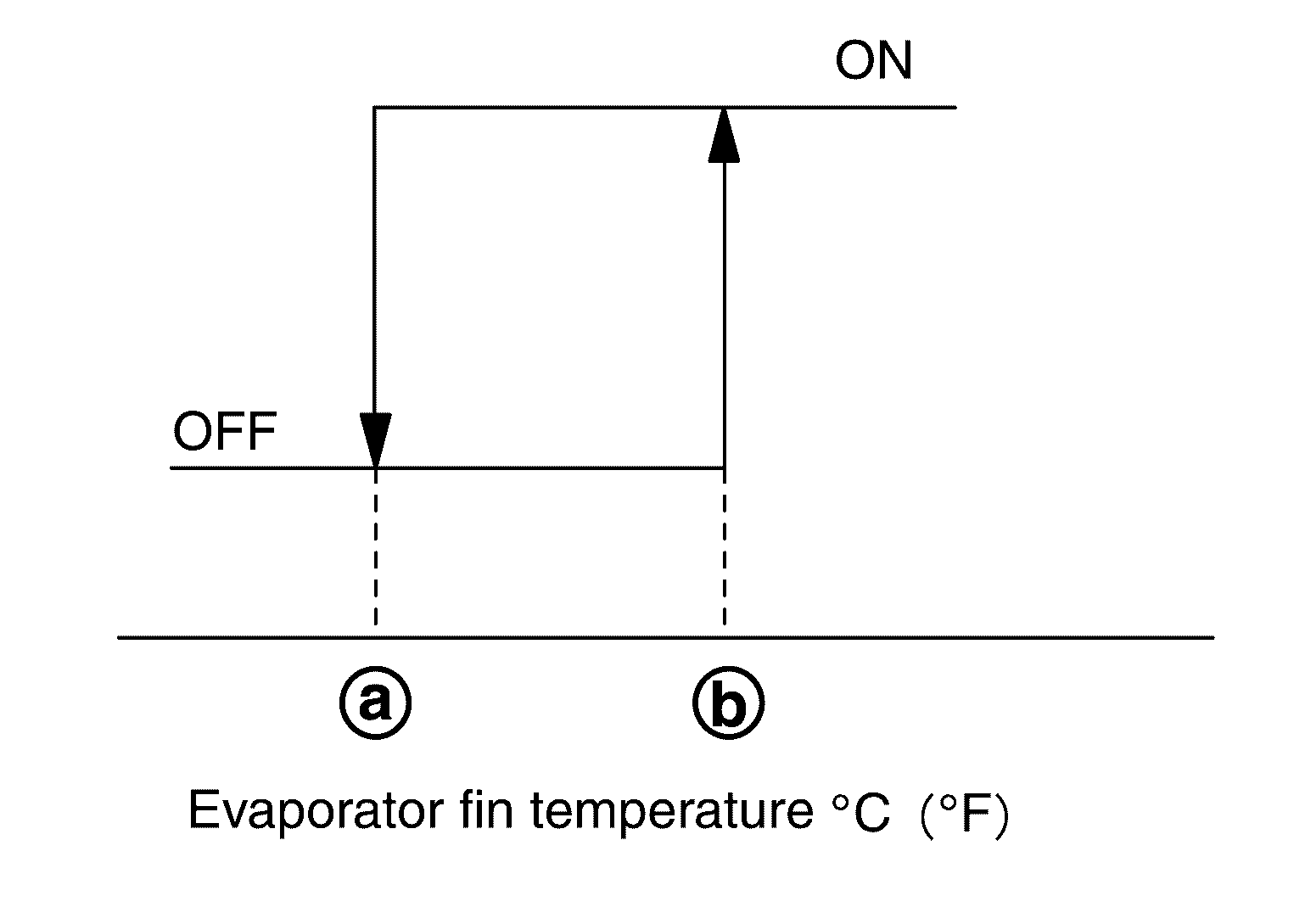

When Intake Sensor detects that evaporator fin temperature is
[ - 5.0°C (23.0°F)] or less, A/C Auto Amp. requests ECM to turn the compressor OFF, and stops the compressor.
When the air temperature returns to
[1.0°C (33.8°F)] or more, the compressor is activated.
NOTE:
Target temperature upper limit value of evaporator can be changed using "TARGET EVAPORATOR TEMP UPPER LIMIT SETTING" in "WORK SUPPORT" mode of CONSULT. Refer to SETTING OF TARGET EVAPORATOR TEMPERATURE UPPER LIMIT VALUE .
