Removal And Installation: Removal

  1. Remove front bumper. Refer to REMOVAL AND INSTALLATION
  2. Remove washer tank. Refer to REMOVAL AND INSTALLATION .
  3. Disconnect steering angle main control module connectors.

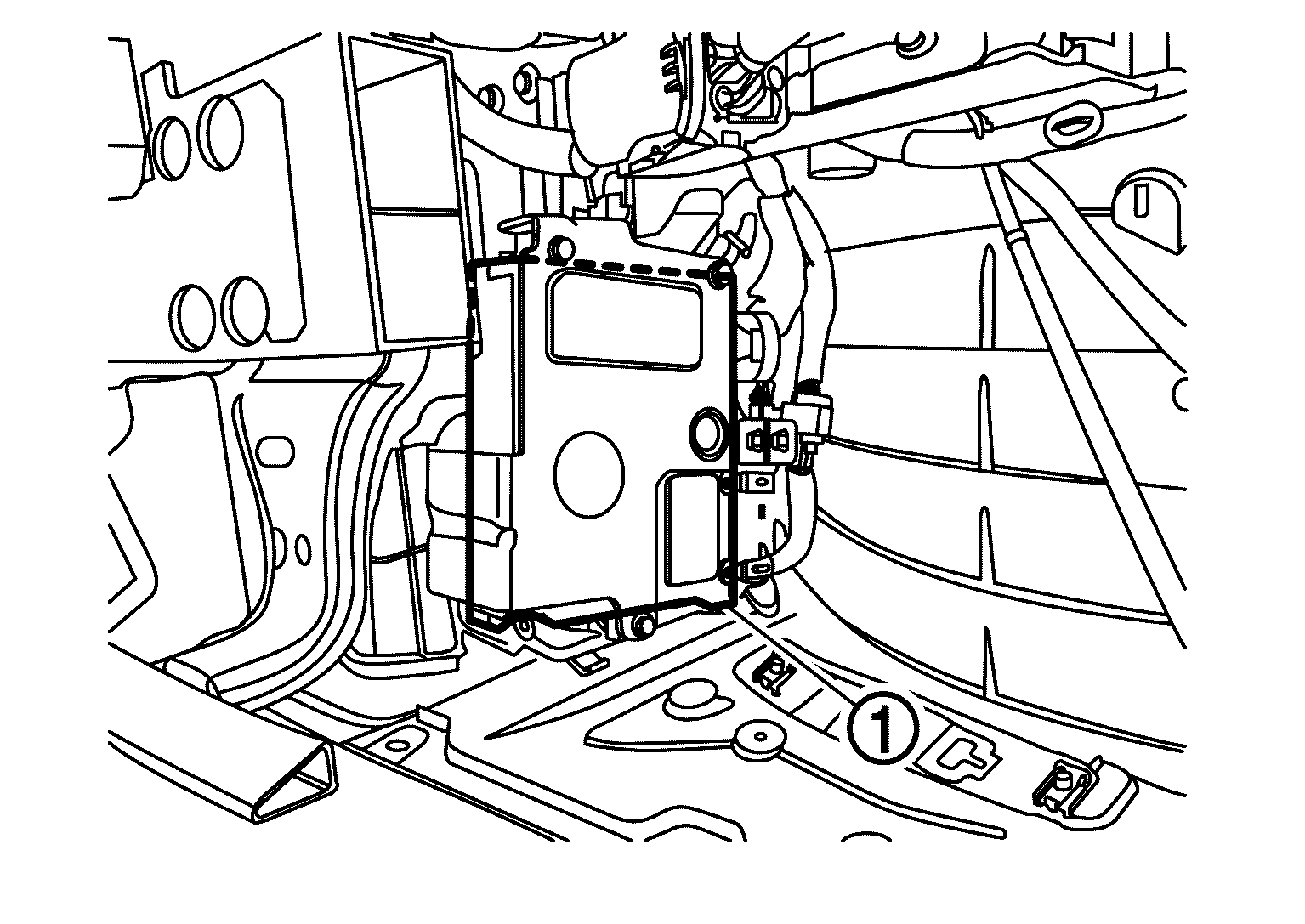

  4. Remove the bolts of steering angle main control module WHITE-1 .
    G09159427Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove the steering angle main control module.
    CAUTION:

    When replacing control module, replace the following control modules as a set.

    • Steering force control module
    • Steering angle main control module
    • Steering angle sub control module
