Removal And Installation: Removal

  1. Remove front bumper. Refer to REMOVAL AND INSTALLATION
  2. Disconnect steering angle sub control module connectors.

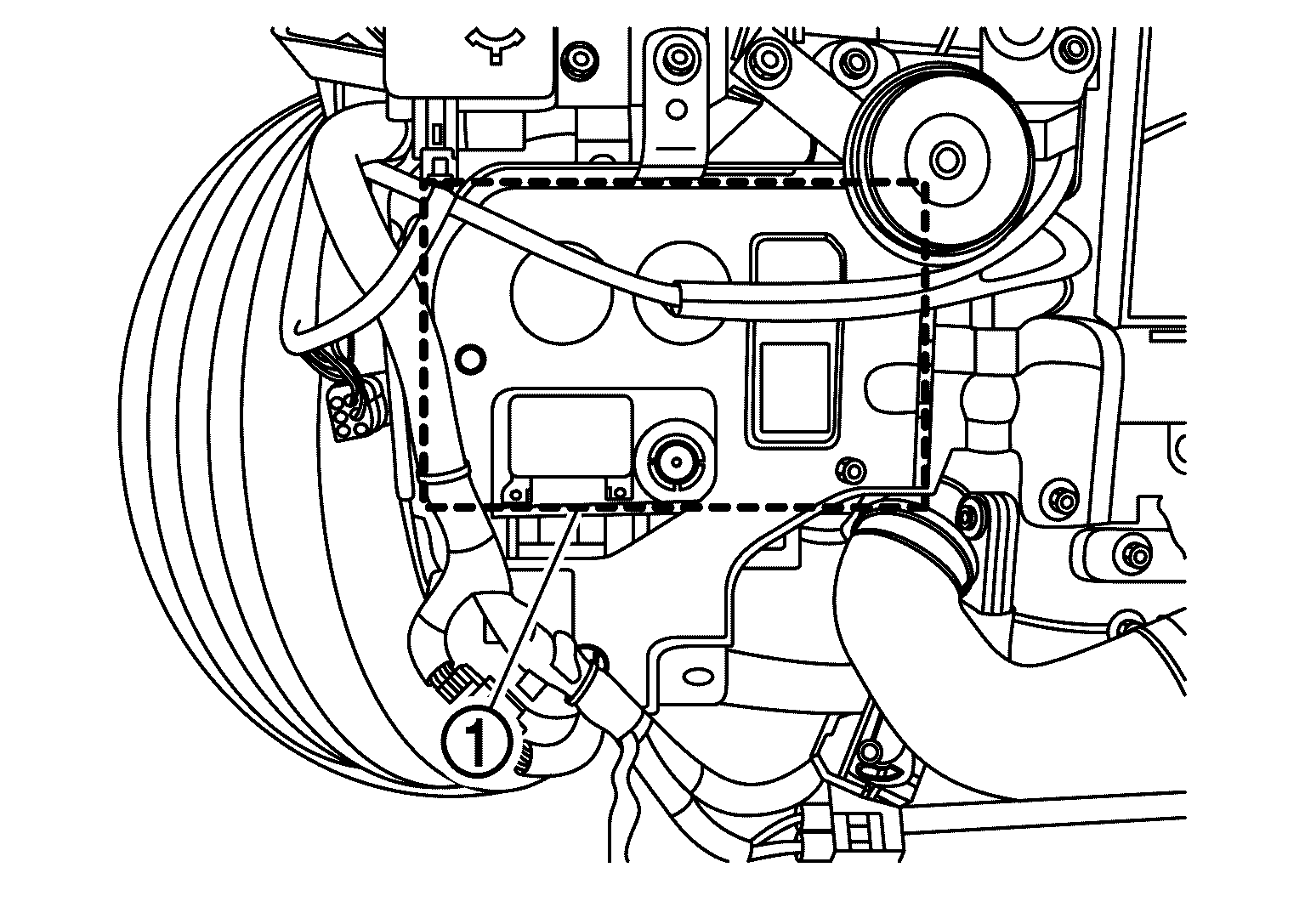

  3. Remove the bolts of steering angle sub control module WHITE-1 .
    G09159429Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the steering angle sub control module.
    CAUTION:

    When replacing control module, replace the following control modules as a set.

    • Steering force control module
    • Steering angle main control module
    • Steering angle sub control module
