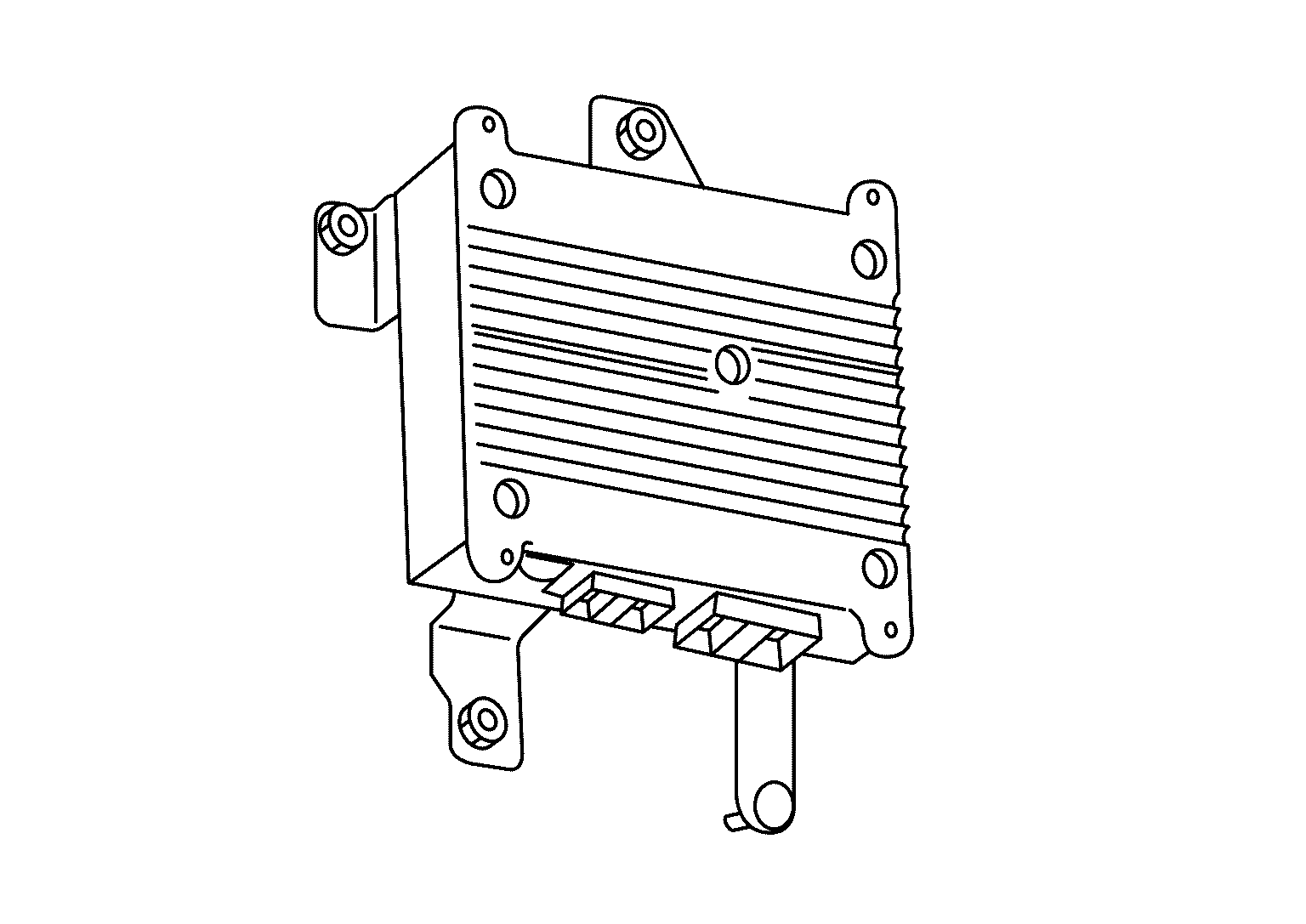

Sub Electric Oil Pump Inverter: Notes
- The Sub Electric Oil Pump inverter is composed of the controller, driver, power module, current sensors, and electronic substrate temperature sensor.
- Sub Electric Oil Pump Inverter controls Sub Electric Oil Pump according to Sub Electric Oil Pump oil pressure command signal transmitted from TCM via CAN communication.
- A malfunction signal is sent to TCM when Sub Electric Oil Pump system malfunctions.
