Transmission Range Switch

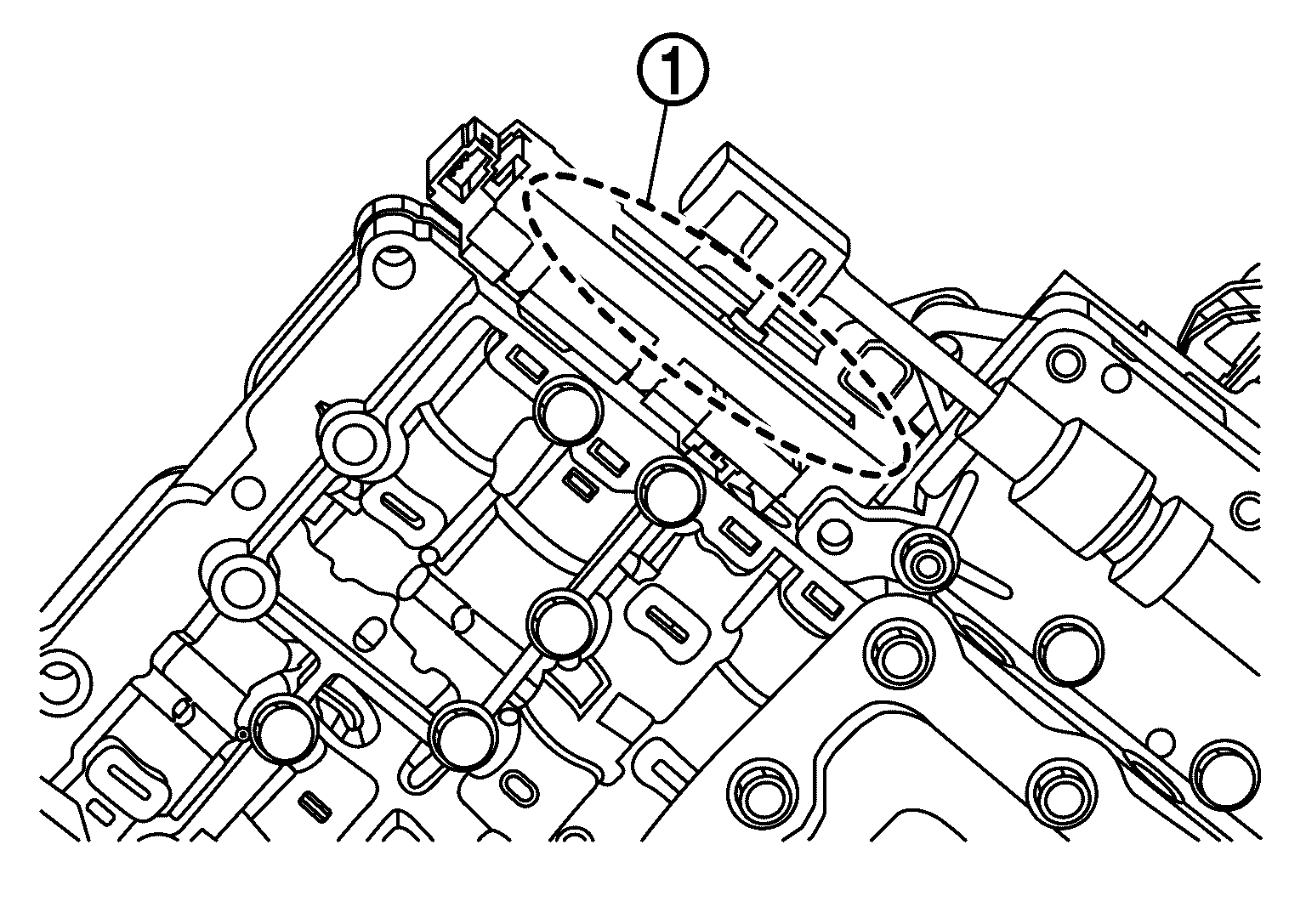

- The Transmission Range Switch
is installed to Control Valve Assembly.
- The Transmission Range Switch incorporates four contact switches. Each contact switch transmits an ON/OFF signal to the TCM.
- The TCM judges a select lever position from a combination of ON/OFF signals transmitted from each contact switch.
Select Lever Position Transmission Range Switch SW1 SW2 SW3 SW4 P OFF OFF OFF OFF R ON OFF OFF ON N ON ON OFF OFF D and M ON ON ON ON
