Exploded View With Torque Specifications

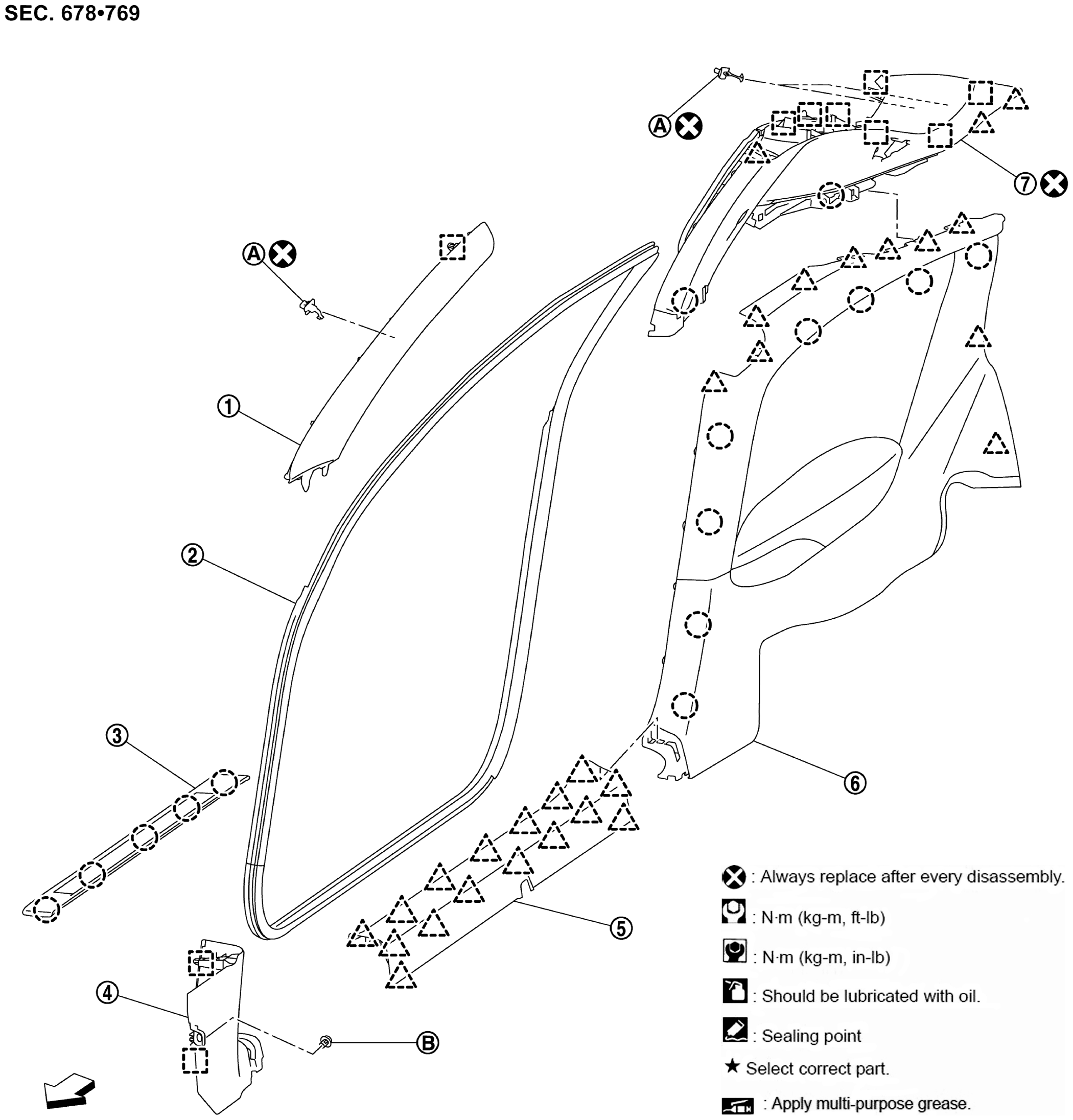

GNSJMJIB2165ZZ-165Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Front Pillar Garnish WHITE-2 Body Side Welt WHITE-3 Kicking Plate Outer
WHITE-4 Dash Side Finisher WHITE-5 Kicking Plate Inner WHITE-6 Rear Side Finisher
WHITE-7 Rear Pillar Finisher
MARU-A-W Anchor Clip MARU-B-W Dash Clip
MARU-H : Clip
SANKAKU-H : Pawl
SHIKAKU-H : Metal Clip
DISAS : Always replace after every disassembly.
ARROW : Vehicle Front
