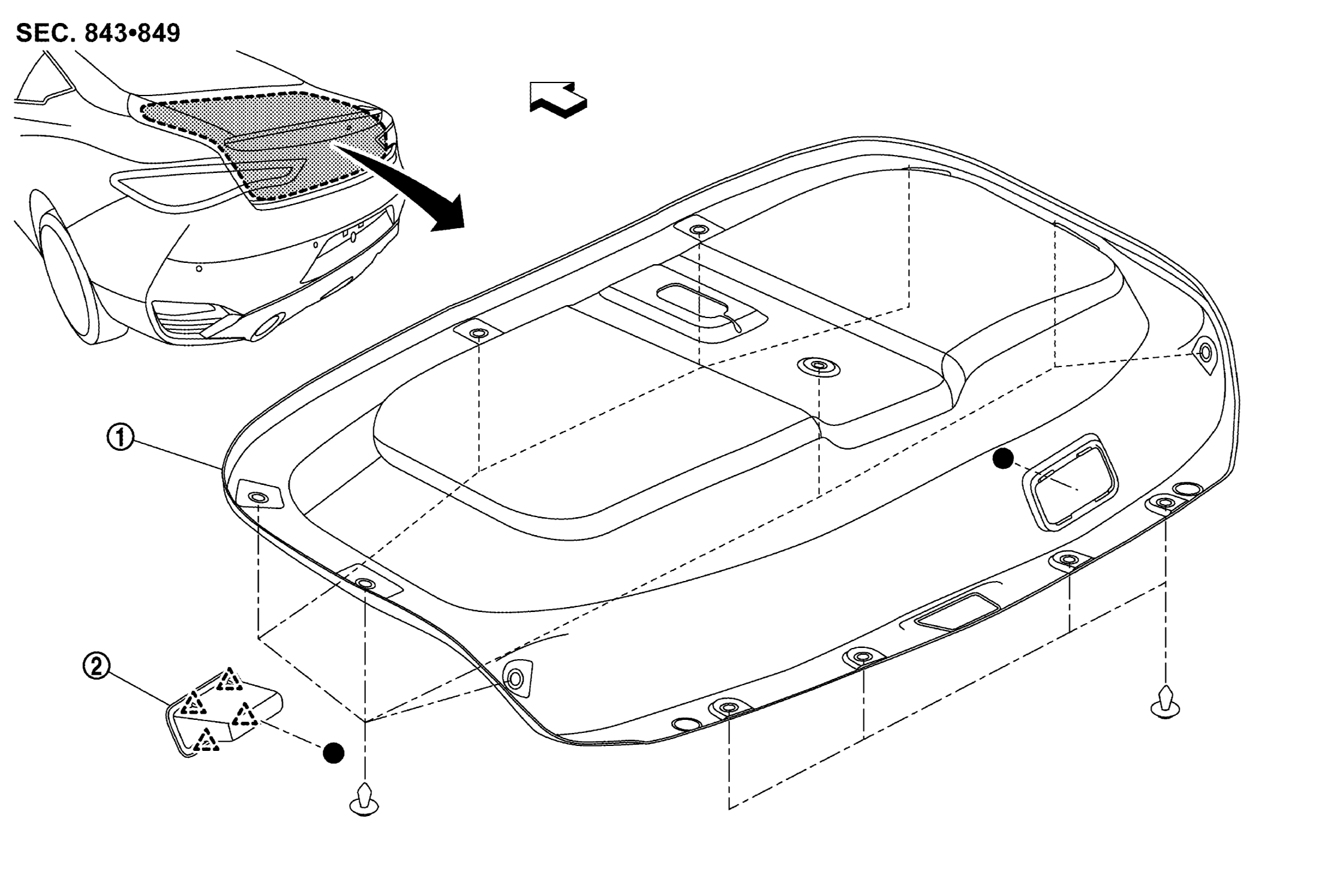

Exploded View With Torque Specifications

GNSJMJIB2196ZZ-196Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Trunk Lid Inner Finisher WHITE-2 Trunk Lid Pull Handle
SANKAKU-H : Pawl
ARROW : Vehicle Front
CIR-B : Indicates that the part is connected at points with same symbol in actual vehicle.
